Disassembly And Assembly: Disassembly

  1. Remove transfer cover. Refer to DISASSEMBLY AND ASSEMBLY .
  2. Remove ring gear shaft assembly. Refer to DISASSEMBLY AND ASSEMBLY .
  3. Remove drive pinion assembly. Refer to DISASSEMBLY AND ASSEMBLY .
  4. Remove O-ring from transfer case.
    CAUTION:
    • Never use a tool.
    • Never damage transfer case.
  5. Remove oil seals (1).

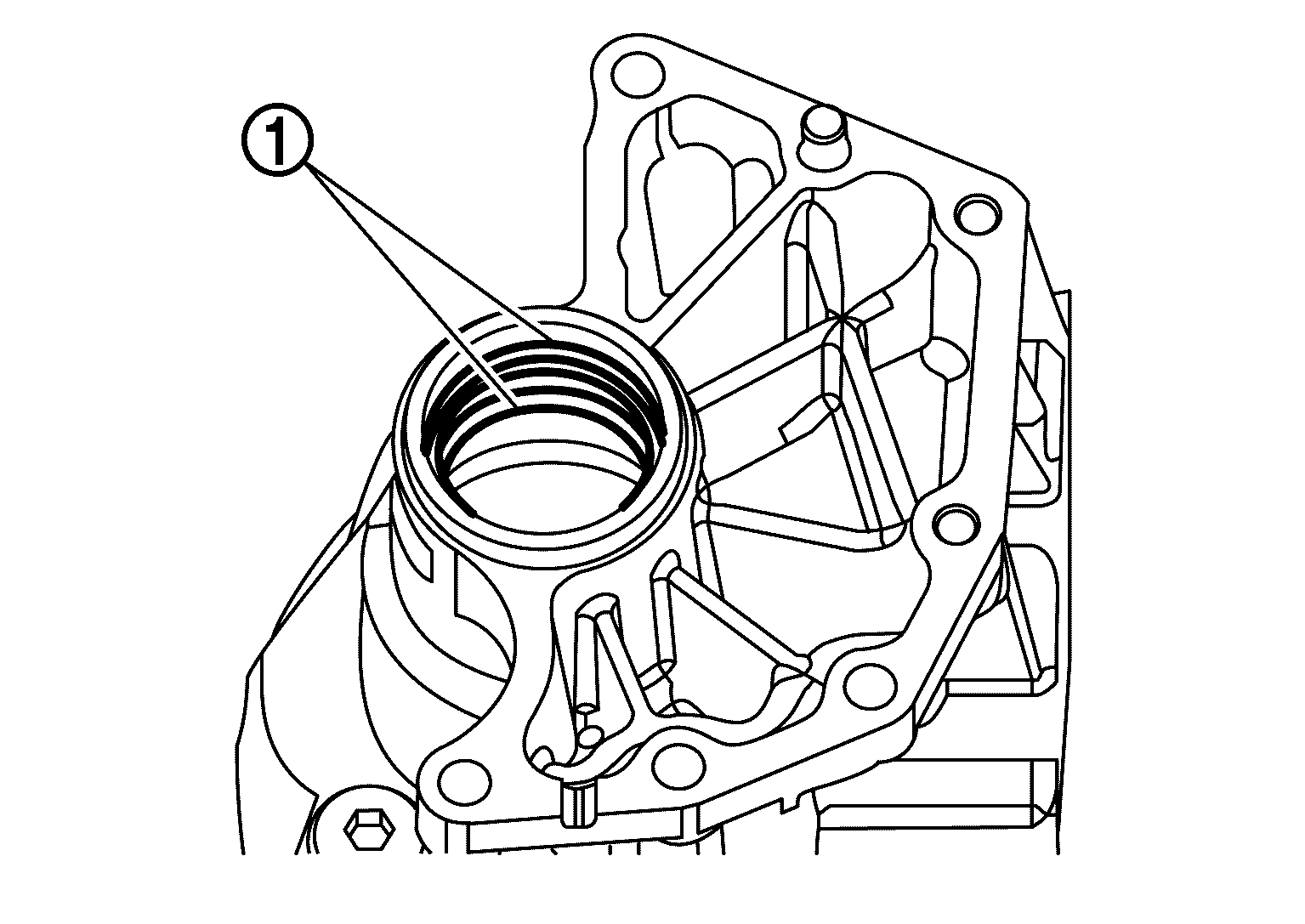

    Fig 1: Locating Oil Seals
    G08856156Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never damage transfer case.

  6. Remove baffle plate (1).
    Fig 2: Locating Baffle Plate
    G08856157Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the ring gear bearing adjusting shim (transfer case side) (1) and ring gear bearing outer race (transfer case side) (2) by tapping from the 2 cutouts (Arrows) on the transfer case.
    CAUTION:

    Never damage transfer case.

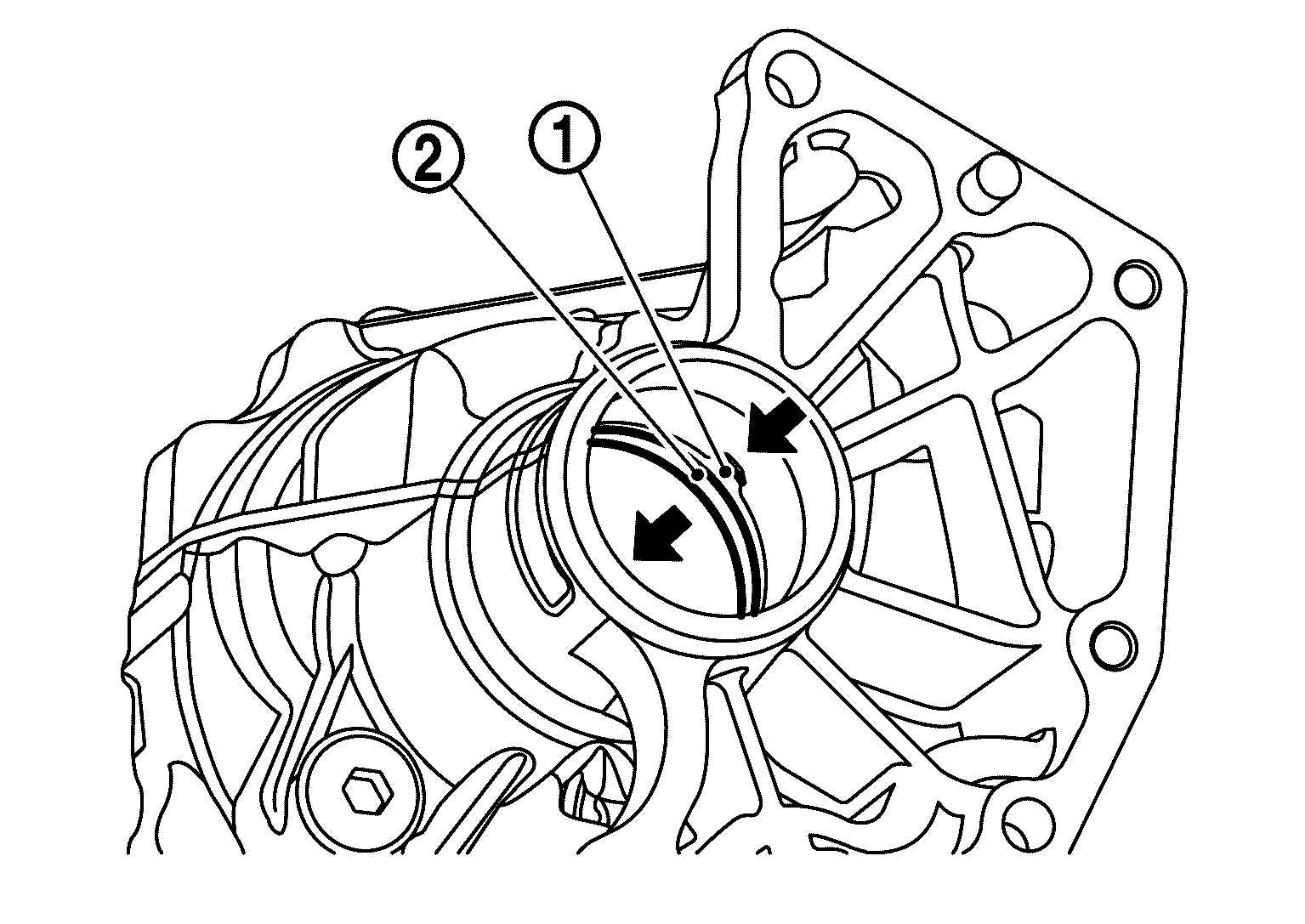

    Fig 3: Locating Cutouts On Transfer Case
    G08856158Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove plug and gasket.
  9. Perform inspection after disassembly. Refer to INSPECTION .
