System Diagram

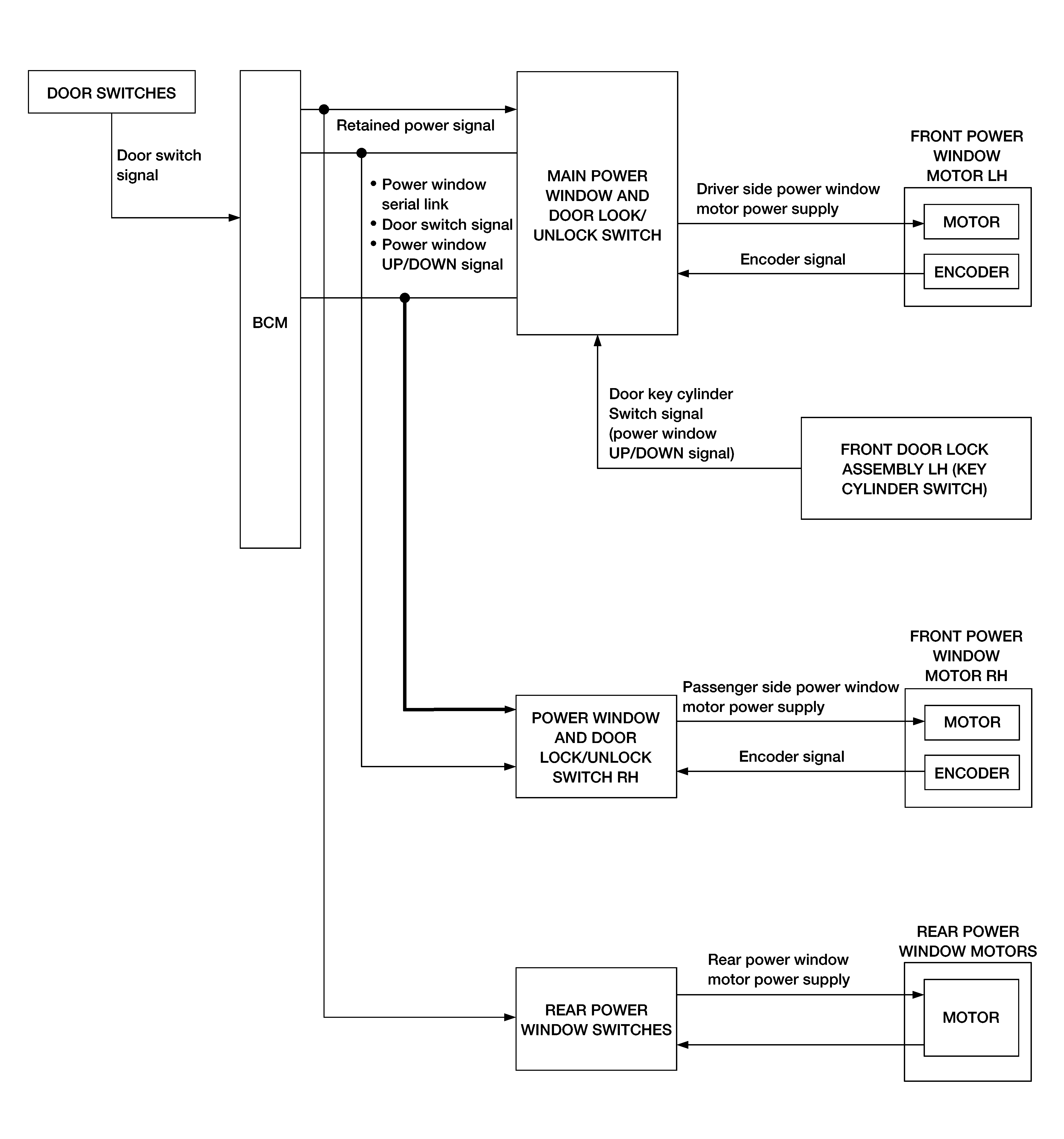

Fig 1: Power Window Control System Diagram

GNSALKIA3826GB-826

Courtesy of NISSAN NORTH AMERICA, INC.
