Exploded View With Torque Specifications: Removal

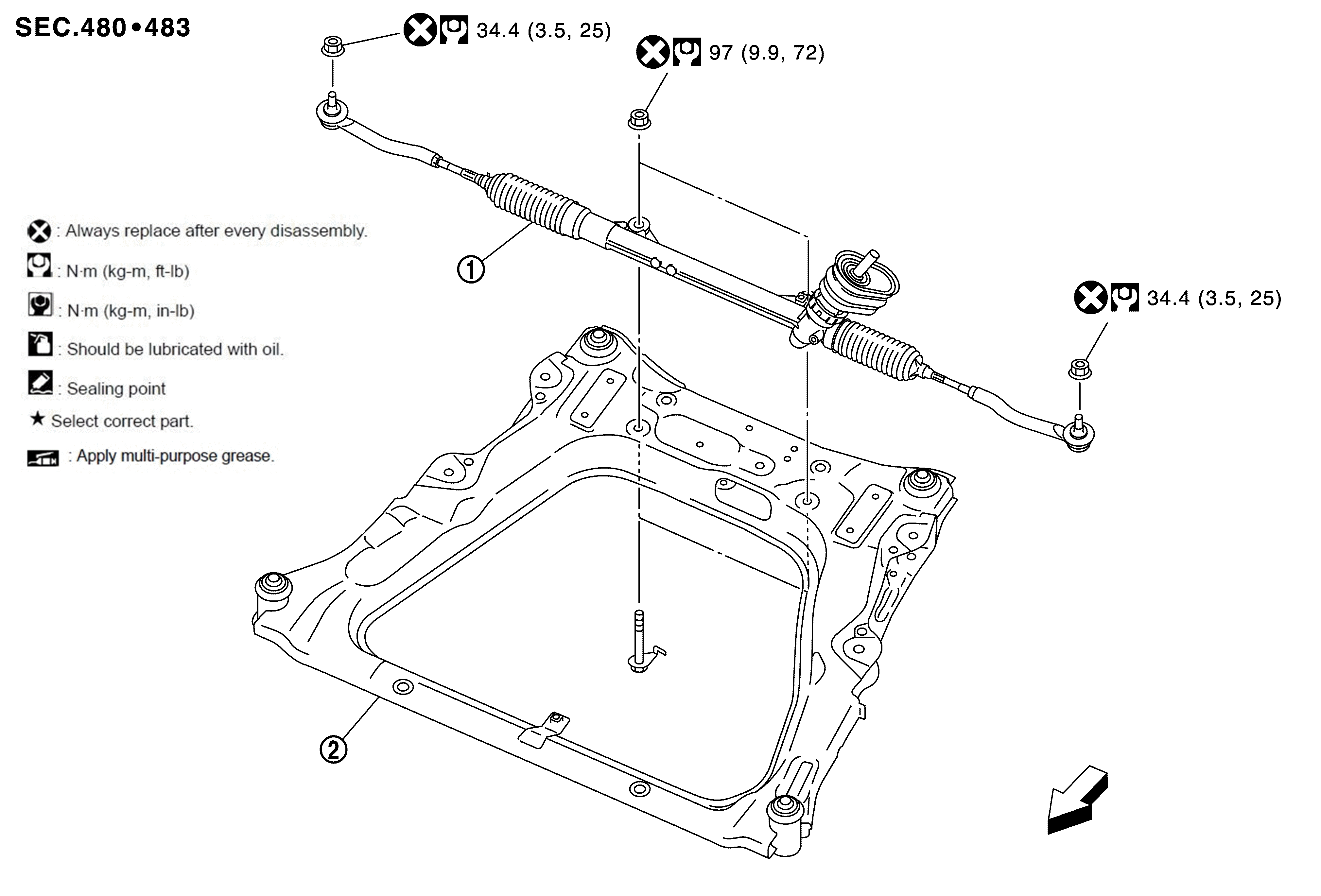

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSJPGIA0178GB-178Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering Gear Assembly 2. Front Suspension Member
Arrow: Vehicle front
