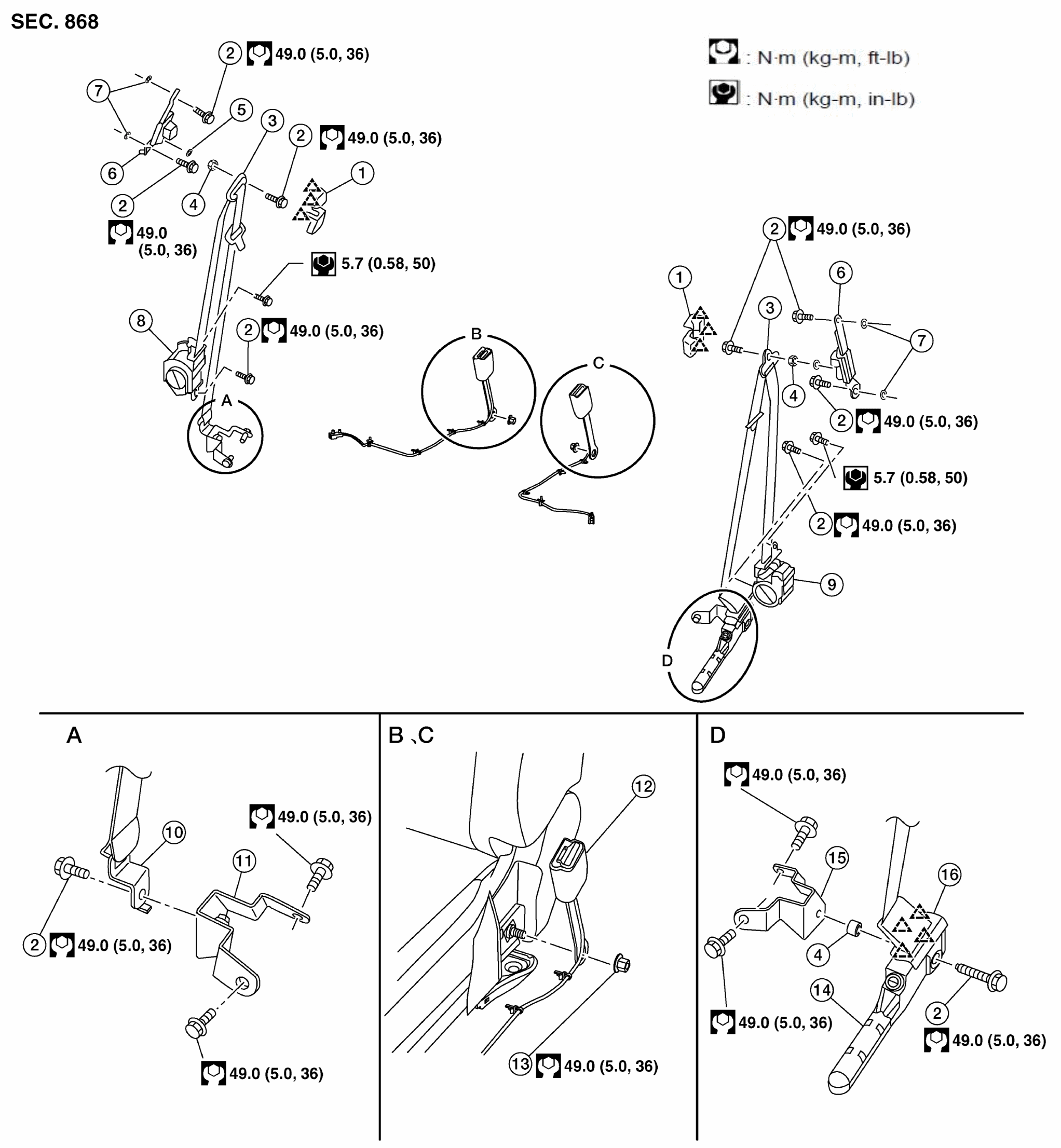

| 1. |
Height Adjuster Cover |
2. |
Anchor Bolt |
3. |
Shoulder Anchor |
| 4. |
Spacer |
5. |
Retaining Washer |
6. |
Seat Belt Height Adjuster |
| 7. |
Fiber Washer |
8. |
Seat Belt Pre-Tensioner Retractor (Passenger Side) |
9. |
Seat Belt Pre-Tensioner Retractor (Driver Side) |
| 10. |
Outer Anchor |
11. |
Joint Bracket Assembly (RH) |
12. |
Seat Belt Buckle |
| 13. |
Seat Belt Buckle Nut |
14. |
Lap Pre-Tensioner |
15. |
Joint Bracket Assembly (LH) |
| 16. |
Lap Pre-Tensioner Seat Belt Garnish |
A. |
Enlarged View Of Joint Bracket Assembly (RH) |
B. |
Enlarged View Of Front Seat Belt Buckle |
| C. |
Enlarged View Of Front Seat Belt Buckle |
D. |
Enlarged View Of Joint Bracket Assembly (LH) |
Δ |
Pawl |
