EV Control System - Introduction
>>
System Description
>>
System
>>
Air Conditioner Control
>>
System Description
>>
System Diagram
System Diagram

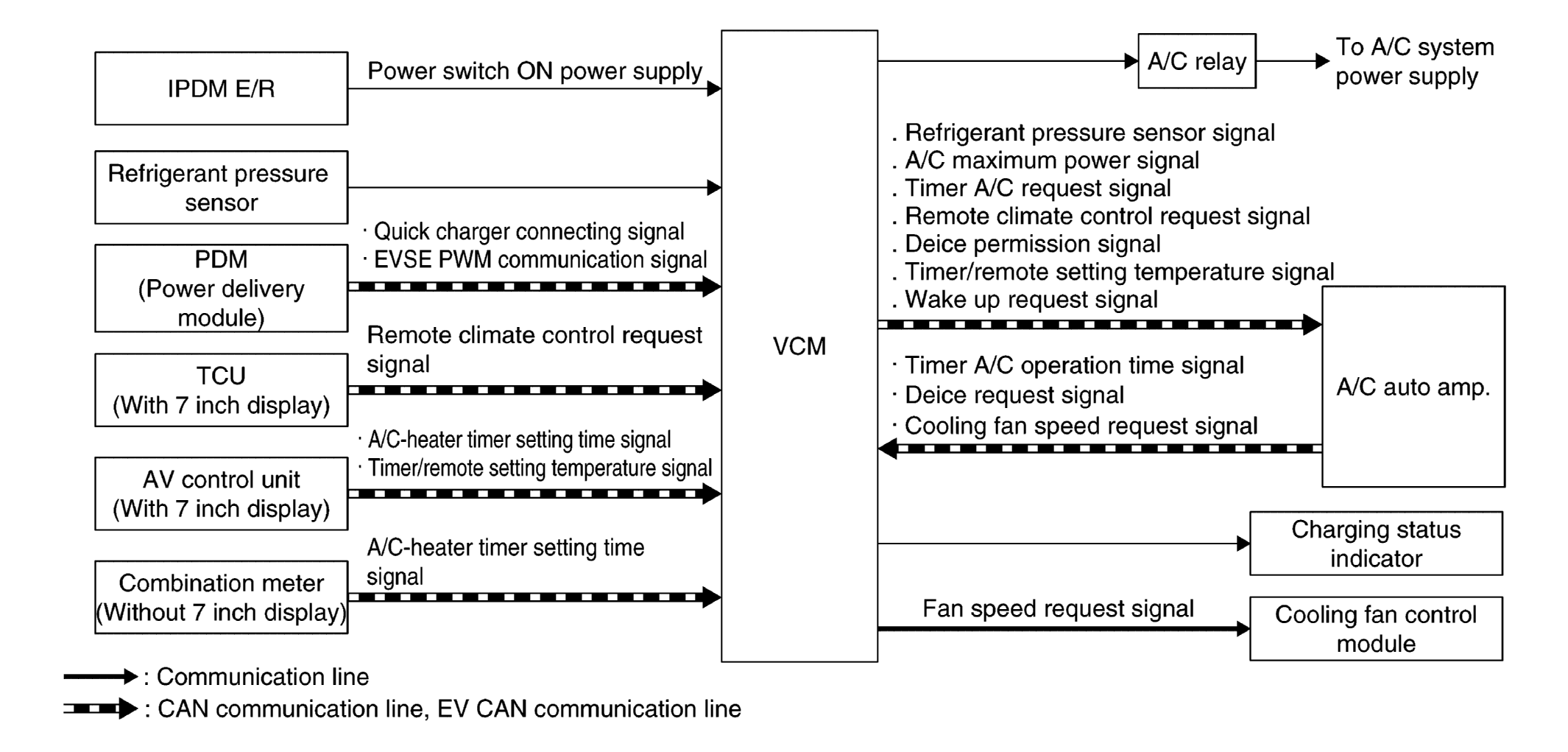

Fig 1: Air Conditioner Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
TCU is included only in models with TELEMATICS system.
