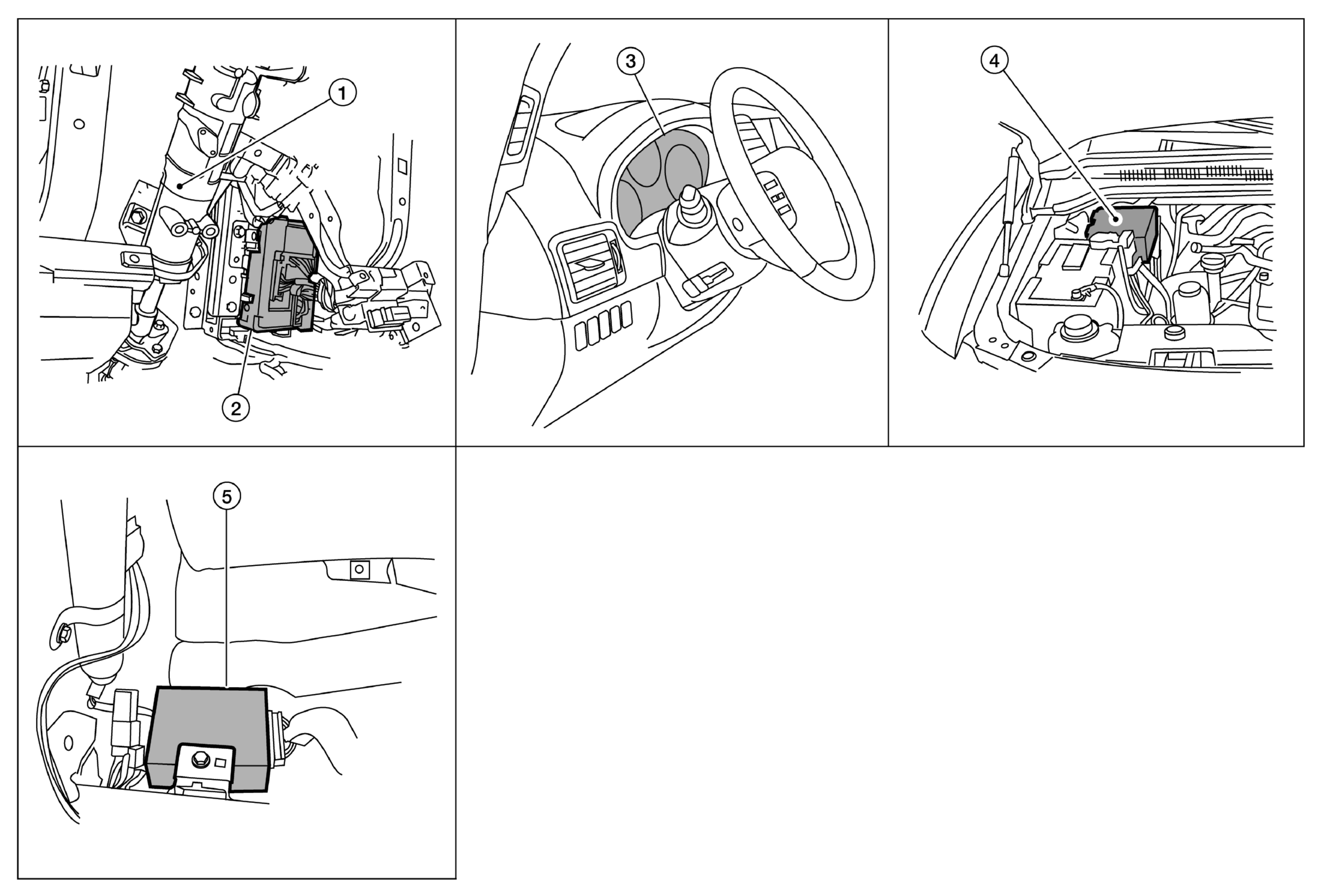

Component Parts Location
WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Steering Column (View With Instrument Panel Removed) |
2. |
BCM M18, M19, M20 |
3. |
Combination Meter M24 |
| 4. |
IPDM E/R |
5. |
Intelligent Key Unit M70 (With Intelligent Key) (View With Instrument Panel Removed) |
|
|
