Av Communication System

WARNING: This page is about a different car, the 2014 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

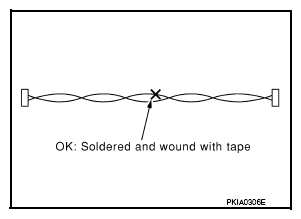

Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in).]

Fig 1: Identifying Soldered And Taped Repaired Area
Courtesy of NISSAN NORTH AMERICA, INC.

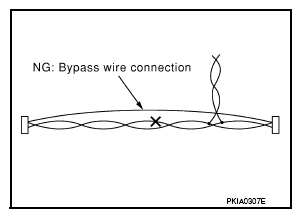

Do not perform bypass wire connections for the repair parts. (The spliced wire will become separated and the characteristics of twisted line will be lost.)

Fig 2: Caution For Bypass Wire Connections
Courtesy of NISSAN NORTH AMERICA, INC.
