Exploded View With Torque Specifications

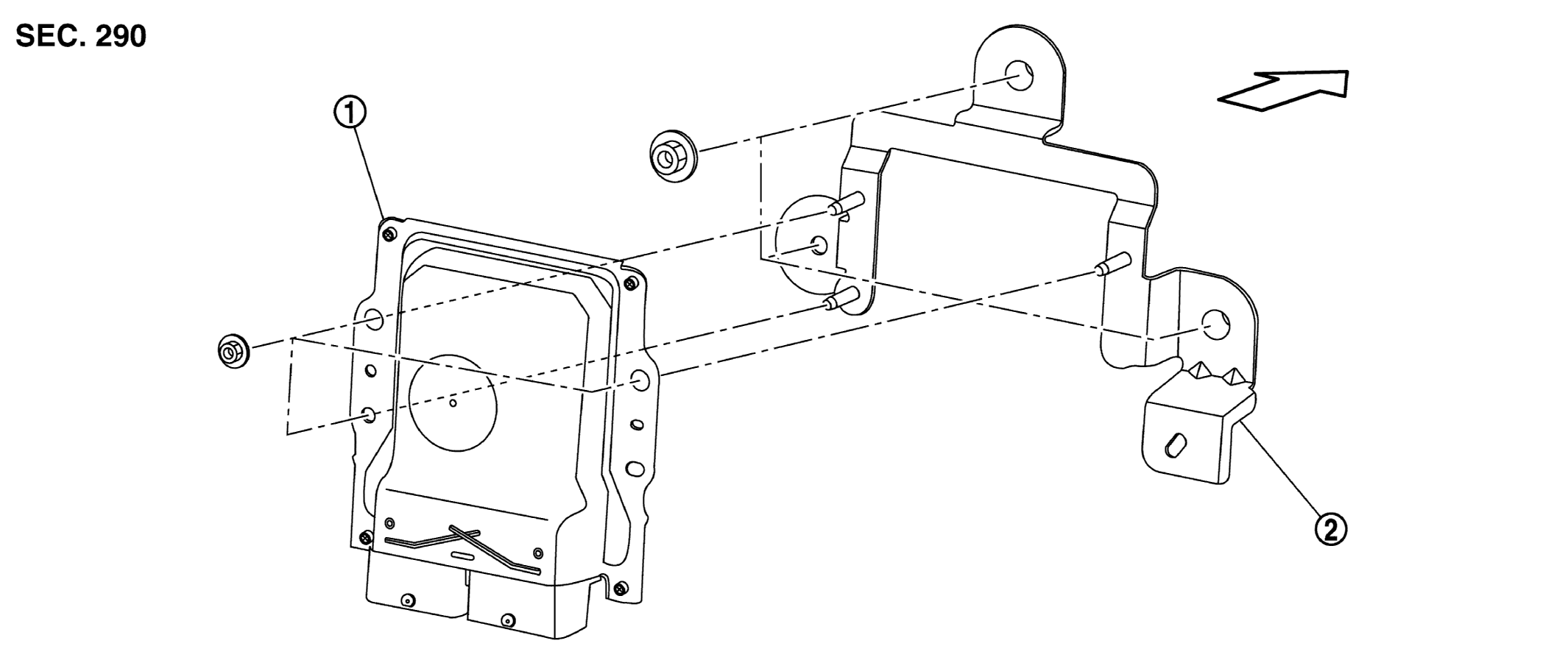

Fig 1: Exploded View Of VCM

GNSJSCIA1109ZZ-109

Courtesy of NISSAN NORTH AMERICA, INC.

1.	VCM	2.	VCM Bracket
Arrow	Vehicle Front
