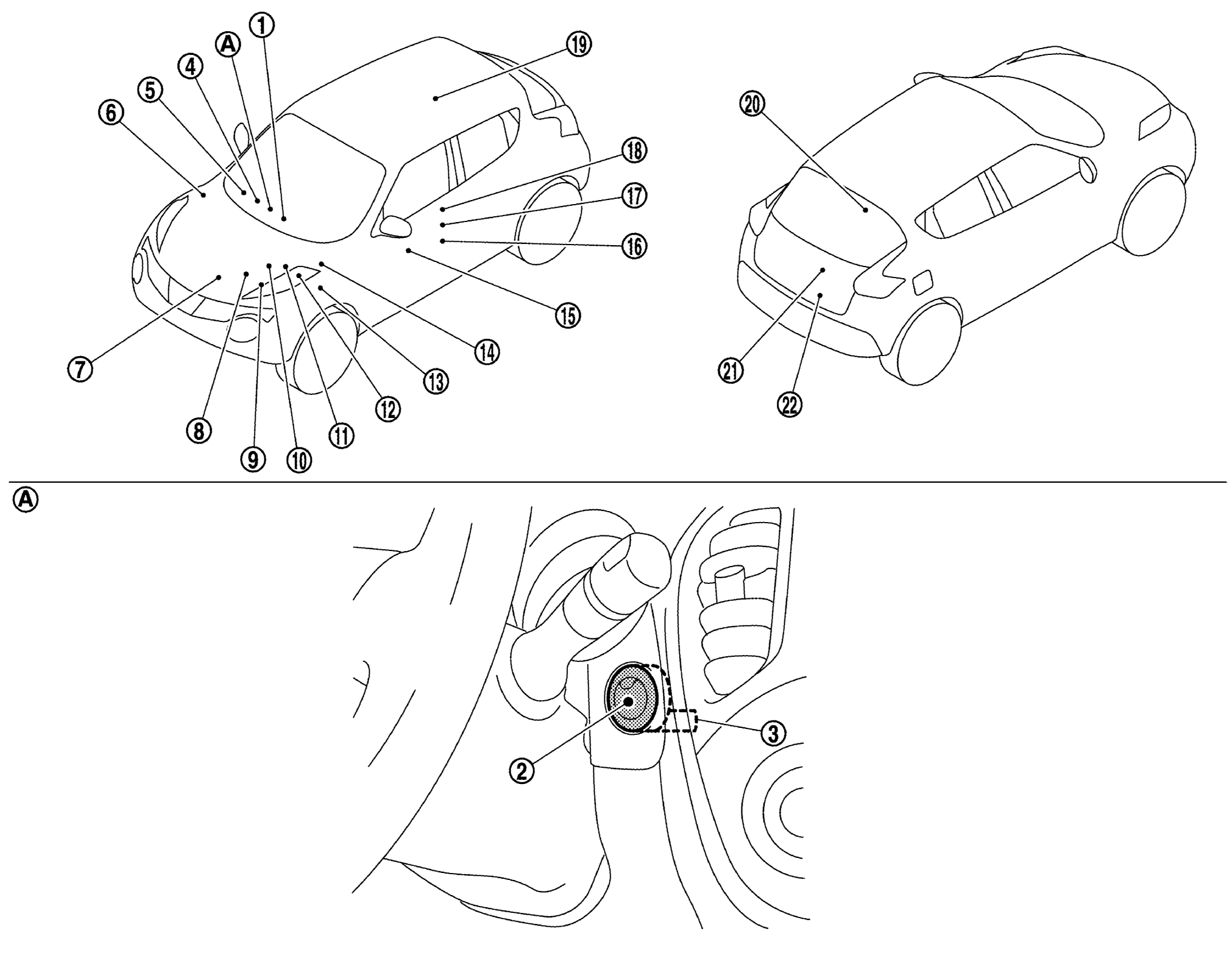

Component Parts Location
| 1. | Combination Meter Refer to COMPONENT PARTS LOCATION . |
2. | Push-Button Ignition Switch | 3. | NATS Antenna Amp. |
| 4. | Inside Key Antenna (Instrument Center) Refer to COMPONENT PARTS LOCATION . |
5. | Remote Keyless Entry Receiver Refer to COMPONENT PARTS LOCATION . |
6. | ABS Actuator And Electric Unit (Control Unit) Refer to COMPONENT PARTS LOCATION . |
| 7. | Park/Neutral Position Switch (M/T Models) Refer to COMPONENT PARTS LOCATION . |
8. | Transmission Range Switch (CVT Models) Refer to COMPONENT PARTS LOCATION . |
9. | ECM Refer to COMPONENT PARTS LOCATION . |
| 10. | IPDM E/R Refer to COMPONENT PARTS LOCATION . |
11. | TCM (CVT models) Refer to COMPONENT PARTS LOCATION . |
12. | Stop Lamp Switch Refer to COMPONENT PARTS LOCATION . |
| 13. | Clutch Interlock Switch (M/T Models) Refer to COMPONENT PARTS LOCATION . |
14. | BCM Refer to COMPONENT PARTS LOCATION . |
15. | Power Window Main Switch (Door Lock And Unlock Switch) |
| 16. | Front Door Switch (Driver Side) | 17. | Front Door Lock Assembly (Door Key Cylinder Switch) | 18. | Front Door Request Switch (Driver Side) |
| 19. | Inside Key Antenna (Console) Refer to COMPONENT PARTS LOCATION . |
20. | Inside Key Antenna (Luggage Room) Refer to COMPONENT PARTS LOCATION . |
21. | Back Door Request Switch |
| 22. | Back Door Opener Assembly (Back Door Switch) | ||||
| (A) | Behind Push-Button Ignition Switch |
