Exploded View With Torque Specifications

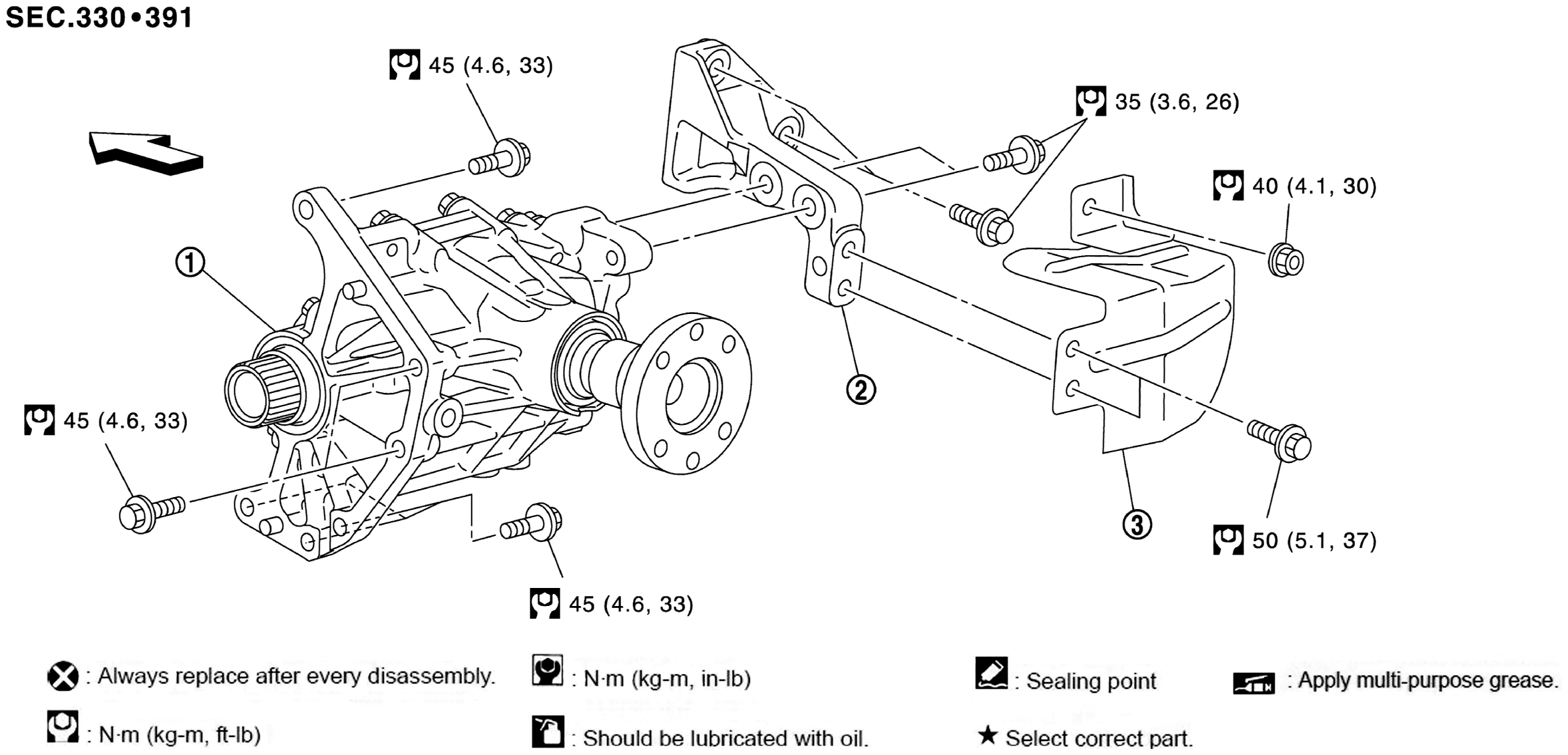

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transfer Assembly

2.

Transfer Gusset

3.

Heat Insulator

Arrow

Vehicle Front
