Exploded View With Torque Specifications

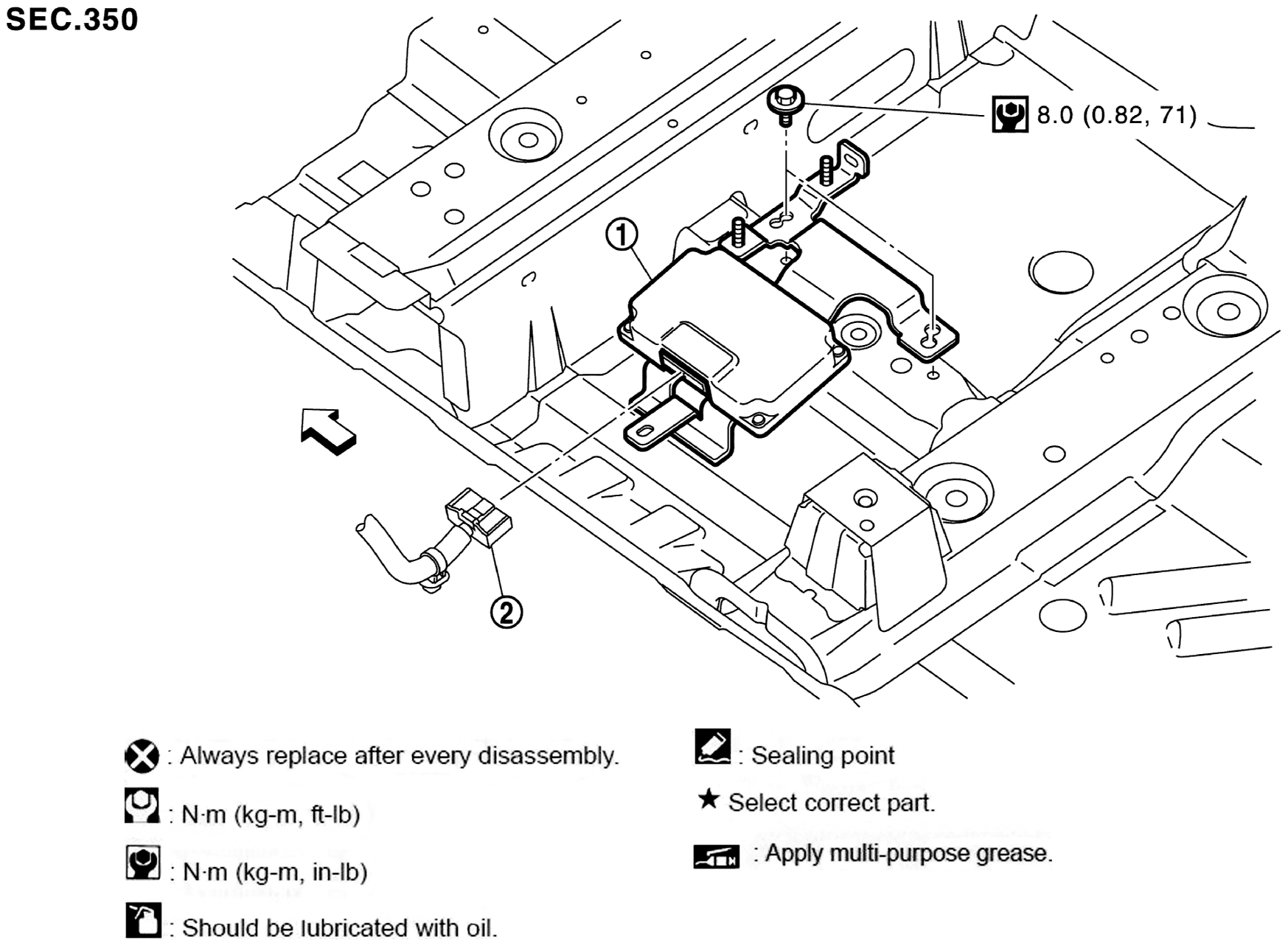

Fig 1: Exploded View Of AWD Control Module With Torque Specifications
GNSJSDIA2374GB-374Courtesy of NISSAN NORTH AMERICA, INC.
1. AWD Control Module 2. AWD Control Module Harness Connector
Arrow Front
