Exploded View With Torque Specifications: Removal

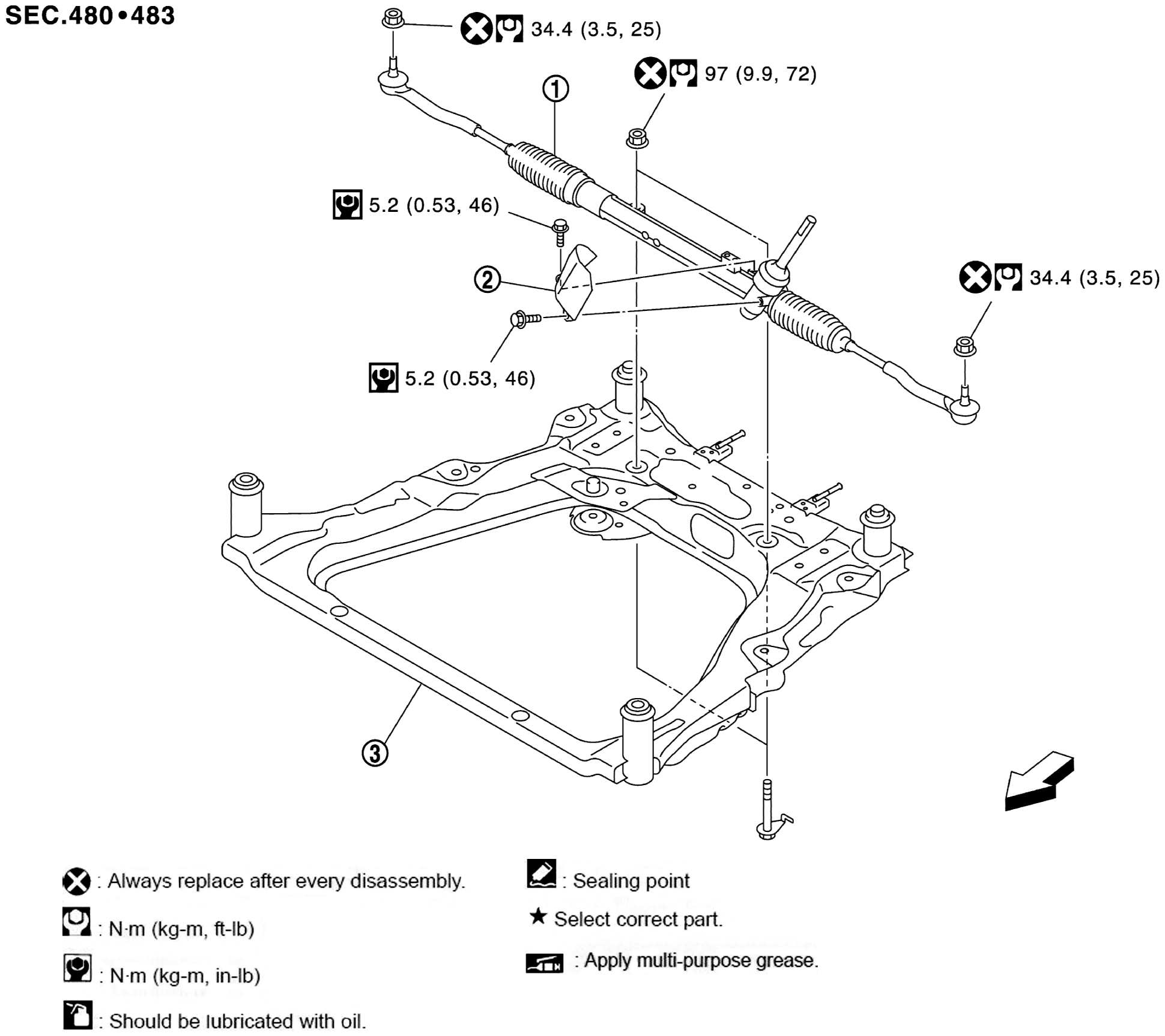

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering Gear Assembly	2.	Heat Insulator *	3.	Front Suspension Member
Arrow	Vehicle Front
* : The placement of this part depends on production timing. Reinstallation is not required after removal.
