Exploded View With Torque Specifications: Disassembly

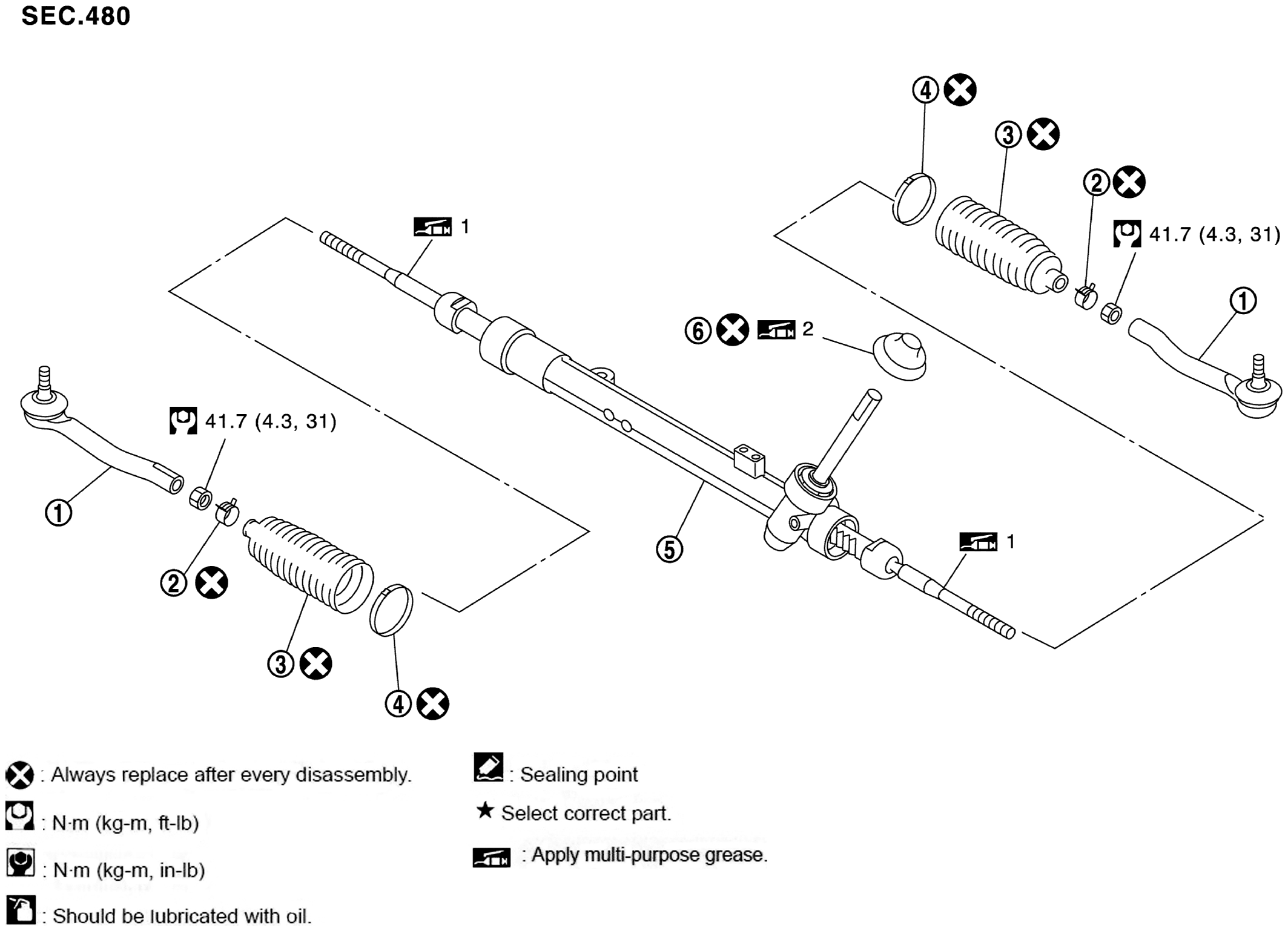

Fig 1: DISASSEMBLED VIEW OF STEERING GEAR AND LINKAGE WITH TORQUE SPECIFICATIONS

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Boot clamp (small diameter)	3.	Boot
4.	Boot clamp (large diameter)	5.	Gear housing assembly	6.	Dust cover
