Juke S, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Except NISMO RS - Introduction)
>>
System Description
>>
System
>>
Thermal Management Control
>>
System Diagram
System Diagram

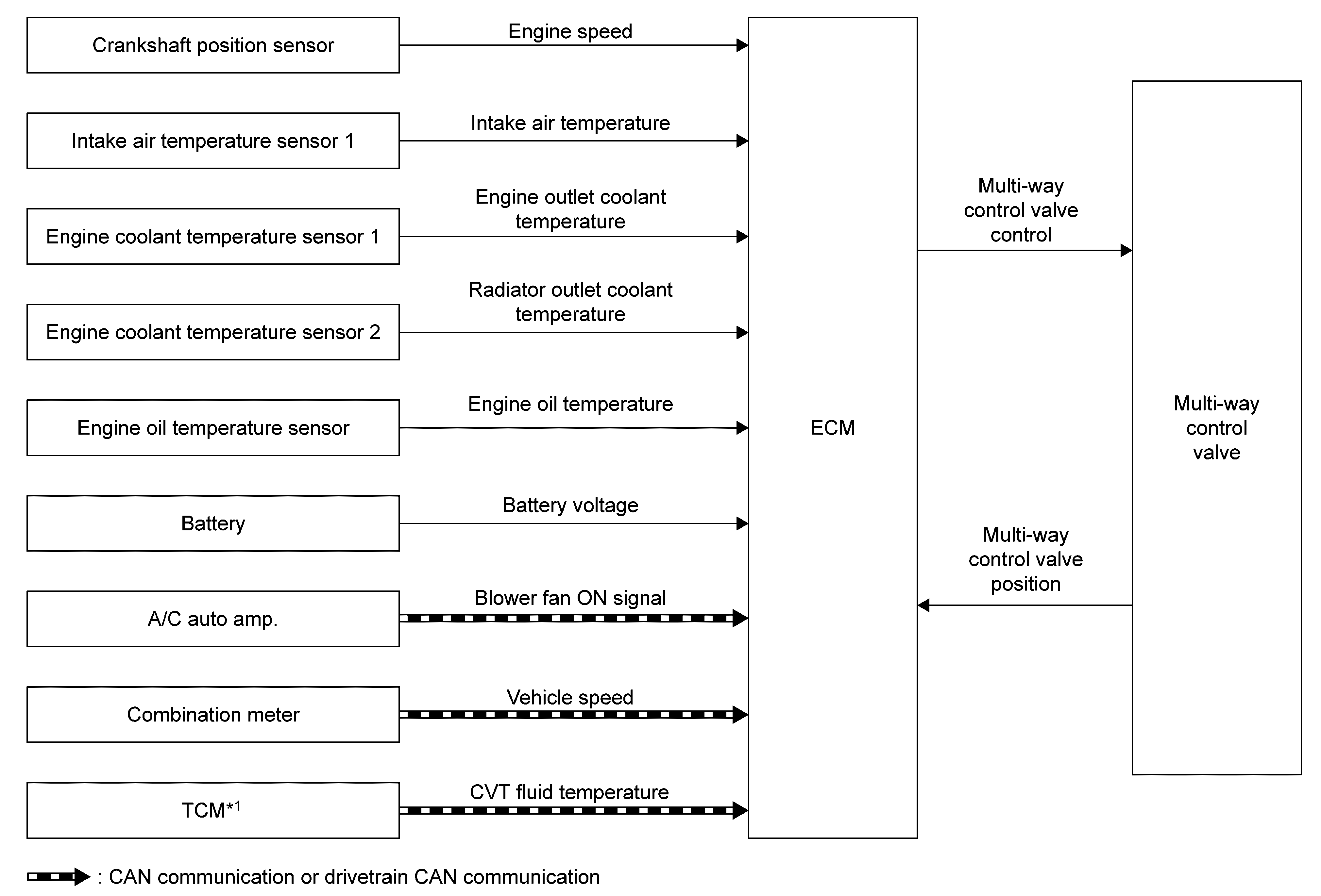

Fig 1: Thermal Management Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
* 1: For CVT models
Courtesy of NISSAN NORTH AMERICA, INC.
