Exploded View With Torque Specifications: Components

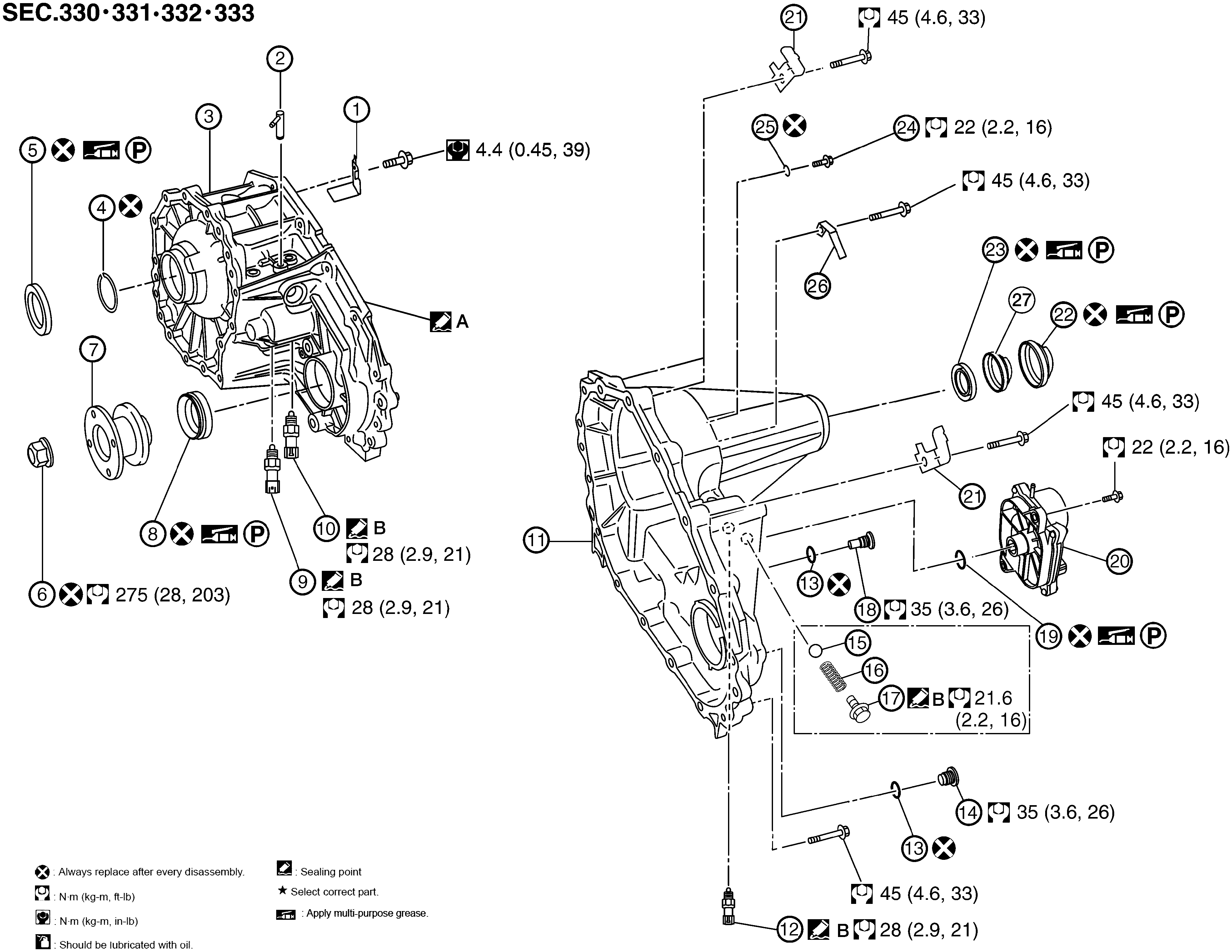

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Baffle Plate	2.	Breather Tube	3.	Front Case
4.	Snap Ring	5.	Input Oil Seal	6.	Self-Lock Nut
7.	Companion Flange	8.	Front Oil Seal	9.	4LO Switch (Gray With Green Paint)
10.	ATP Switch (Black)	11.	Rear Case	12.	Wait Detection Switch (Gray)
13.	Gasket	14.	Filler Plug	15.	Check Ball (M/T Models Only)
16.	Check Shift Spring (M/T Models Only)	17.	Check Plug (M/T Models Only)	18.	Drain Plug
19.	O-Ring	20.	Transfer Control Device	21.	Harness Bracket
22.	Dust Cover	23.	Rear Oil Seal	24	Retainer Bolt
25.	Gasket	26.	Air Breather Hose Clamp	27.	Oil Cover
A.	Apply Genuine Anaerobic Liquid Gasket or equivalent.	B.	Apply Genuine Silicone RTV or equivalent.

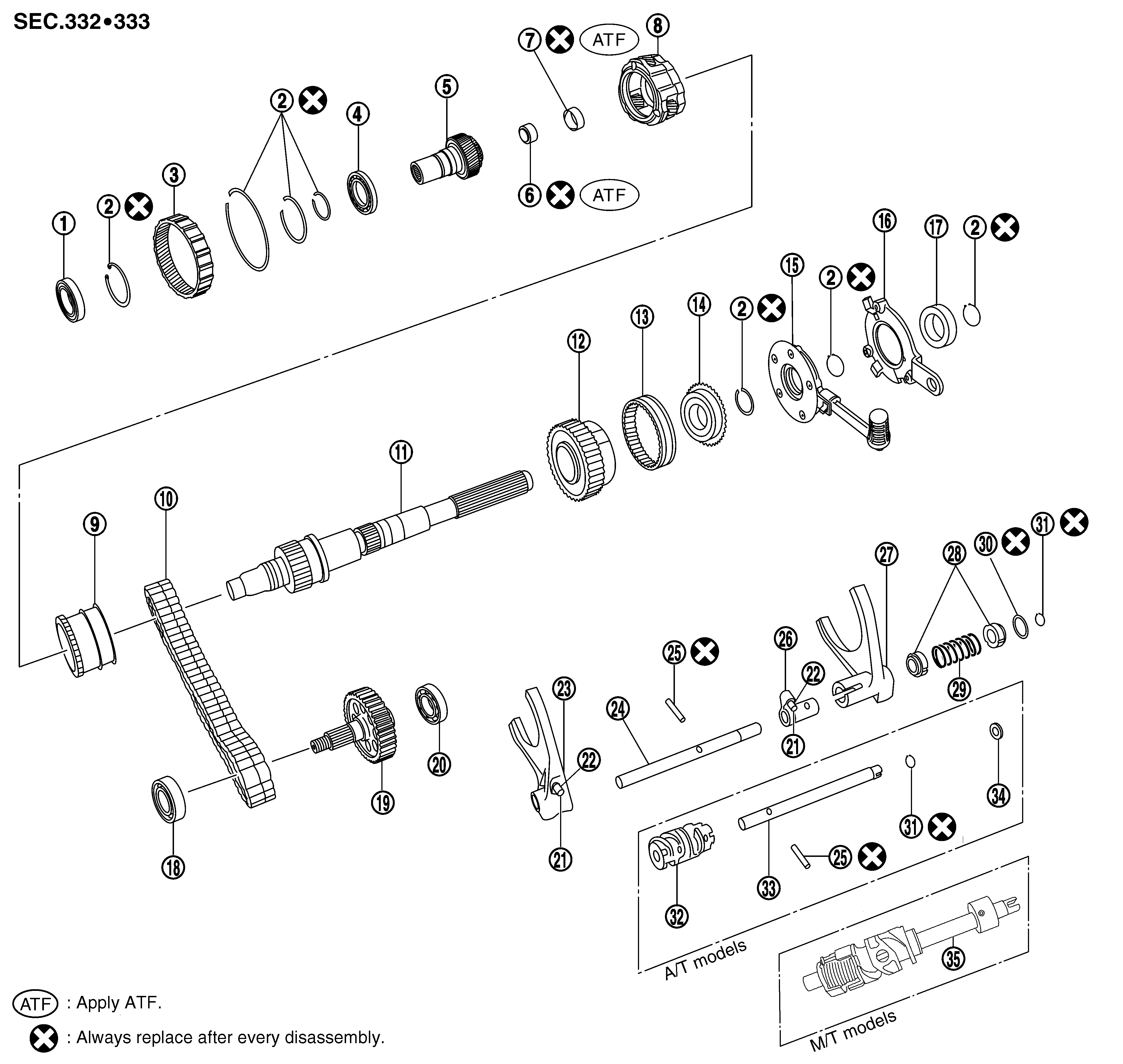

Fig 2: Exploded View Of Transfer Assembly With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Input Bearing	2.	Snap Ring	3.	Internal Gear
4.	Carrier Bearing	5.	Sun Gear	6.	Needle Bearing
7.	Metal Bushing	8.	Planetary Carrier Assembly	9.	L-H Sleeve
10.	Drive Chain	11.	Mainshaft	12.	Sprocket
13.	2-4 Sleeve	14.	Clutch Gear	15.	Oil Pump Assembly
16.	Retainer	17.	Mainshaft Rear Bearing	18.	Front Bearing
19.	Front Drive Shaft	20.	Rear Bearing	21.	Clevis Pin
22.	Shift Collar	23.	L-H Shift Fork	24.	L-H Shift Rod
25.	Retaining Pin	26.	2-4 Shift Bracket	27.	2-4 Shift Fork
28.	Fork Guide Collar	29.	2-4 Shift Fork Spring	30.	Retaining Ring
31.	Snap Ring	32.	Drum Cam	33.	Control Shift Rod
34.	Spacer	35.	Control Shift Rod Assembly
