Exploded View With Torque Specifications

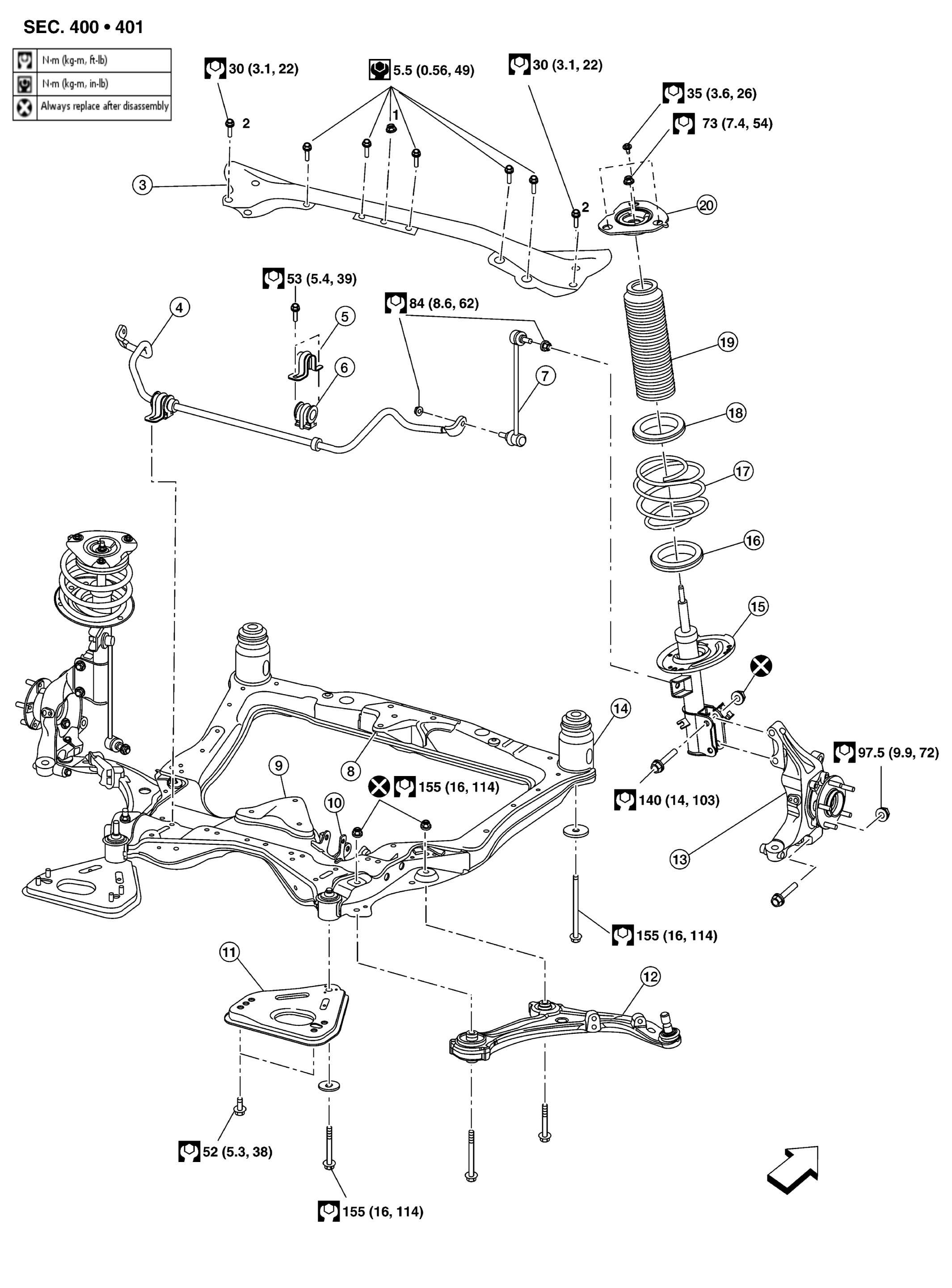

Fig 1: Exploded View Of Front Suspension Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1-2.	Tightening order for nut and bolts	3.	Strut tower bar	4.	Stabilizer bar
5.	Stabilizer clamp	6.	Stabilizer bushing	7.	Stabilizer connecting rod
8.	VQ35DE front mount bracket	9.	VQ35DE rear mount bracket	10.	QR25DE mount bracket
11.	Front suspension member stay	12.	Transverse link	13.	Steering knuckle
14.	Front suspension member	15.	Strut	16.	Lower rubber seat
17.	Front coil spring	18.	Upper rubber seat	19.	Dust cover
20.	Strut mount insulator		Front
