Exploded View With Torque Specifications

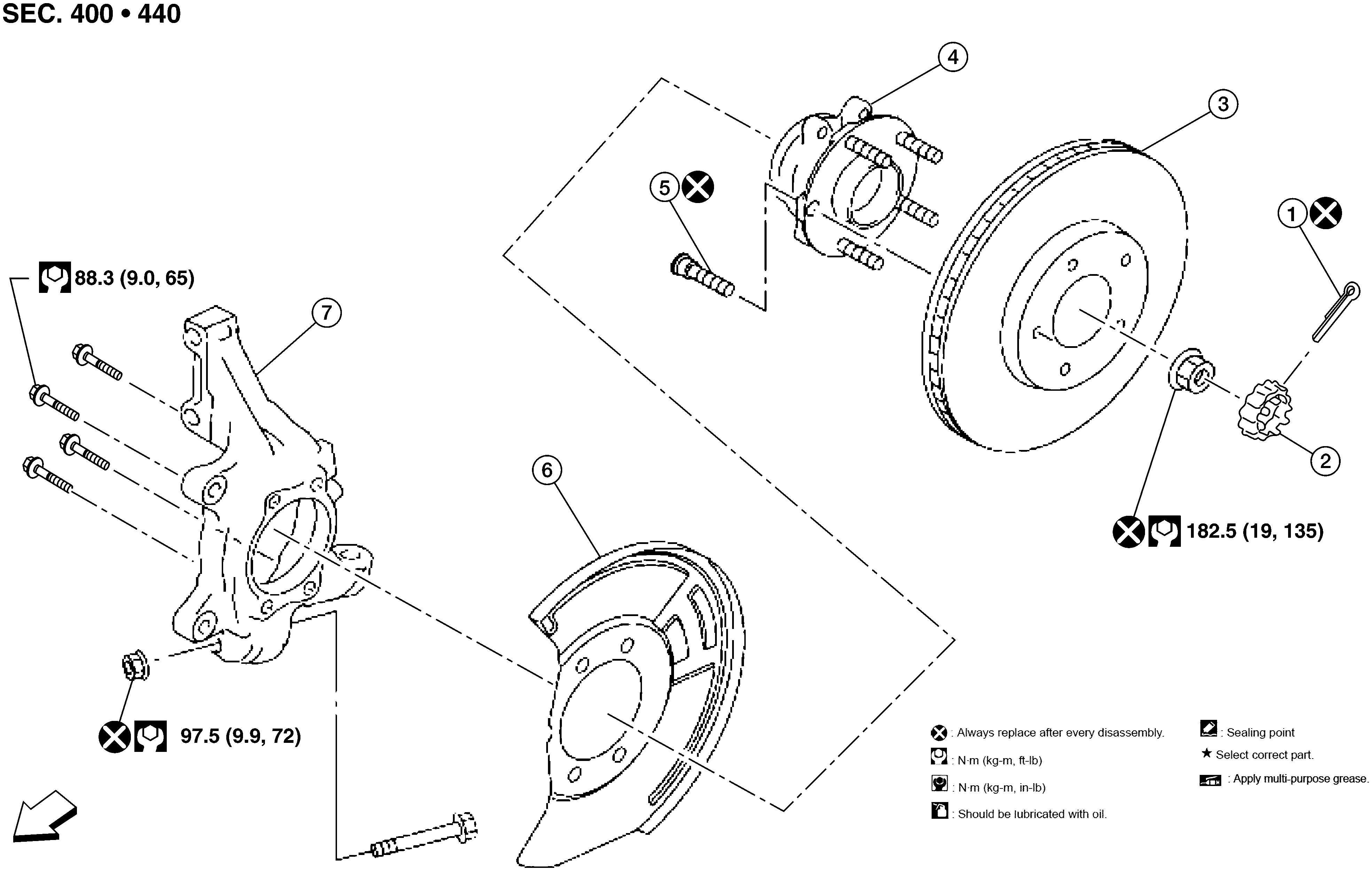

Fig 1: Exploded View Of Steering Knuckle With Torque Specifications
GNSAWEIA0264ZZ-264Courtesy of NISSAN NORTH AMERICA, INC.
1. Cotter pin 2. Nut retainer 3. Rotor
4. Wheel hub and bearing assembly 5. Wheel hub bolt 6. Splash guard
7. Steering knuckle   Front
