Component Parts Location

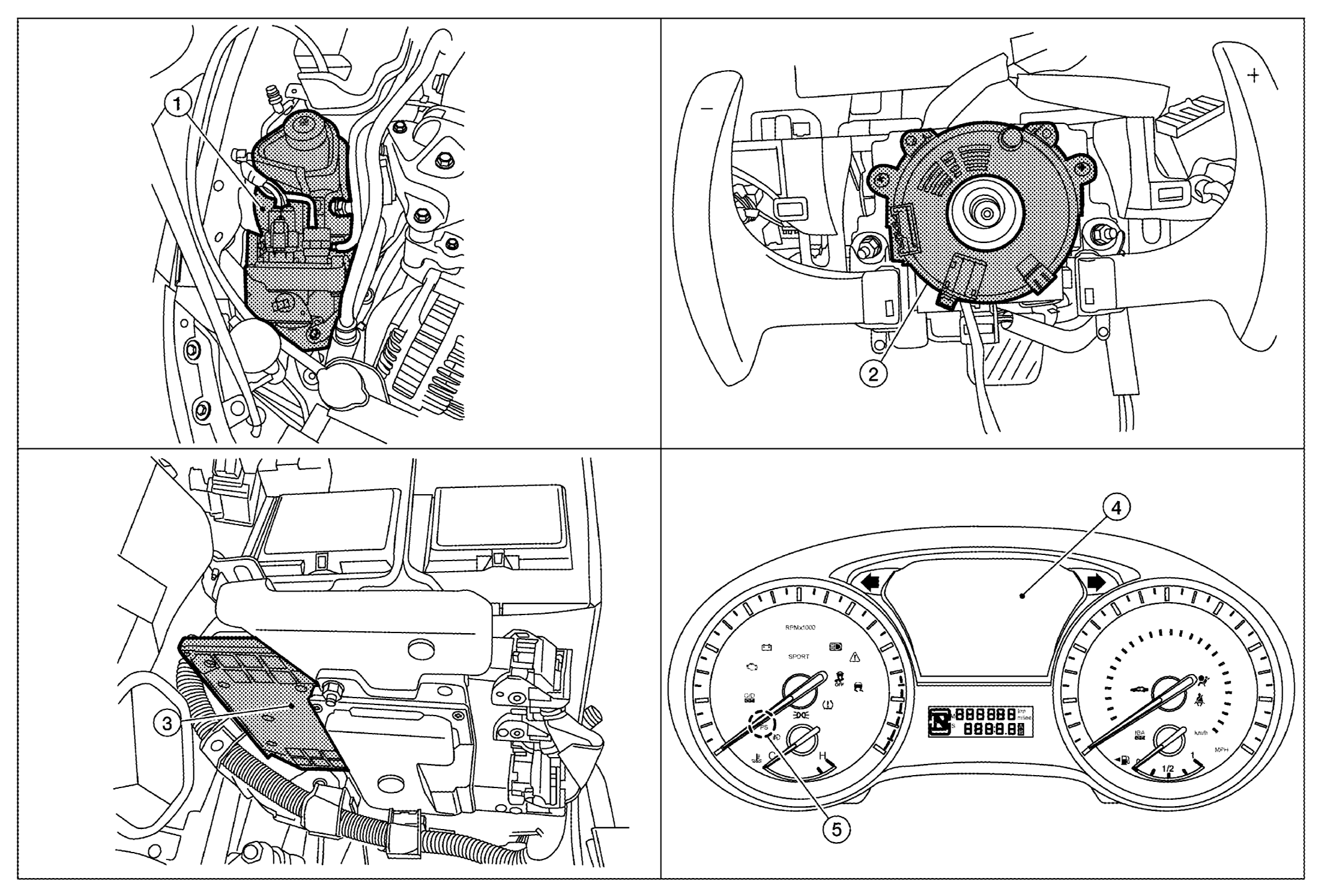

Fig 1: Steering Control System Component Parts Location
GNSALGIA0128ZZ-128Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering oil pump assembly 2. Steering angle sensor
(view with the steering wheel removed)		 3. ECM
4. Combination meter 5. EPS warning light
