Exploded View With Torque Specifications

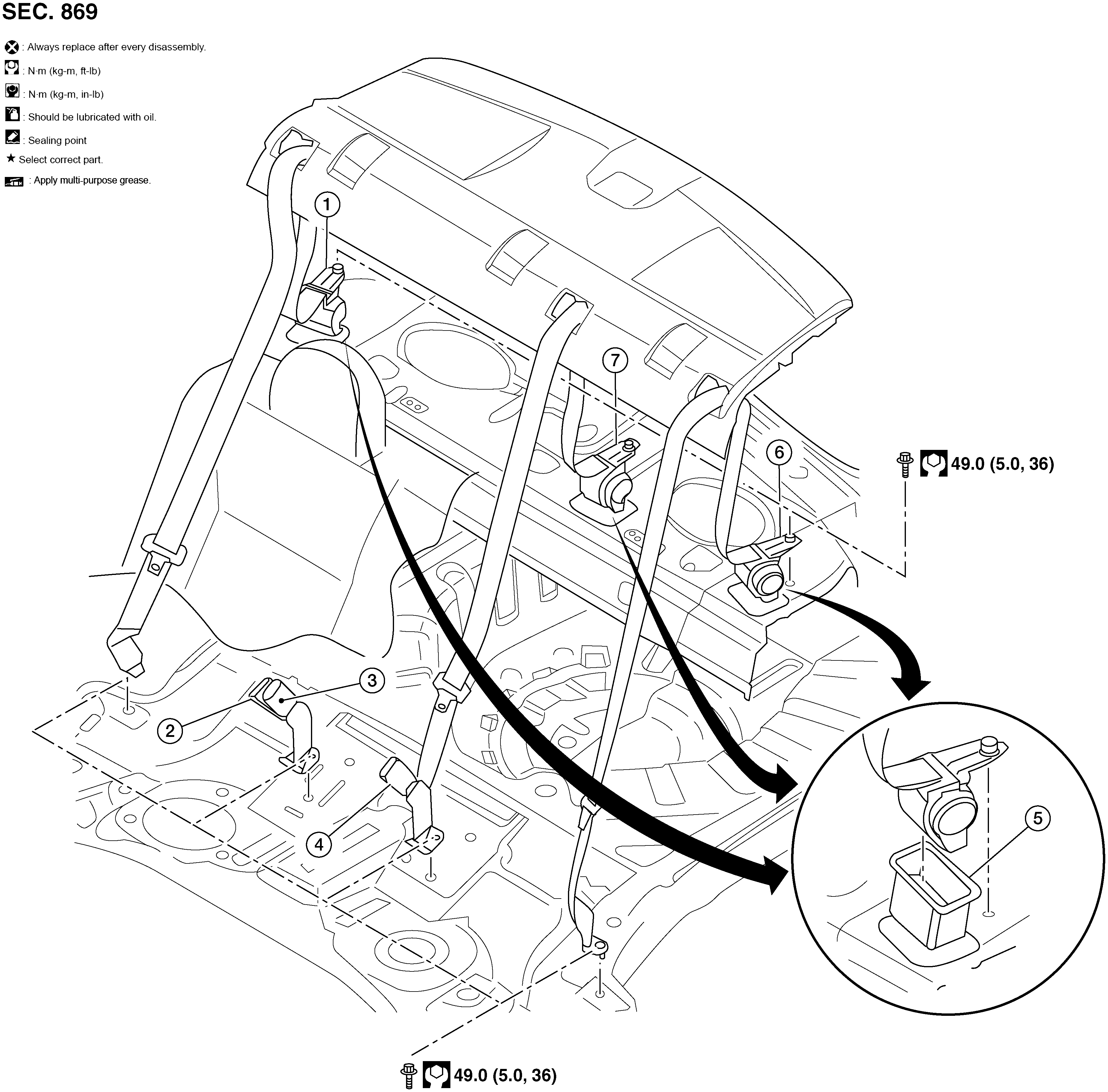

Fig 1: Exploded View Of Rear Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt retractor (RH)	2.	Seat belt buckle (RH)	3.	Seat belt buckle (center)
4.	Seat belt buckle (LH)	5.	Seat belt retractor box	6.	Seat belt retractor (LH)
7.	Seat belt retractor (center)
