Component Parts Location

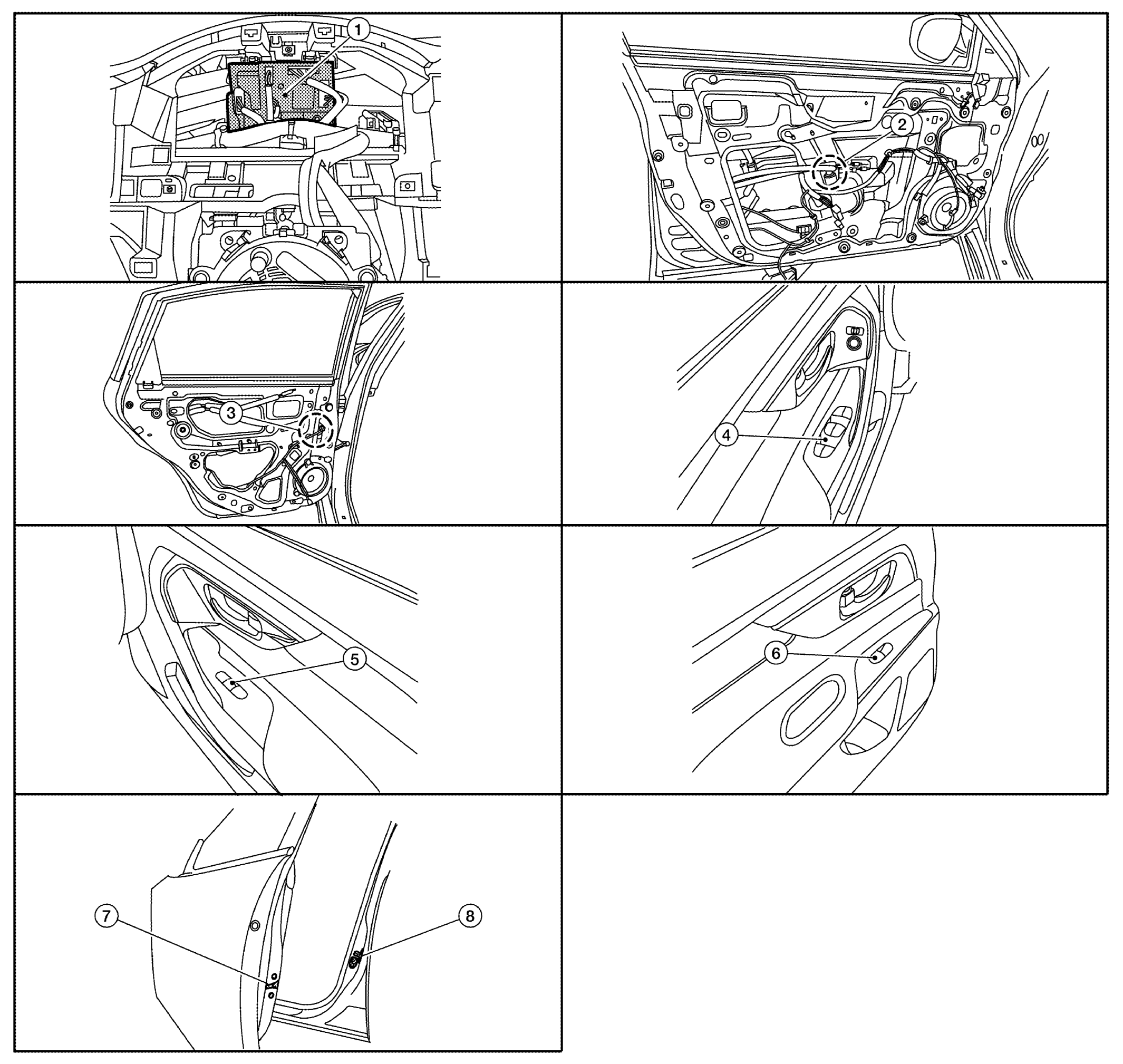

Fig 1: Power Window Control System Component Parts Location (LH Front Only Anti-Pinch)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	BCM (view with combination meter removed)	2.	Front power window motor LH (RH similar)	3.	Rear power window motor LH (RH similar)
4.	Main power window and door lock/unlock switch	5.	Power window and door lock/unlock switch RH	6.	Rear power window switch LH (RH similar)
7.	Front door lock assembly LH (key cylinder switch)	8.	Front door switch LH (RH similar)
