Disassembly And Assembly: Assembly
Assembly is in the reverse order of disassembly.
- Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.
- Smooth out all wrinkles during assembly.
- Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
- After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
- If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS FINAL CHECK .
- When installing the side air bag module, make sure the side air bag chute (4) is pulled over the outboard surface of the side air bag module (3). Make sure there are no wrinkles and the chute is not folded, twisted or pinched.
Courtesy of NISSAN NORTH AMERICA, INC.
(1) Seatback pad
(2) Frame
(5) Seatback board
: Front
CAUTION:- Do not reuse side air bag module nuts.
- Make sure the side air bag module nuts are tightened to specification. Refer to EXPLODED VIEW .
- When installing the seatback trim, firmly push down while sliding your hand along the seams as shown bellow (→) to ensure the hook fasteners below the seatback trim are fastened properly.
- Install new hog rings on the seatback trim in original positions.
Use only one hog ring in each designated location.
Ensure hog rings are correctly fastened around both the seatback trim and seatback pad wires.
Use NISSAN standard hog rings and tools to assemble.
- Install all seatback frame bolts and tighten evenly in sequence shown below.
Tighten the seatback frame bolts to specification. Refer to EXPLODED VIEW .
Note the following and assemble in the reverse order of disassembly.
- Smooth out all wrinkles during assembly.
- Do not damage the harness connector during installation.
- Do not reuse nuts. Replace with new parts during installation.
- Tighten nuts to specification.

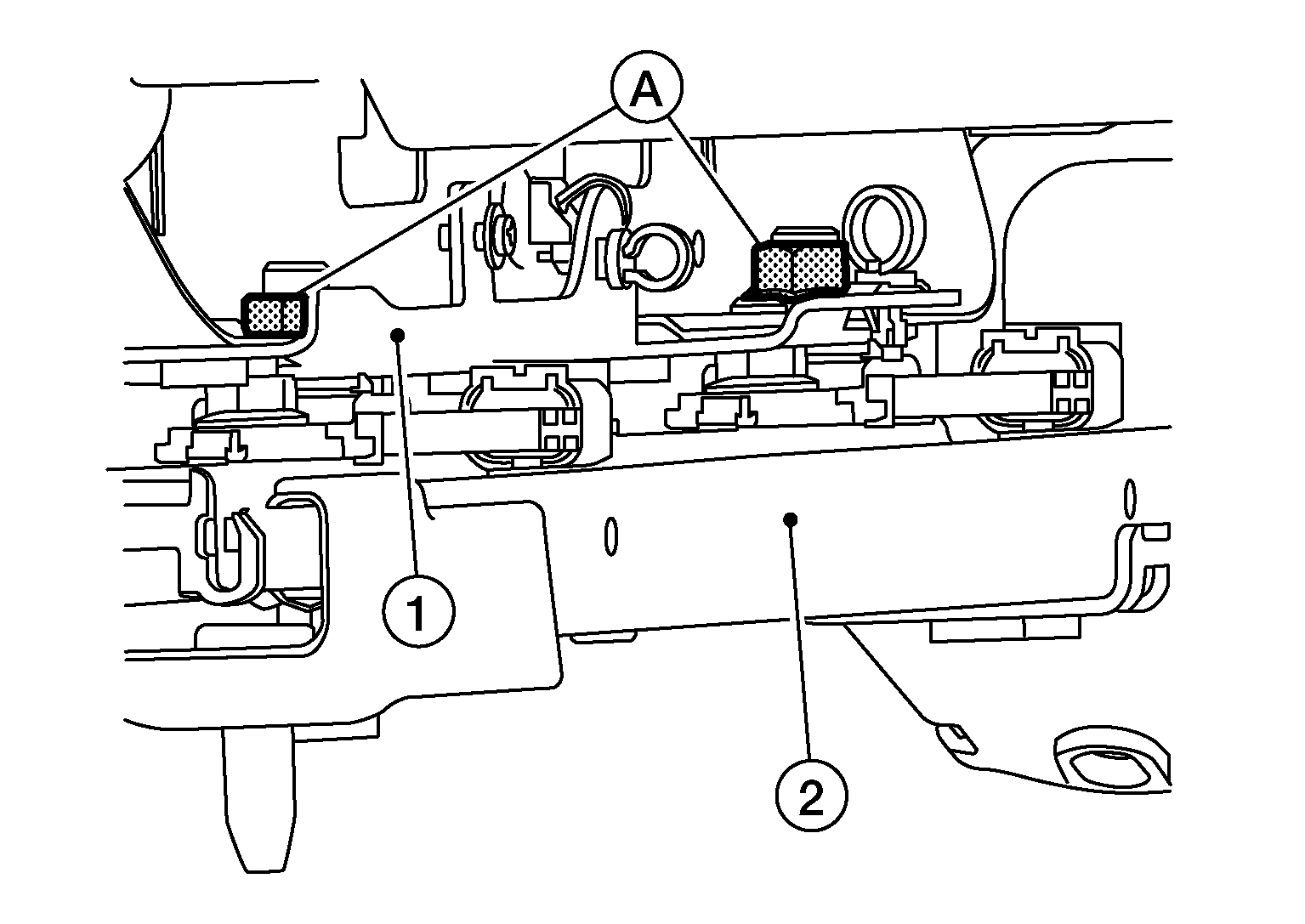

(1) Front passenger seat frame assembly
(2) Front passenger seat track (LH)
Seat track nuts (A) 45N•m (4.6kg-m, 33ft-lb) - Tighten nut to specification.

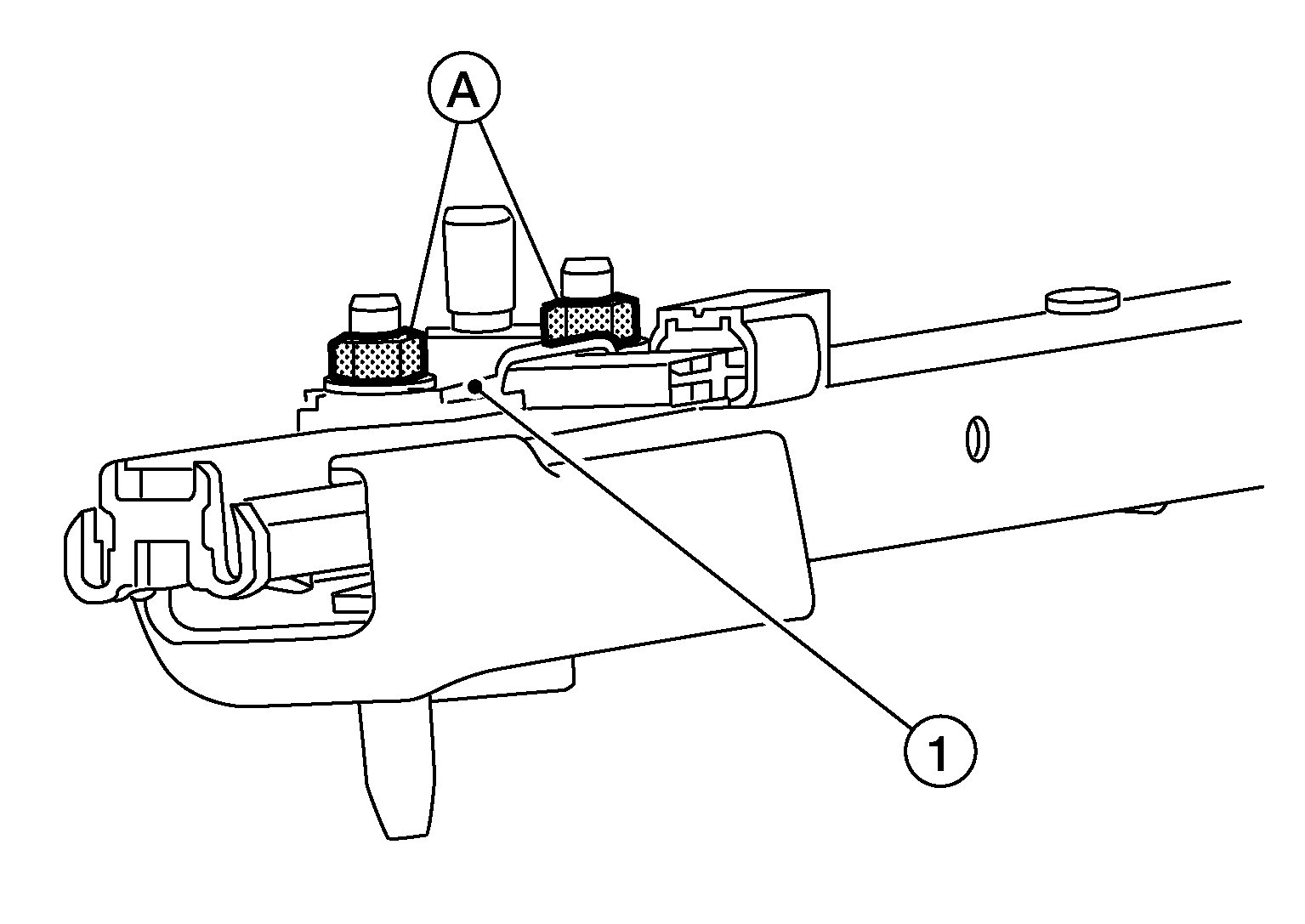

(1) Occupant classification system sensor
Occupant classification system sensor nut (A) 22N•m (2.2kg-m, 16ft-lb) - Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
- After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
- If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS FINAL CHECK .
- When installing the seat cushion trim, firmly push down while sliding your hand along the seams as shown below (→) to ensure the hook fasteners below the seat cushion trim are fastened properly.
- Install new hog rings on the seat cushion trim in original positions.
Use only one hog ring in each designated location.
Ensure hog rings are correctly fastened around both the seat cushion trim and seat cushion pad wires.
Use NISSAN standard hog rings and tools to assemble.
