Engine Start Function: Wiring Diagram

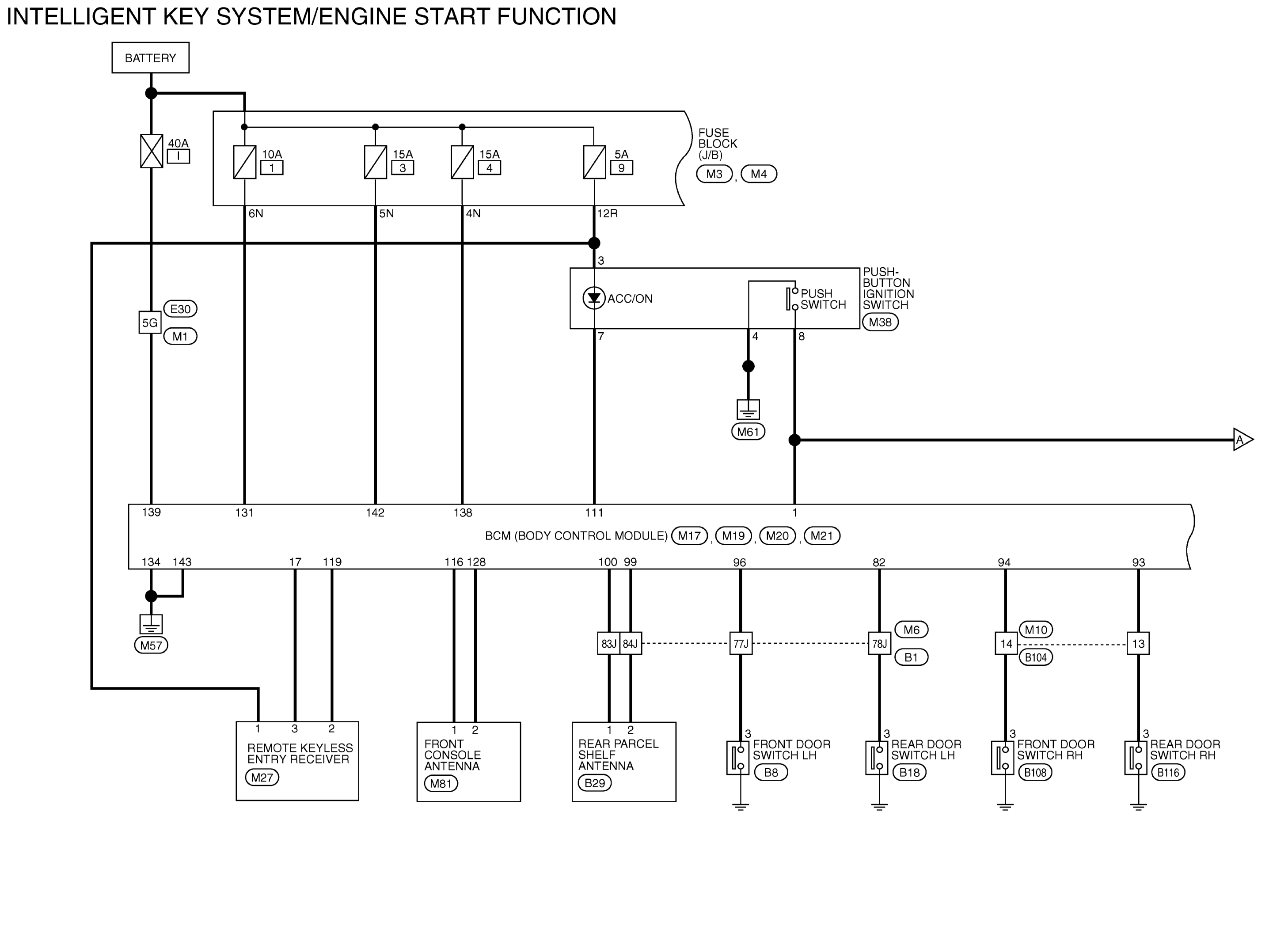

Fig 1: Engine Start Function Wiring Diagram (1 Of 3)
GNSAAKWA0938GB-938Courtesy of NISSAN NORTH AMERICA, INC.

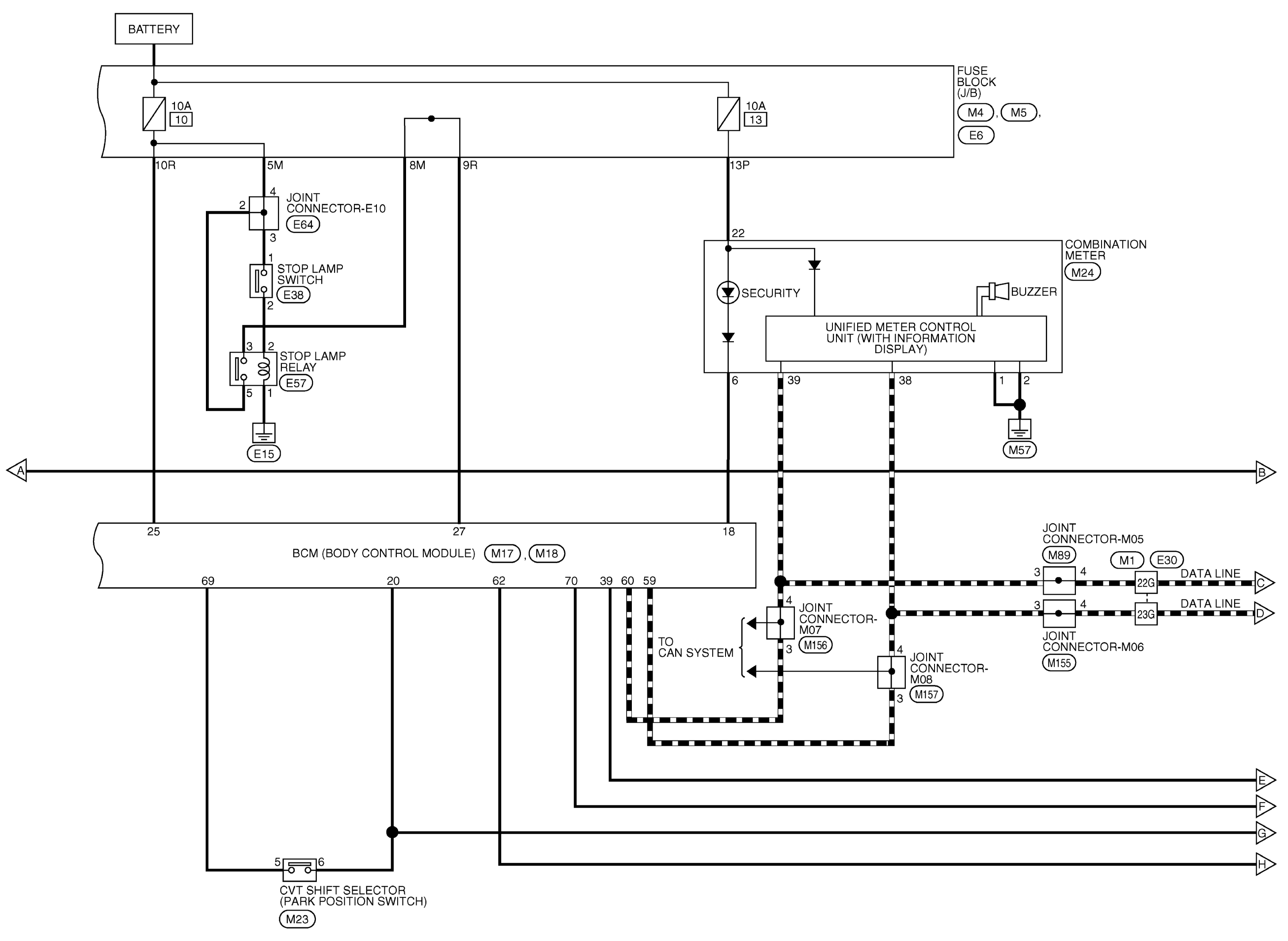

Fig 2: Engine Start Function Wiring Diagram (2 Of 3)
GNSAAKWA0911GB-911Courtesy of NISSAN NORTH AMERICA, INC.

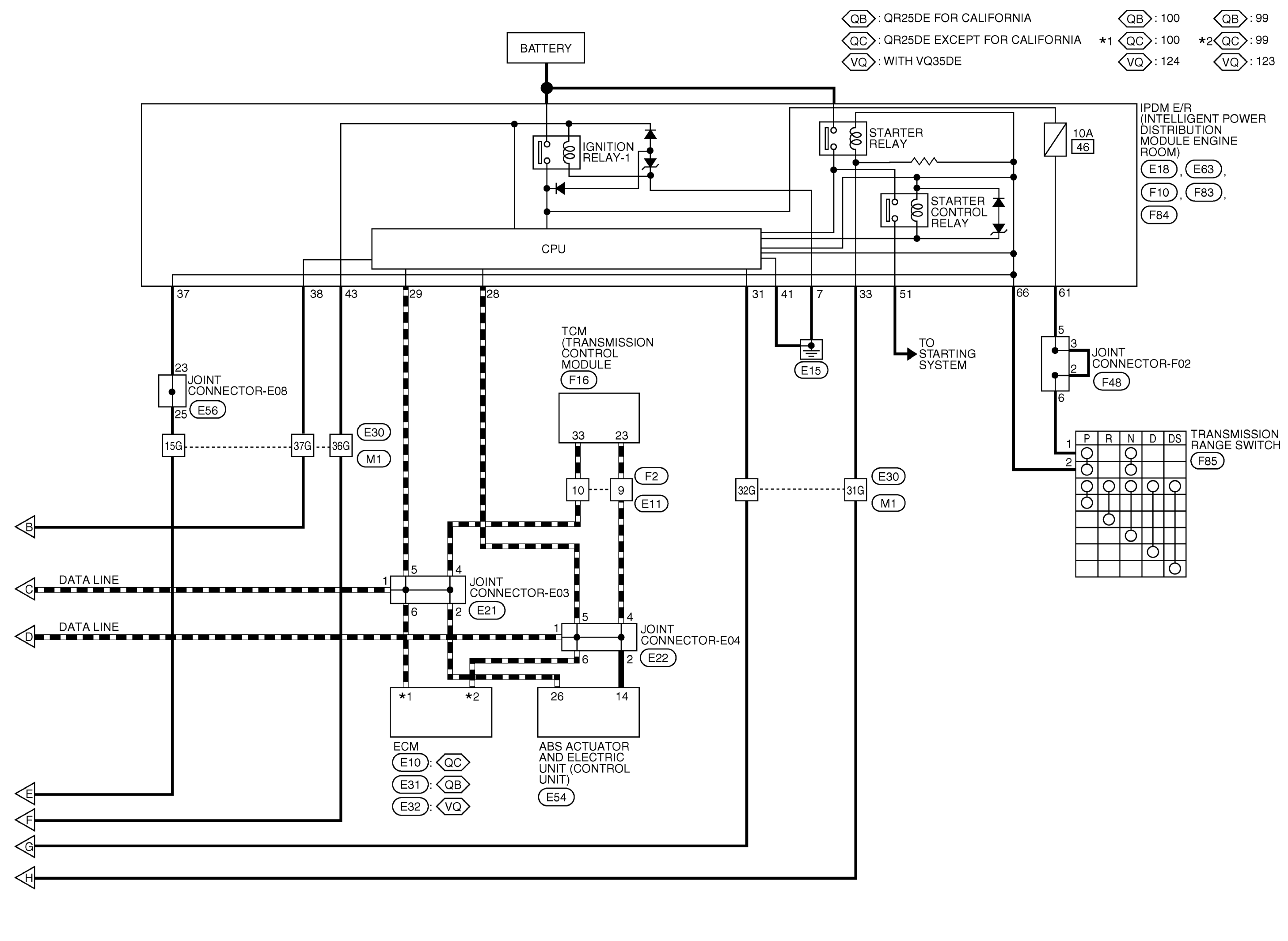

Fig 3: Engine Start Function Wiring Diagram (3 Of 3)
GNSAAKWA0913GB-913Courtesy of NISSAN NORTH AMERICA, INC.
