Exploded View With Torque Specifications

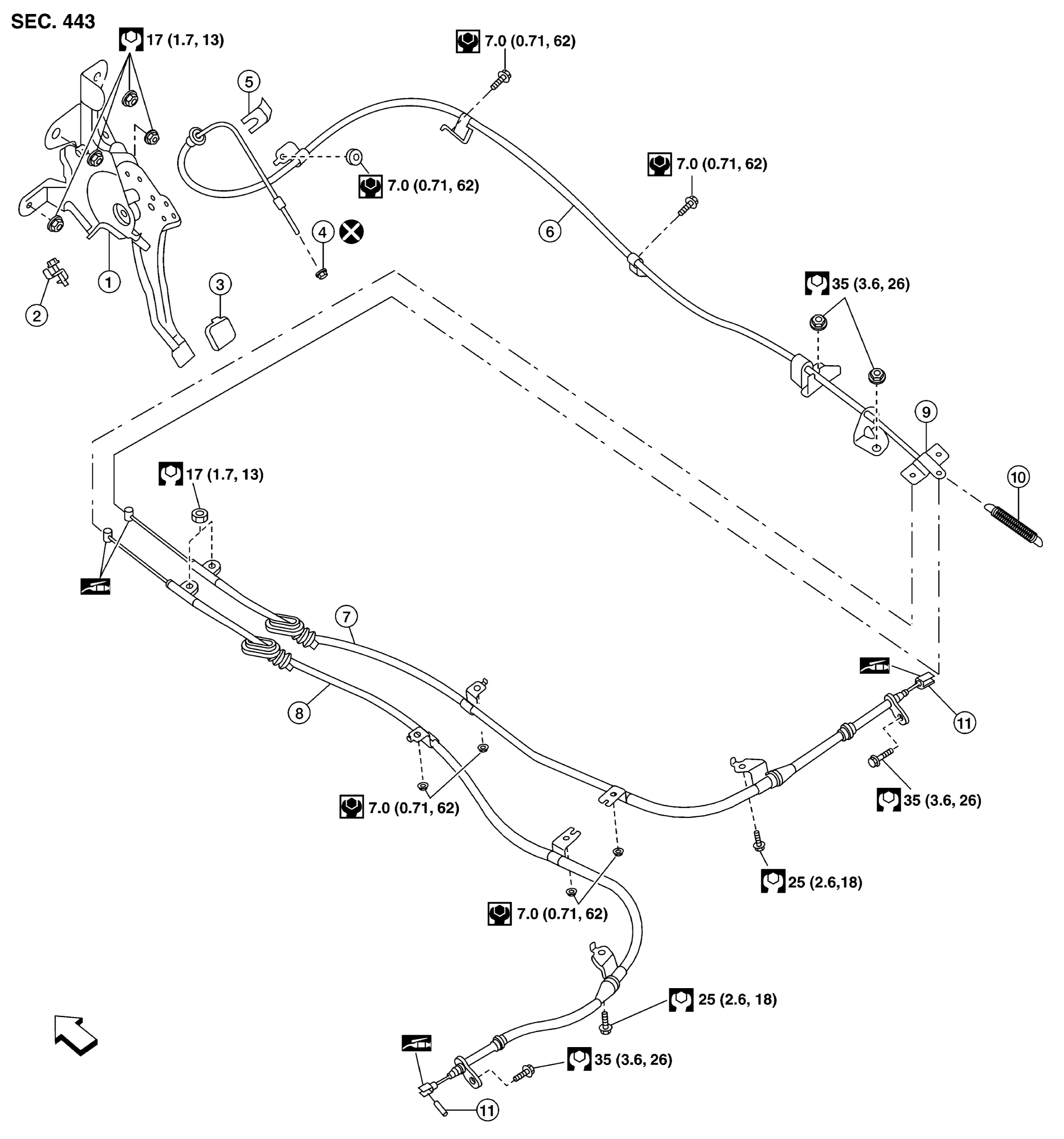

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
GNSAWFIA0790GB-790Courtesy of NISSAN NORTH AMERICA, INC.
1. Parking brake pedal assembly 2. Parking brake switch 3. Pedal pad
4. Adjusting nut 5. Lock plate 6. Front cable
7. Rear cable (RH) 8. Rear cable (LH) 9. Equalizer
10. Spring 11. Pin   Front
