Exploded View With Torque Specifications

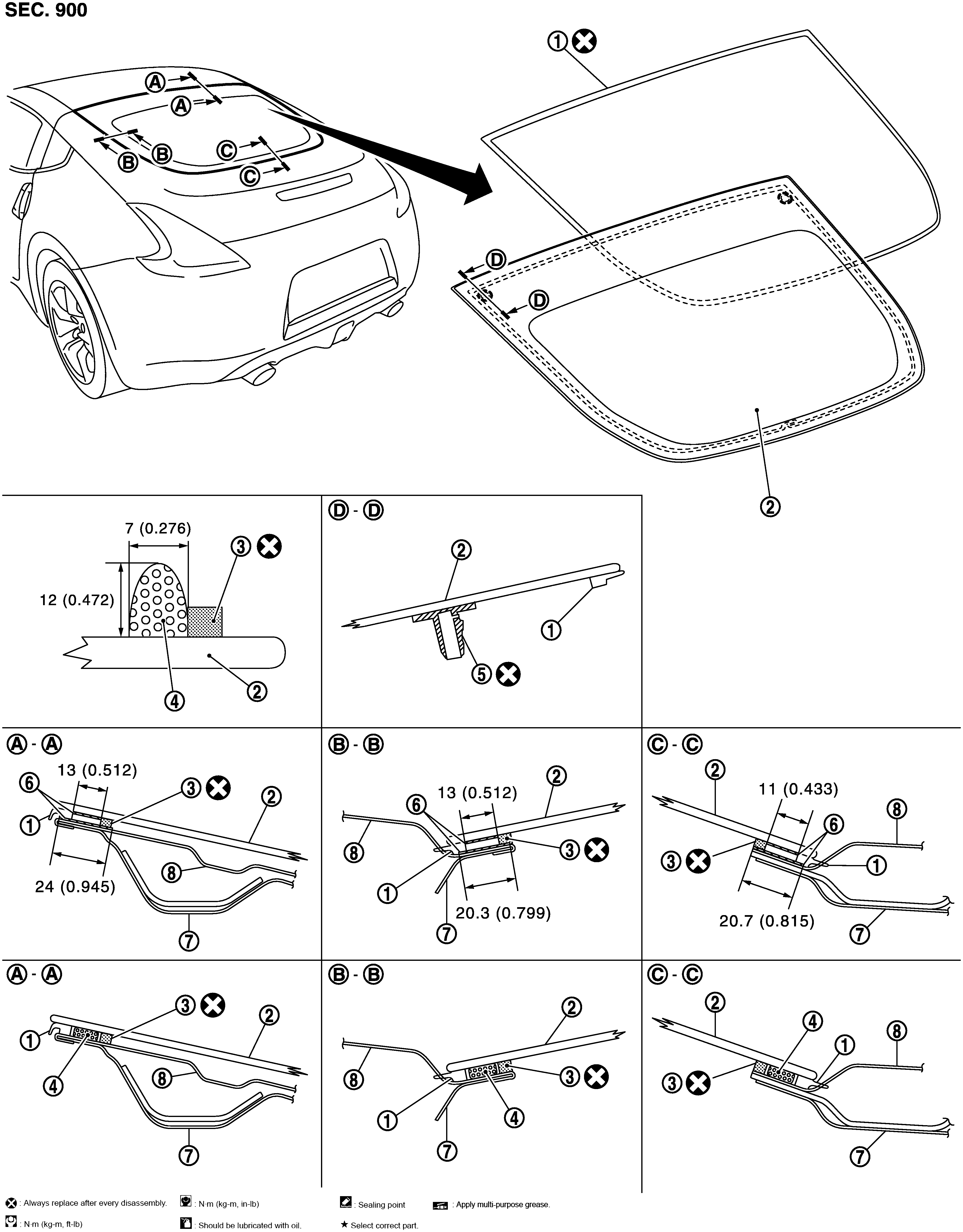

Fig 1: Exploded View Of Back Door Window Glass Components

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back Door Glass Molding	2.	Back Door Window Glass Assembly	3.	Dam Sealant Rubber
4.	Adhesive	5.	Back Door Glass Holder	6.	Primer
7.	Back Door Inner	8.	Back Door Outer
Unit	mm (in)
	Always replace after every disassembly.
