Disassembly And Assembly: Disassembly

  1. Turn EVAP canister vent control valve counterclockwise.

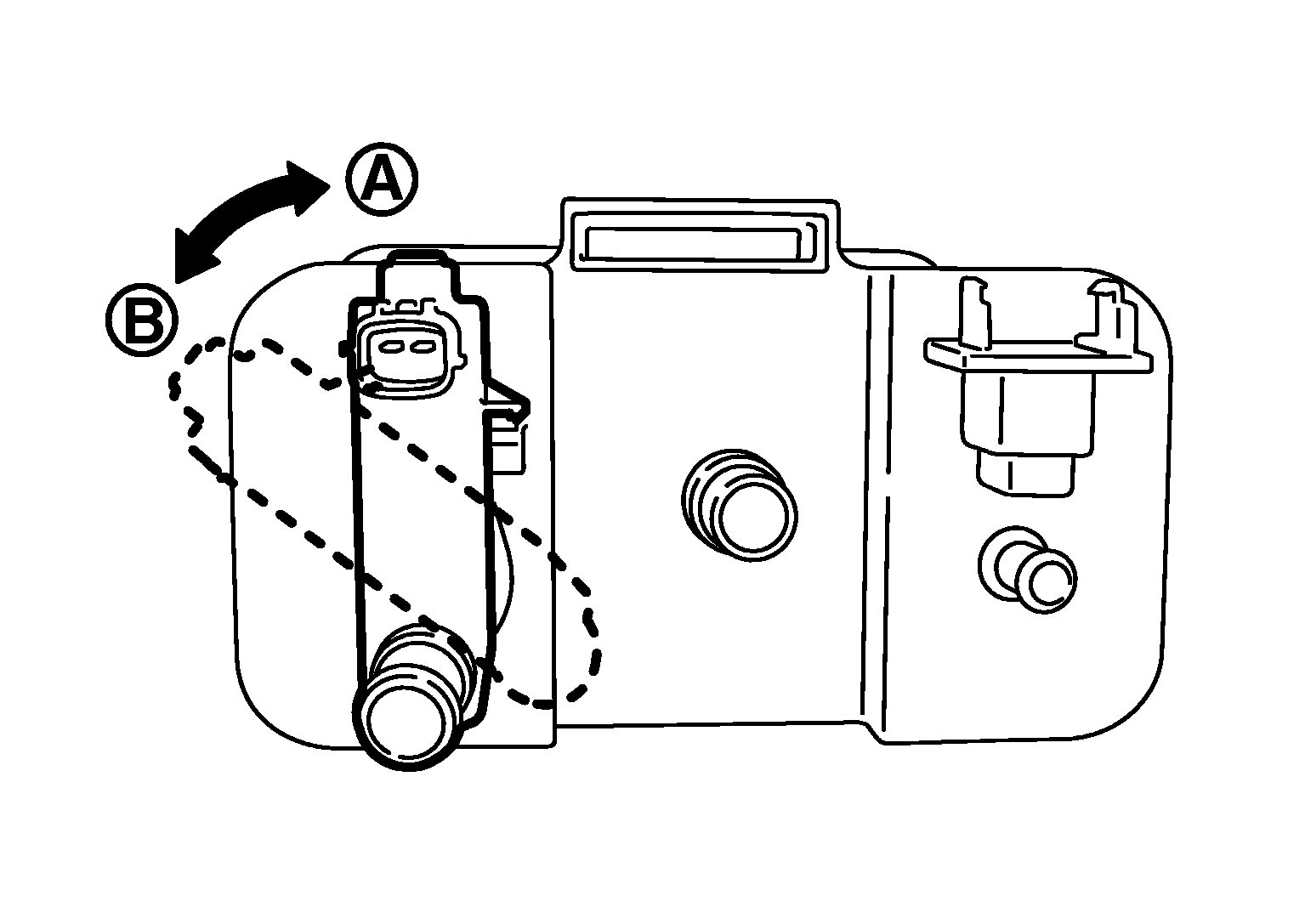

    Fig 1: Turning EVAP Canister Vent Control Valve
    G04138162Courtesy of NISSAN NORTH AMERICA, INC.
    A Lock
    B Unlock
  2. Remove the EVAP canister vent control valve.
