Engine Control System (Introduction)
>>
System Description
>>
Variable Induction Air System
>>
Vacuum Hose Drawing
Vacuum Hose Drawing

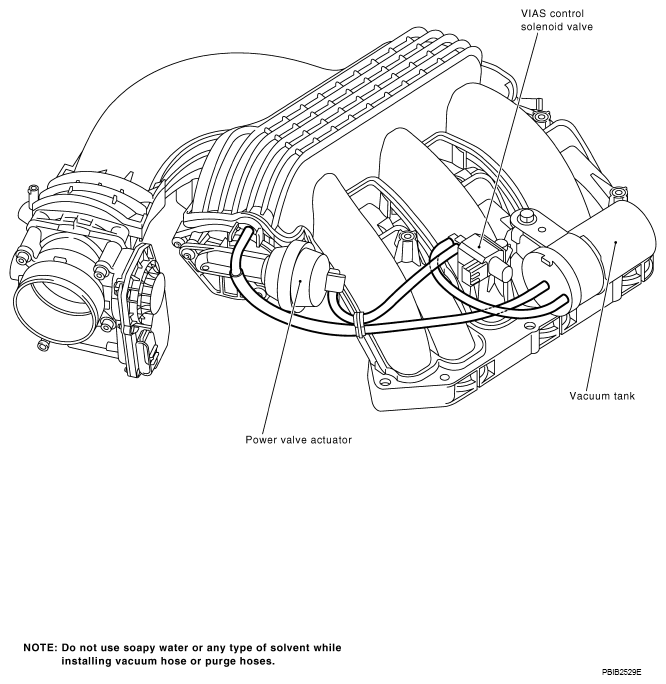

Fig 1: Identifying Power Valve Actuator, VIAS Control Solenoid Valve And Vacuum Tank
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
"
SYSTEM DIAGRAM
"
for Vacuum Control System.
