Xterra S, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Introduction)
>>
System Description
>>
Engine Control System
>>
System Diagram
System Diagram

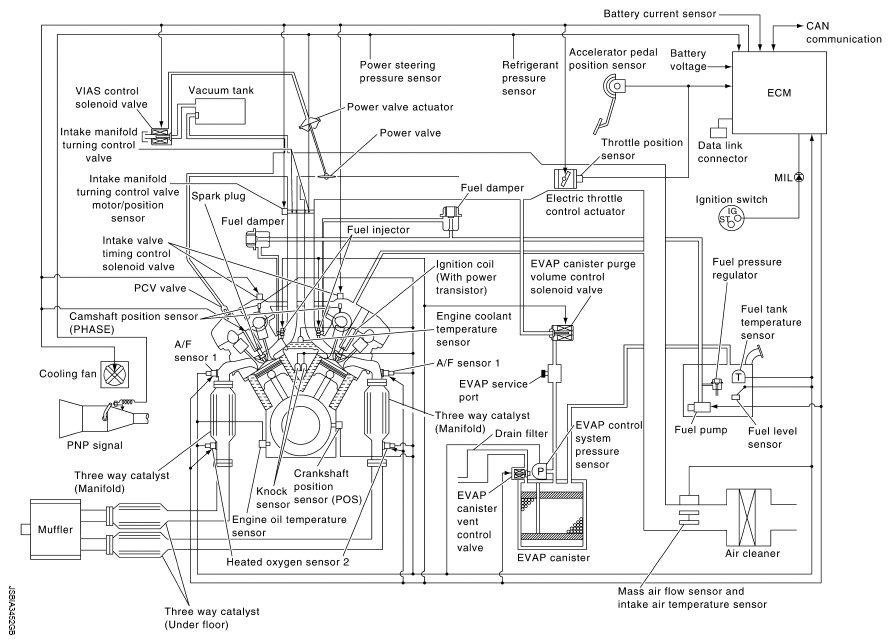

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
