Xterra S, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System
>>
System Description
>>
Relay Control System
>>
System Diagram
System Diagram

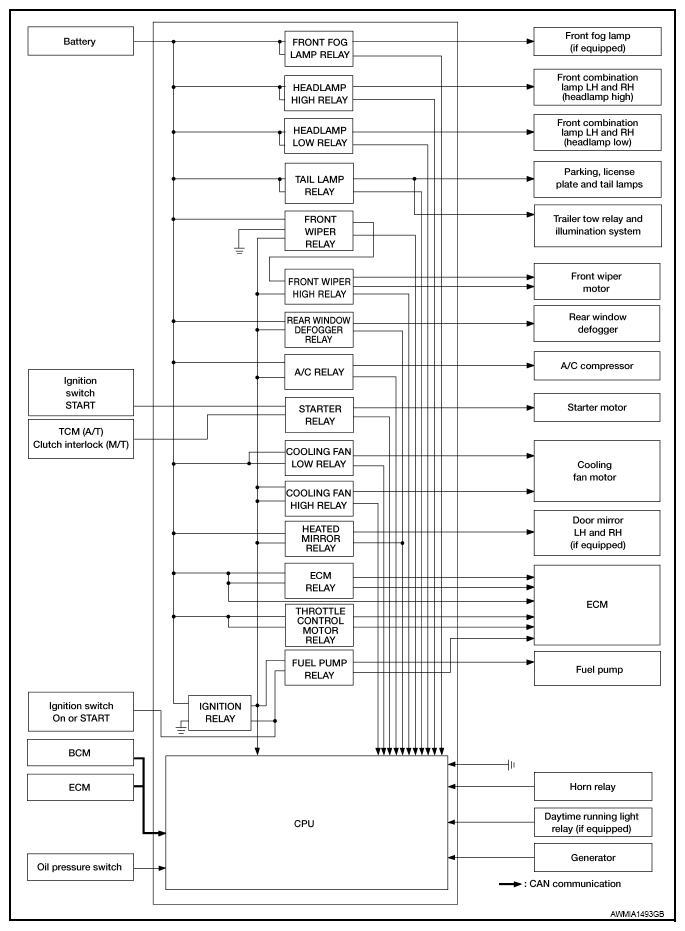

Fig 1: Relay Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
