Engine Mechanical
>>
Engine Lubrication System
>>
System Description
>>
Description
>>
Engine Lubrication System
Engine Lubrication System

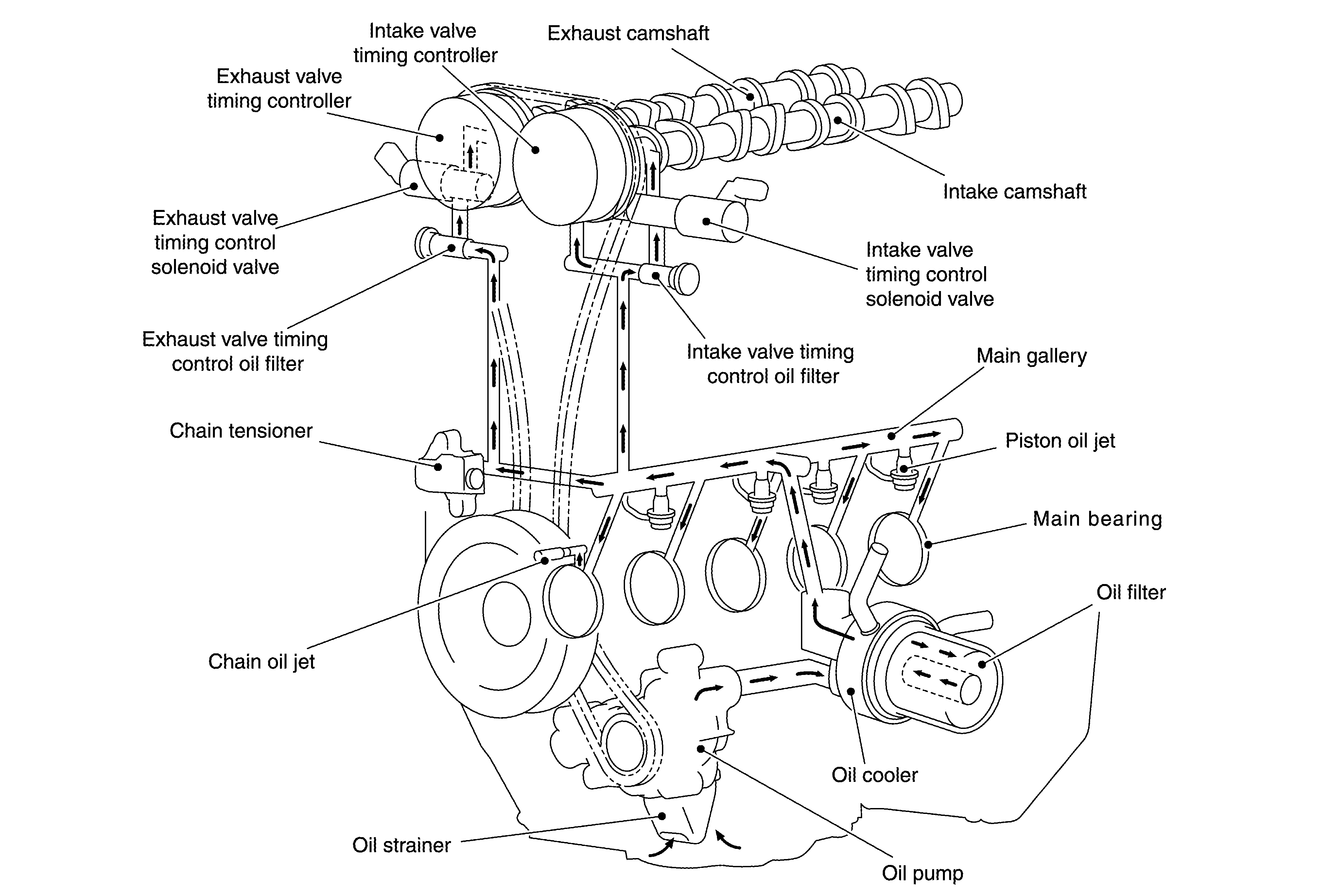

Fig 1: Engine Lubrication System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
