Nissan-Datsun
>>
2014
>>
Versa SV
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Removal And Installation
>>
Starter Motor
>>
Exploded View
>>
Disassembly And Assembly
Disassembly And Assembly

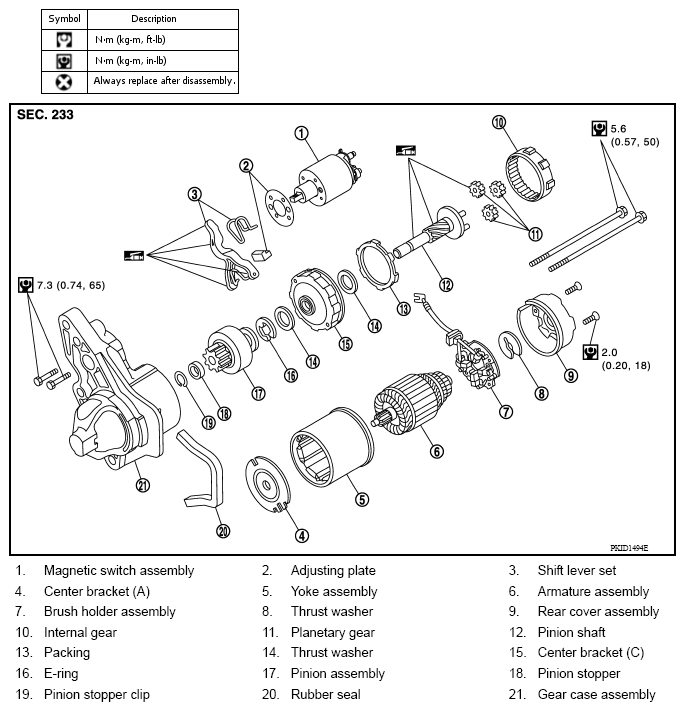

Fig 1: Disassembled View Of Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
