Power Control System (Power Distribution System)
>>
System Description
>>
System
>>
Power Distribution System
>>
POWER DISTRIBUTION SYSTEM: System Diagram
POWER DISTRIBUTION SYSTEM: System Diagram

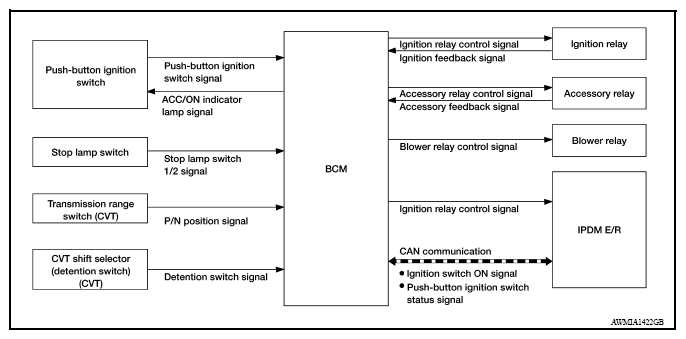

Fig 1: Power Distribution - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
