Nissan-Datsun
>>
2014
>>
Versa SV
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Removal And Installation
>>
Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
Exploded View

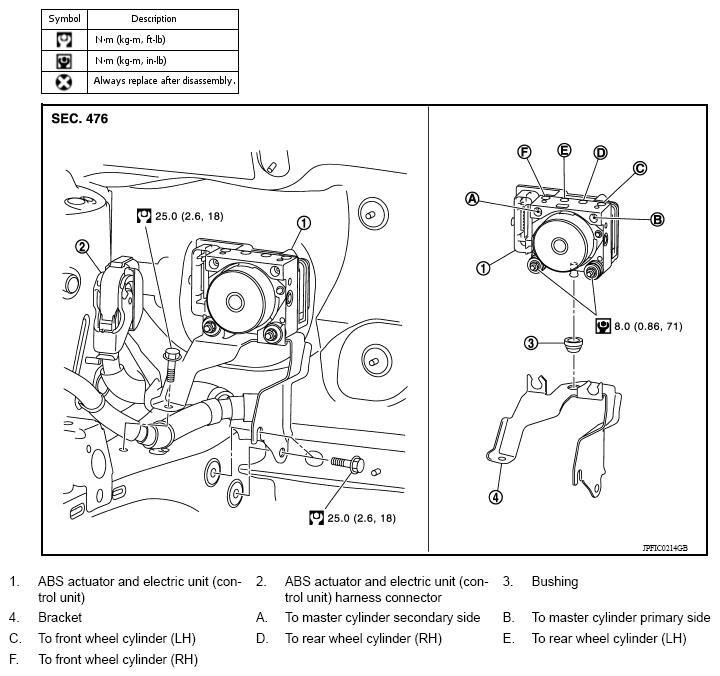

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
