Connectors End Views

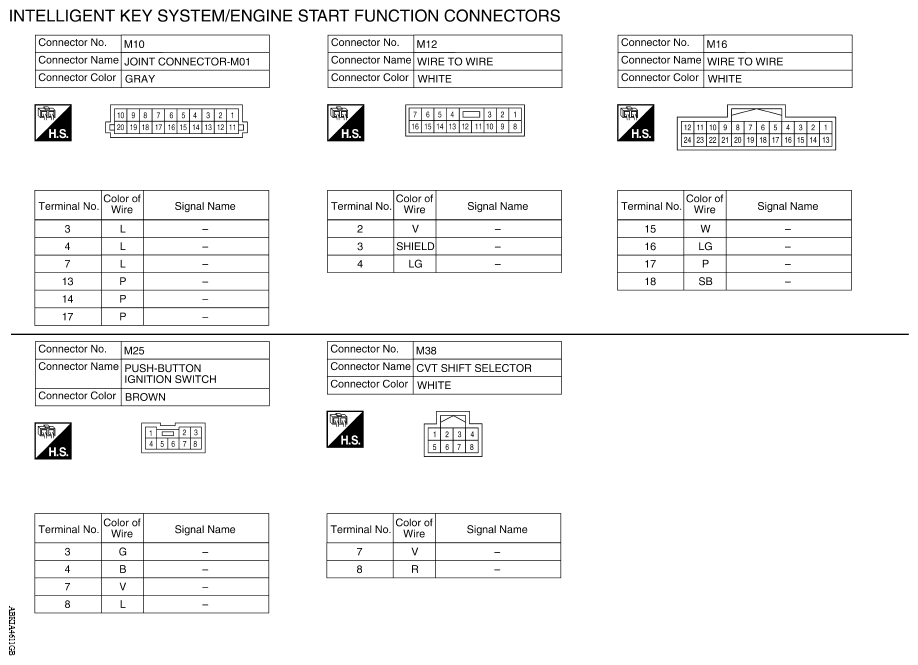

Fig 1: Intelligent Key/Engine Start Function Connectors End View (1 Of 8)
G09616123Courtesy of NISSAN NORTH AMERICA, INC.

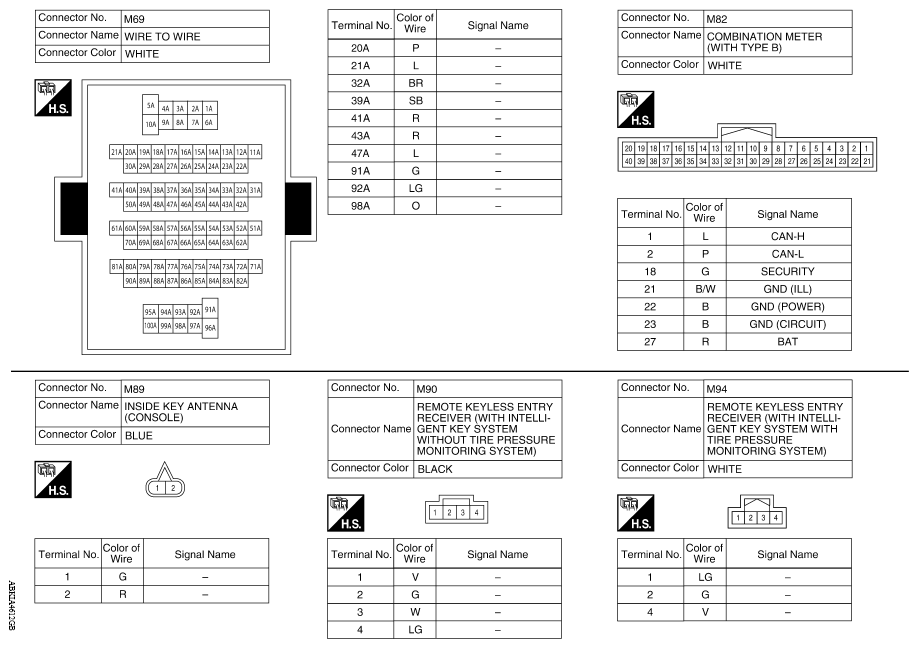

Fig 2: Intelligent Key/Engine Start Function Connectors End View (2 Of 8)
G09616124Courtesy of NISSAN NORTH AMERICA, INC.

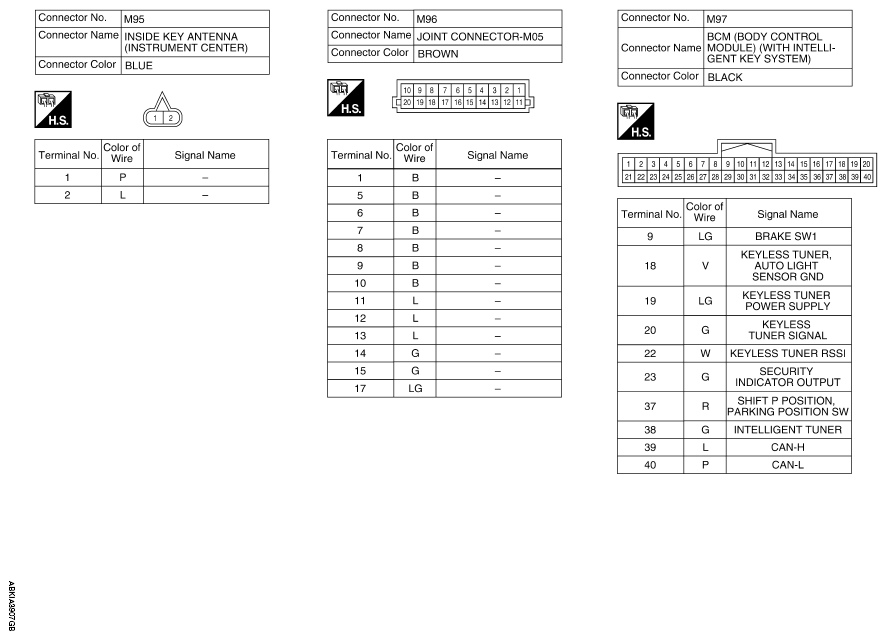

Fig 3: Intelligent Key/Engine Start Function Connectors End View (3 Of 8)
G09052194Courtesy of NISSAN NORTH AMERICA, INC.

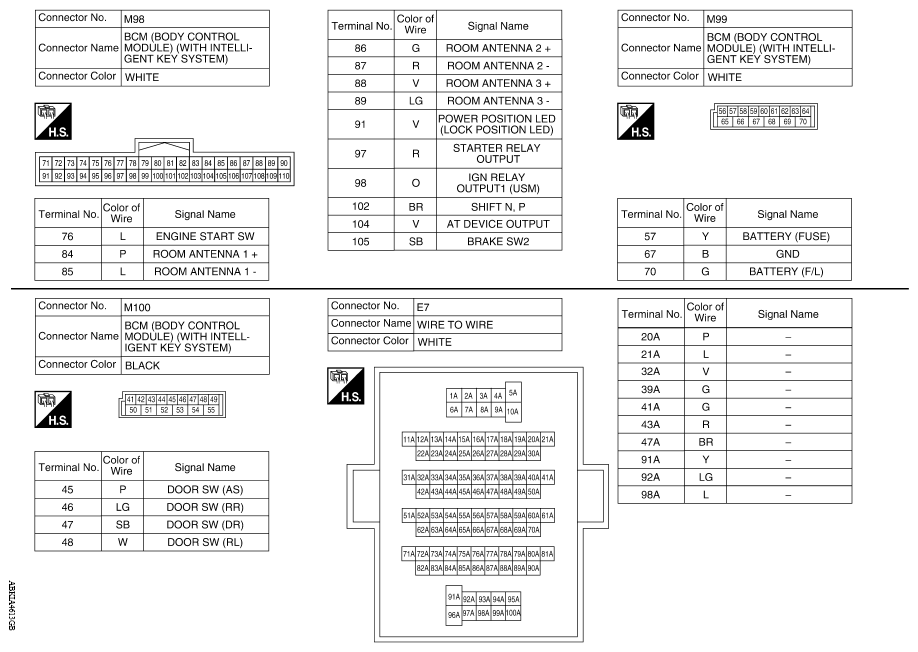

Fig 4: Intelligent Key/Engine Start Function Connectors End View (4 Of 8)
G09616126Courtesy of NISSAN NORTH AMERICA, INC.

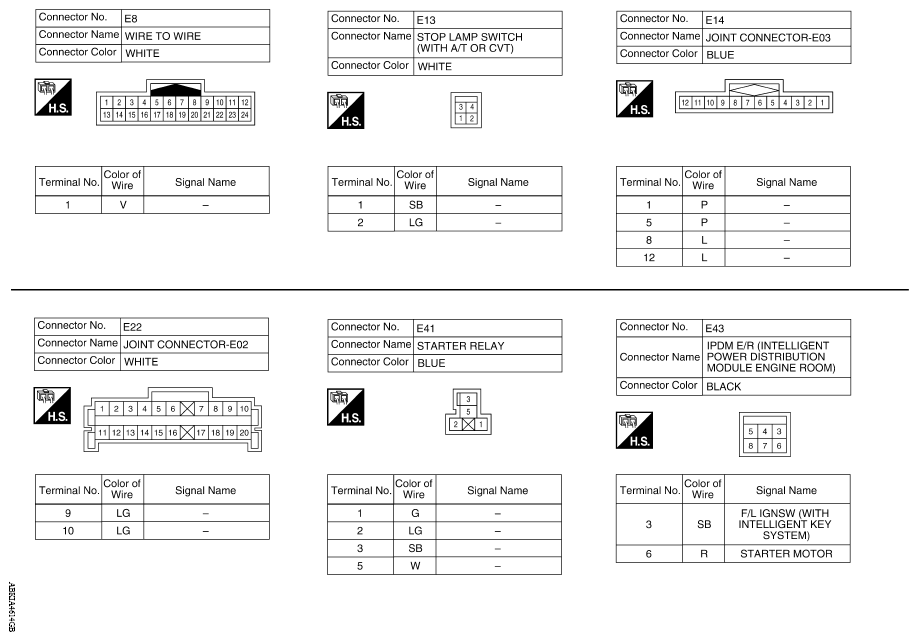

Fig 5: Intelligent Key/Engine Start Function Connectors End View (5 Of 8)
G09616127Courtesy of NISSAN NORTH AMERICA, INC.

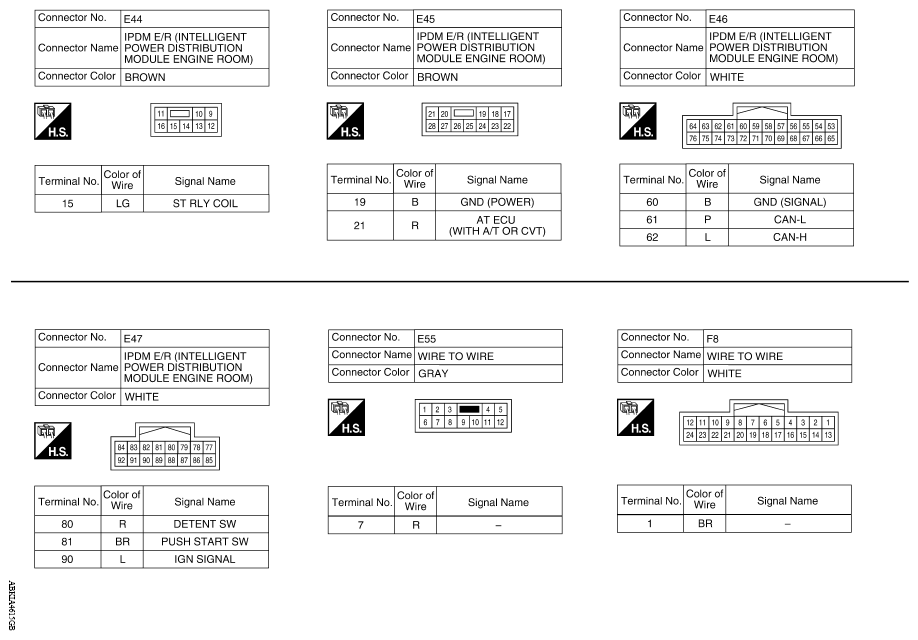

Fig 6: Intelligent Key/Engine Start Function Connectors End View (6 Of 8)
G09616128Courtesy of NISSAN NORTH AMERICA, INC.

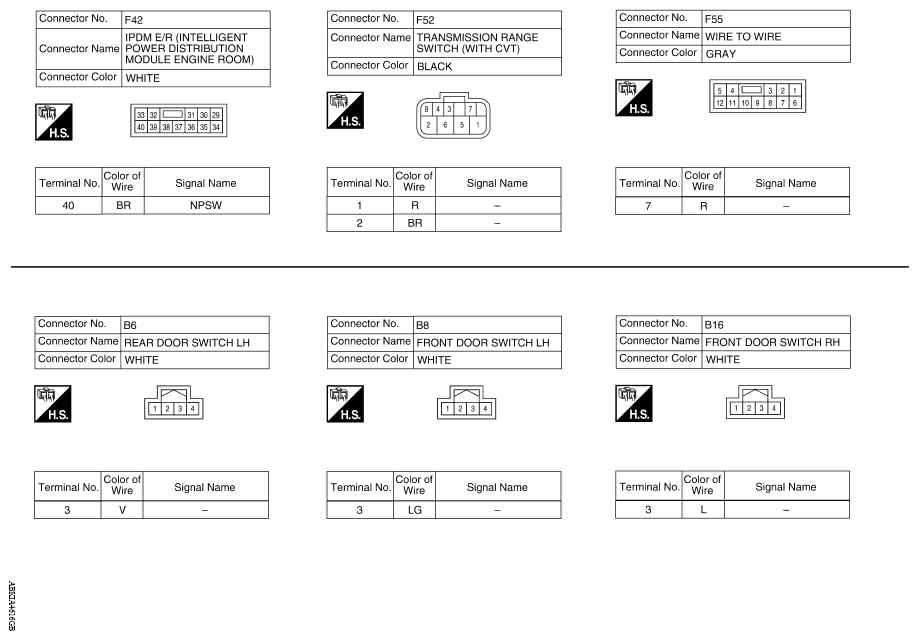

Fig 7: Intelligent Key/Engine Start Function Connectors End View (7 Of 8)
G09616129Courtesy of NISSAN NORTH AMERICA, INC.

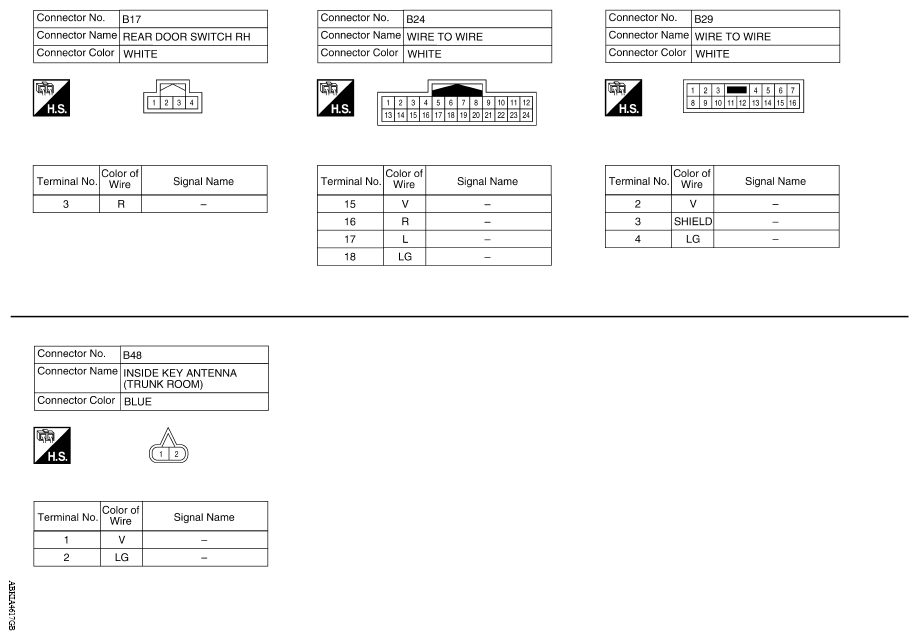

Fig 8: Intelligent Key/Engine Start Function Connectors End View (8 Of 8)
G09616130Courtesy of NISSAN NORTH AMERICA, INC.
