Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light (A) to loop wire (1) as shown below.

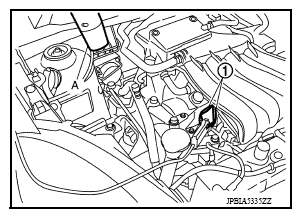

      Fig 1: Identifying Ignition Timing Light And Loop Wire
      G09614612Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

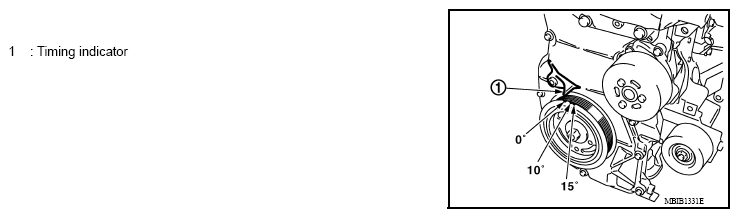

      Fig 2: Identifying Ignition Timing Indicator
      G09614613Courtesy of NISSAN NORTH AMERICA, INC.

      : INSPECTION END
