DRIVER SIDE: Exploded View
DRIVER SIDE: Exploded View

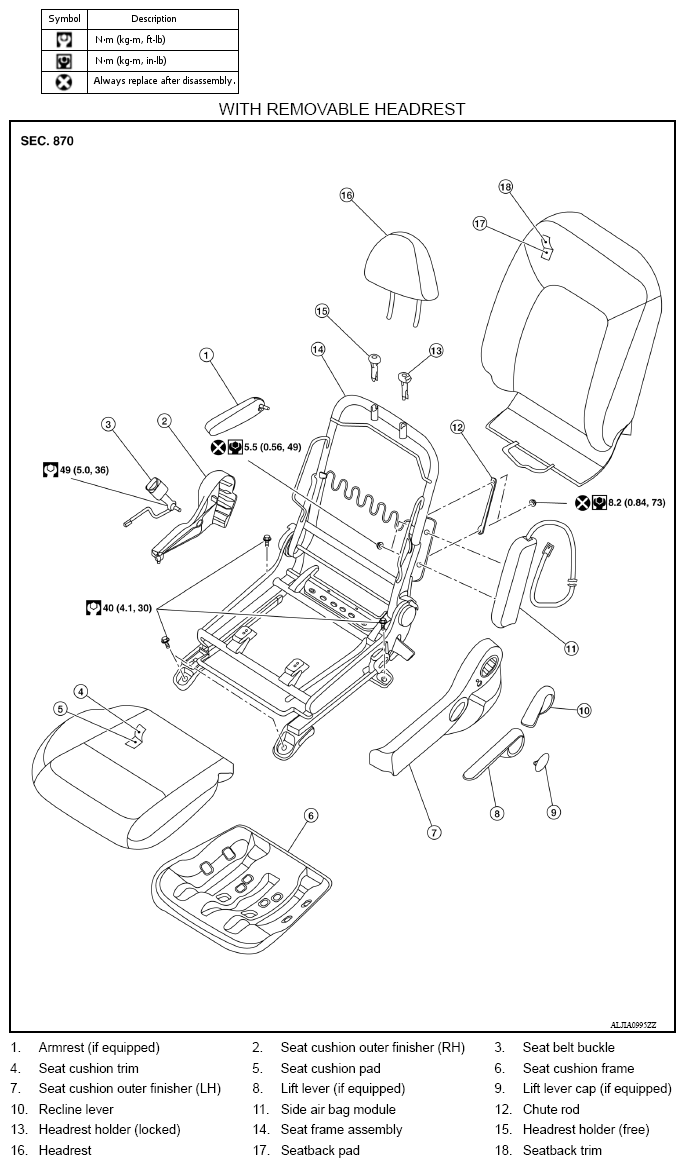

Fig 1: Exploded View Of Front Seat - Driver Side (With Removable Headrest) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

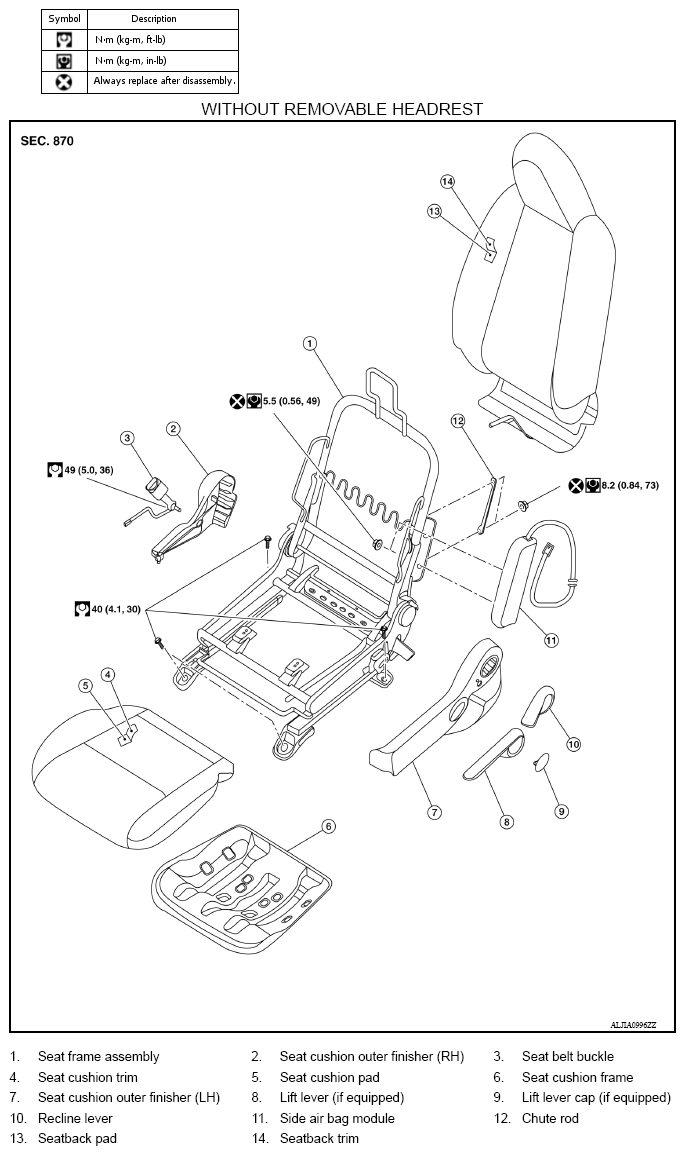

Fig 2: Exploded View Of Front Seat - Driver Side (Without Removable Headrest) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
