Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove BCM screws (A) and pull out the BCM (B).
  4. Disconnect the harness connectors from the BCM (B) and remove.

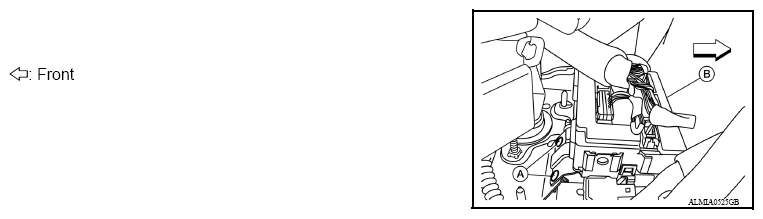

    Fig 1: Identifying BCM And Mounting Screws
    G09616561Courtesy of NISSAN NORTH AMERICA, INC.
