Component Inspection

  1. CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR
    1. Turn ignition switch OFF.
    2. Disconnect ECT sensor harness connector.
    3. Remove ECT sensor.
    4. Check resistance between ECT sensor terminals by heating with hot water as shown in the figure below.
      ECT sensor Condition Resistance (kΩ)
      Terminal
      1 2 Temperature [°C (°F)] 20 (68) 2.10 - 2.90
      50 (122) 0.68 - 1.00
      90 (194) 0.236 - 0.260

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace engine coolant temperature sensor. Refer to "EXPLODED VIEW ".

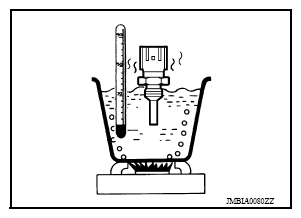

      Fig 1: Checking Engine Coolant Temperature Sensor
      G09614524Courtesy of NISSAN NORTH AMERICA, INC.
