Power Distribution System
>>
Connectors End View
Connectors End View

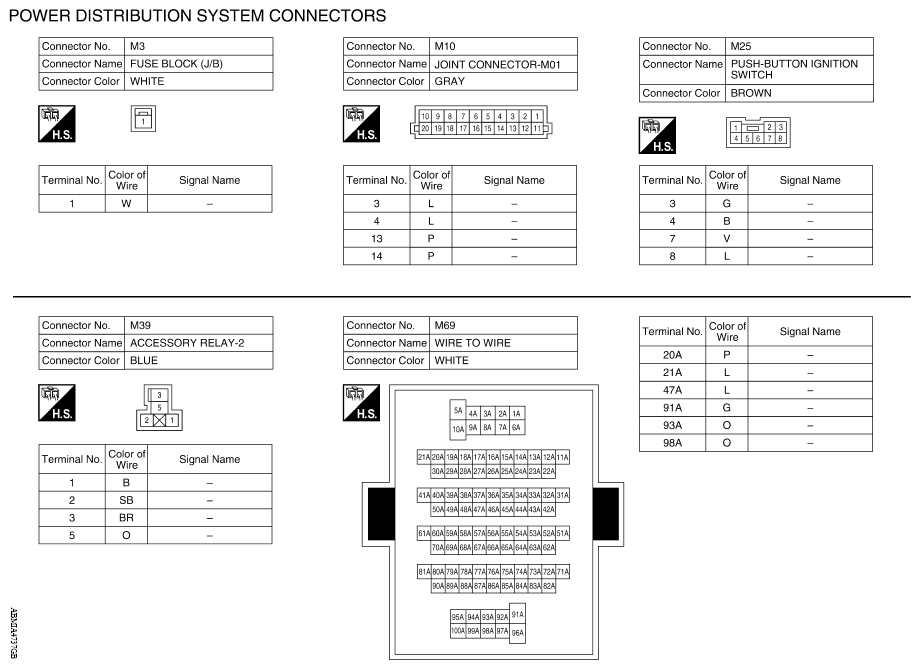

Fig 1: Power Distribution System Connectors End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

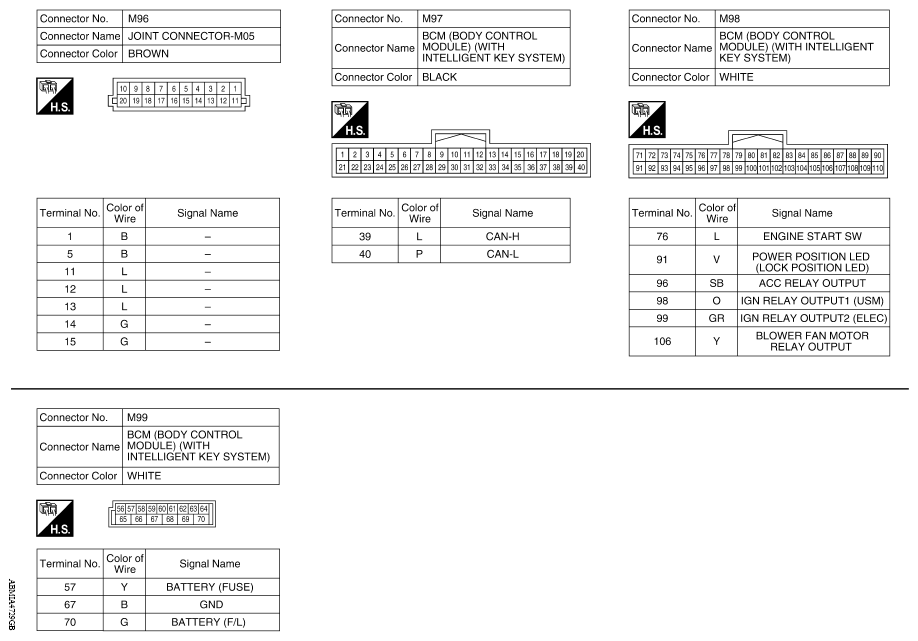

Fig 2: Power Distribution System Connectors End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

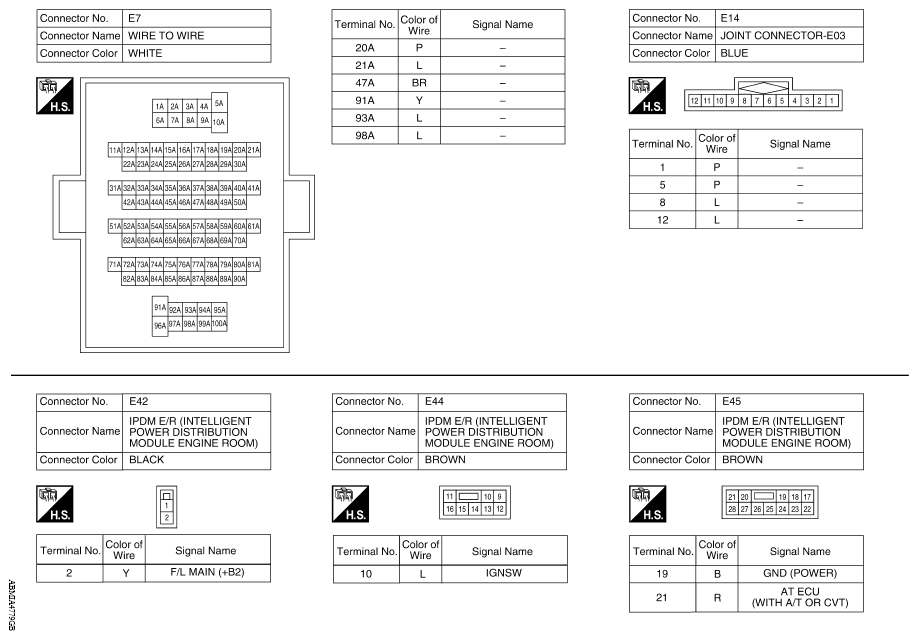

Fig 3: Power Distribution System Connectors End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

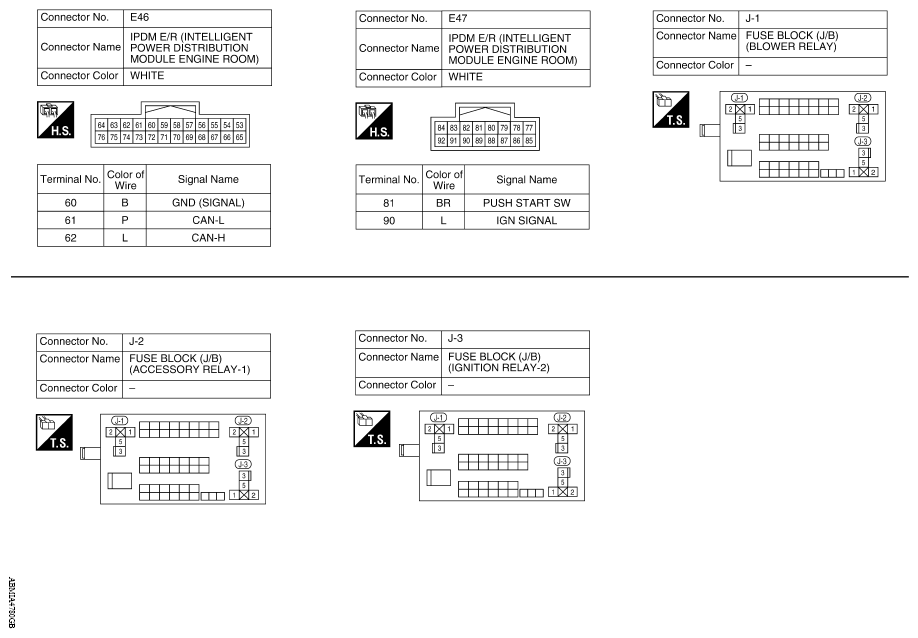

Fig 4: Power Distribution System Connectors End View (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
