PASSENGER SIDE: Exploded View

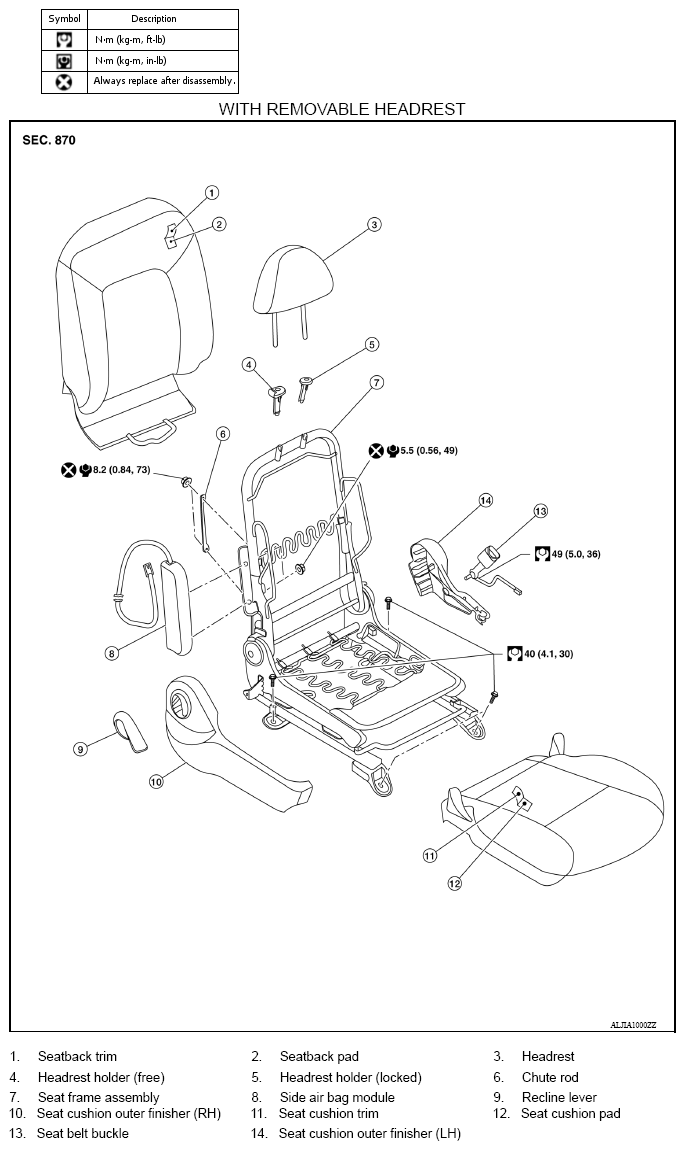

Fig 1: Exploded View Of Front Seat -Passenger Side (With Removable Headrest) With Torque Specifications
G09615738Courtesy of NISSAN NORTH AMERICA, INC.

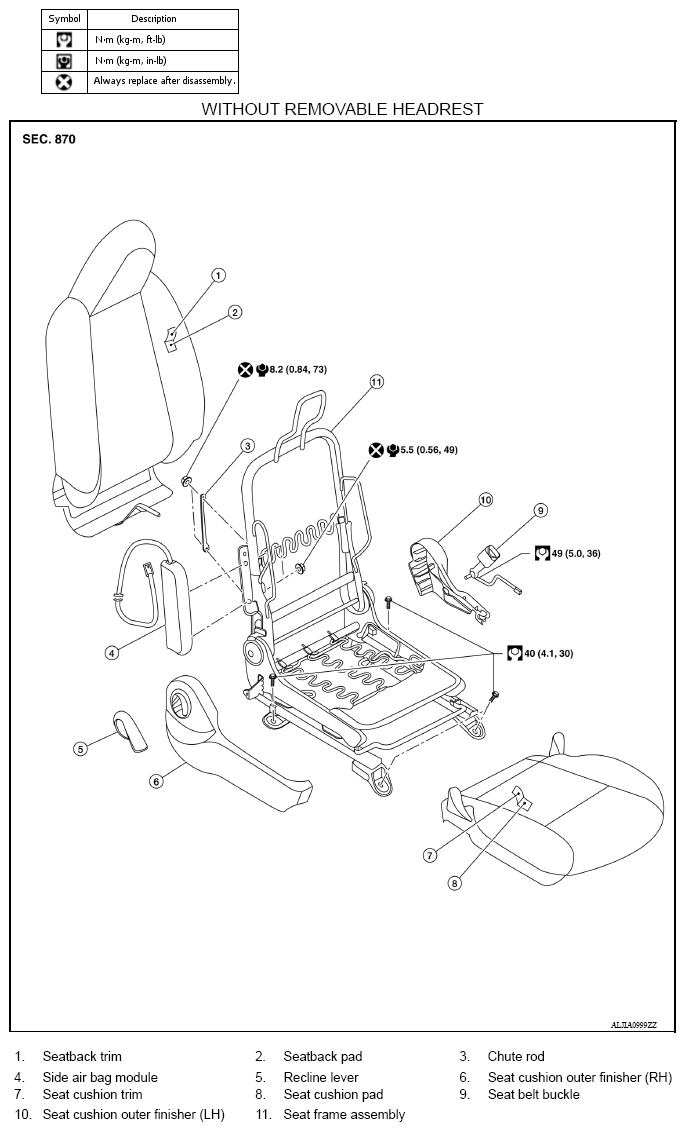

Fig 2: Exploded View Of Front Seat -Passenger Side (Without Removable Headrest) With Torque Specifications
G09615739Courtesy of NISSAN NORTH AMERICA, INC.
