Connector End Views

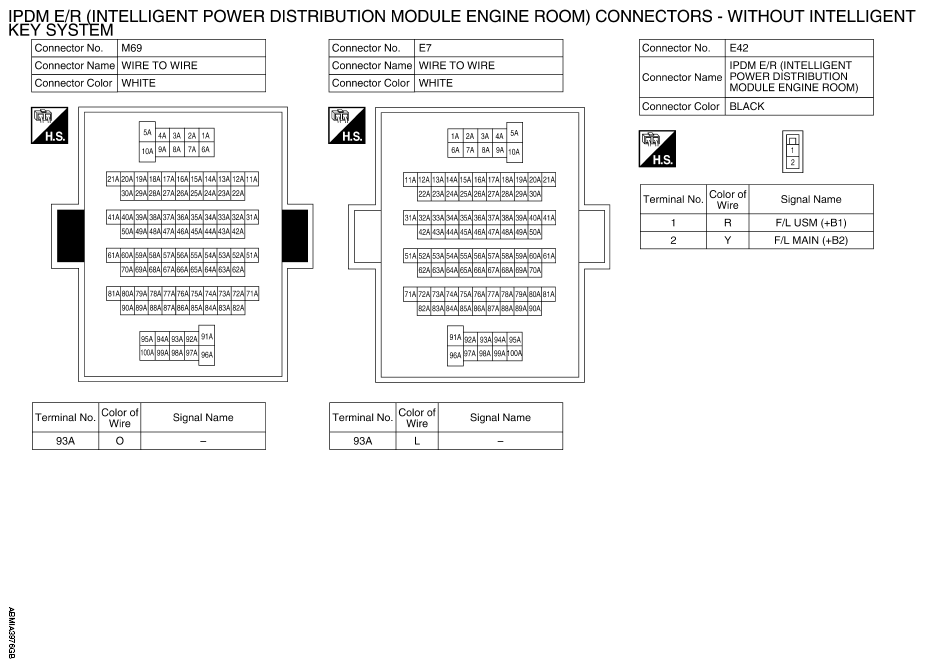

Fig 1: IPDM E/R Connectors End View (1 Of 3)
G09052729Courtesy of NISSAN NORTH AMERICA, INC.

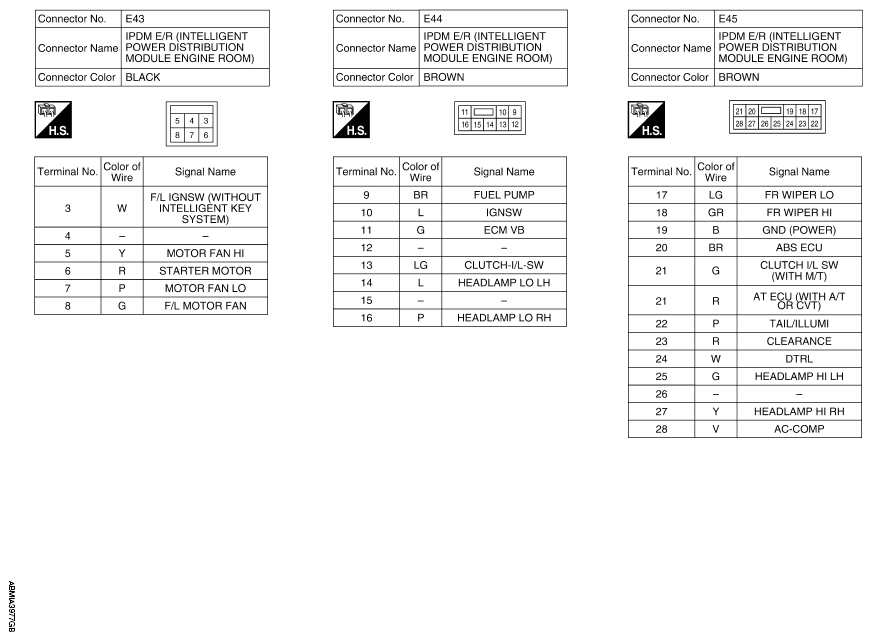

Fig 2: IPDM E/R Connectors End View (2 Of 3)
G09052730Courtesy of NISSAN NORTH AMERICA, INC.

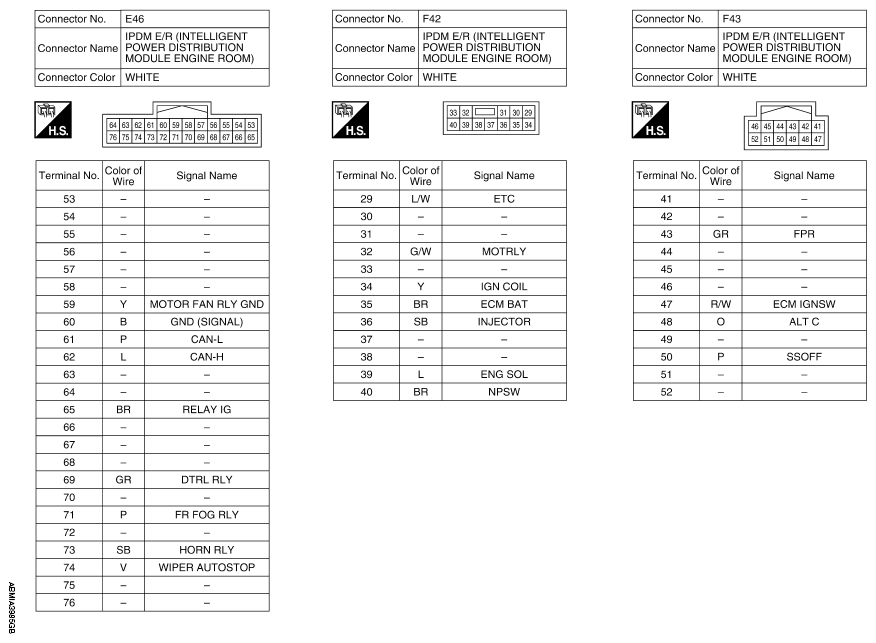

Fig 3: IPDM E/R Connectors End View (3 Of 3)
G09052731Courtesy of NISSAN NORTH AMERICA, INC.
