ECM Connector End View (F10)
ECM Connector End View (F10)

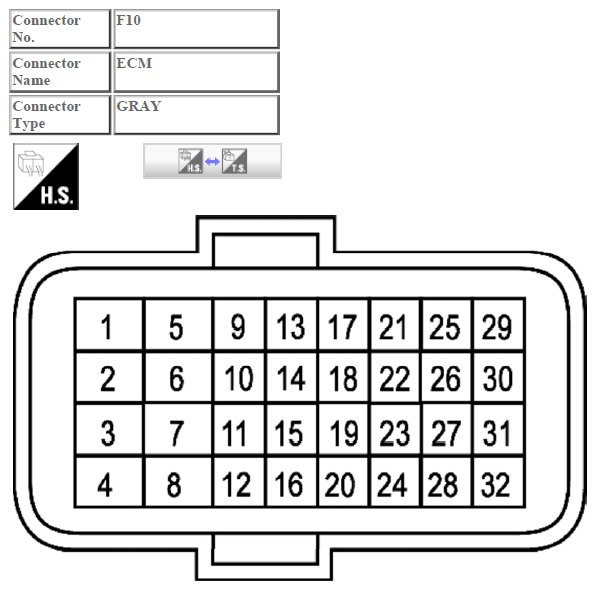

Fig 1: ECM Connector End View (F10)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
