Section 2 (Clutch)
>>
Removal And Installation
>>
Clutch Piping
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

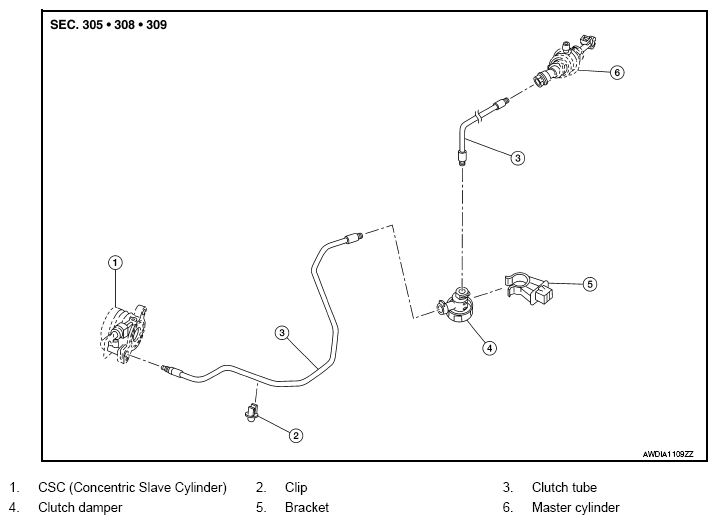

Fig 1: Exploded View Of Clutch Piping
Courtesy of NISSAN NORTH AMERICA, INC.
