Brakes
>>
Traction Control
>>
Brake Control System
>>
Wiring Diagram
>>
Brake Control System
>>
Connector End Views
Connector End Views

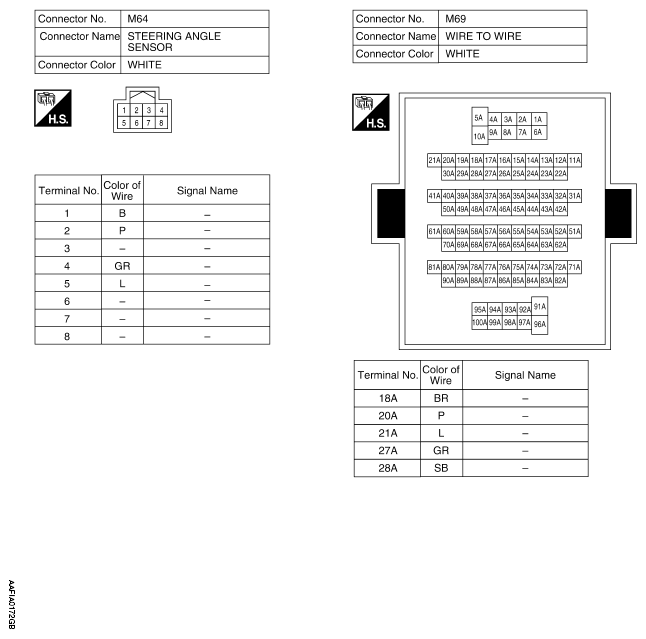

Fig 1: Brake Control System Connector End View (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

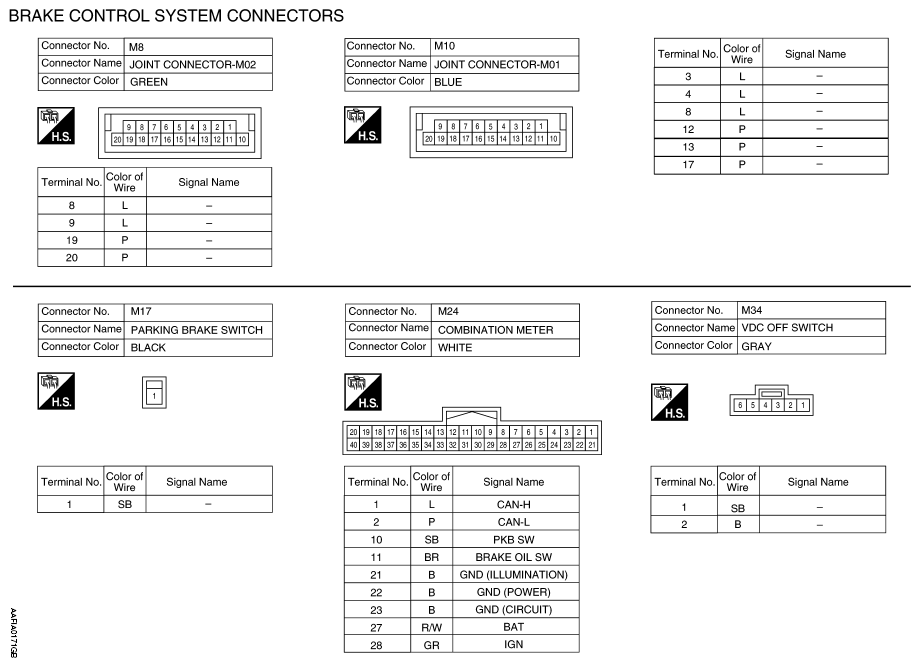

Fig 2: Brake Control System Connector End View (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

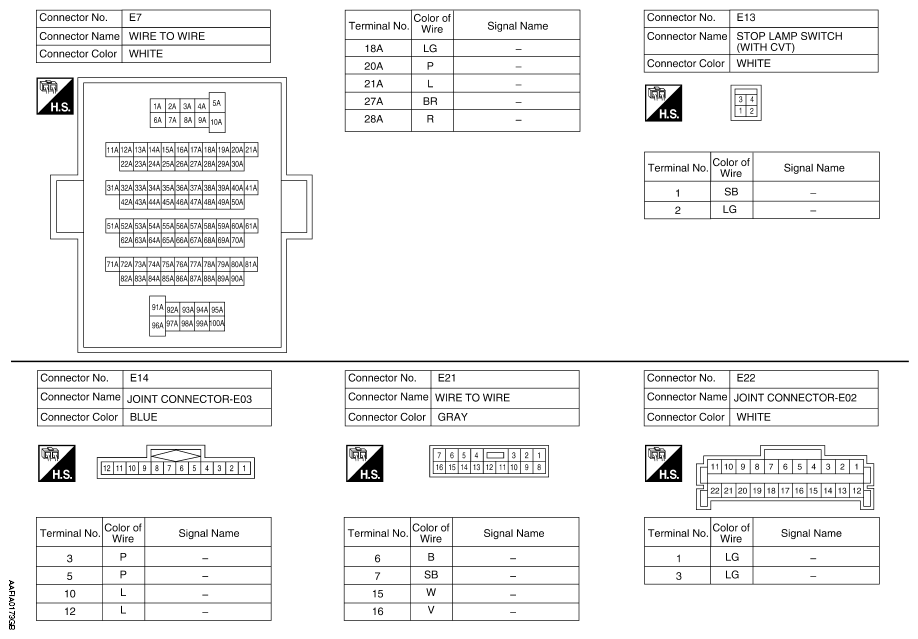

Fig 3: Brake Control System Connector End View (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

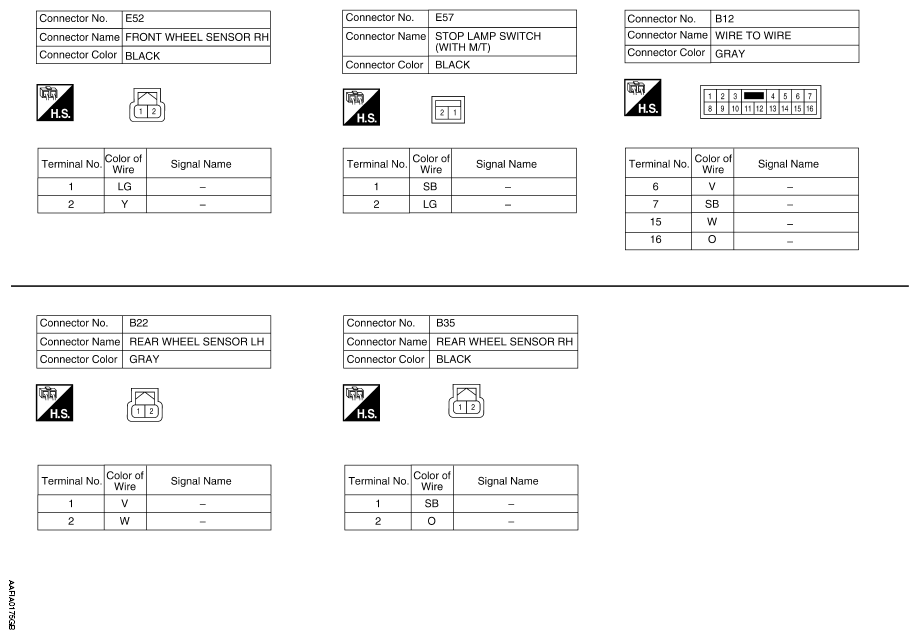

Fig 4: Brake Control System Connector End View (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

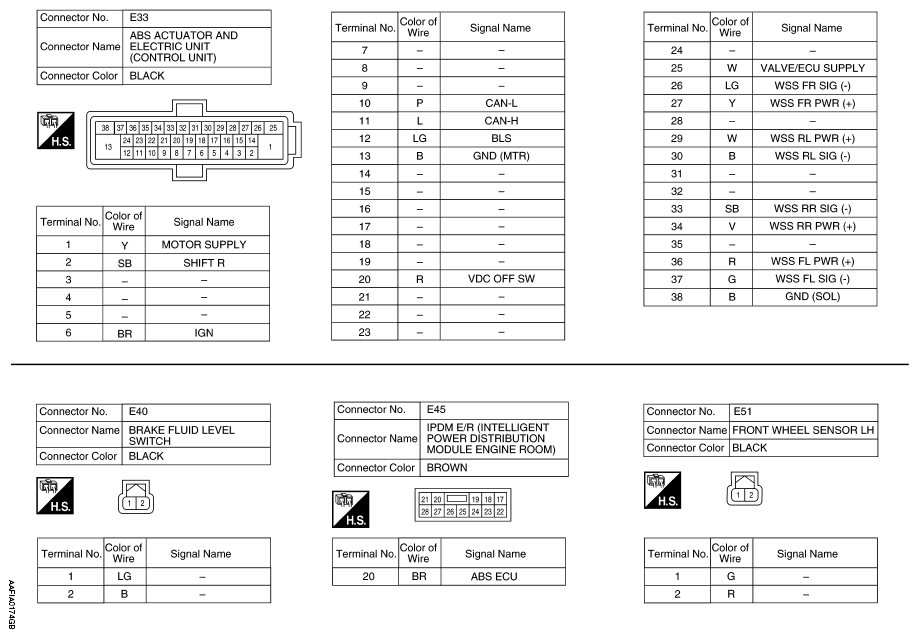

Fig 5: Brake Control System Connector End View (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
