Connector End View

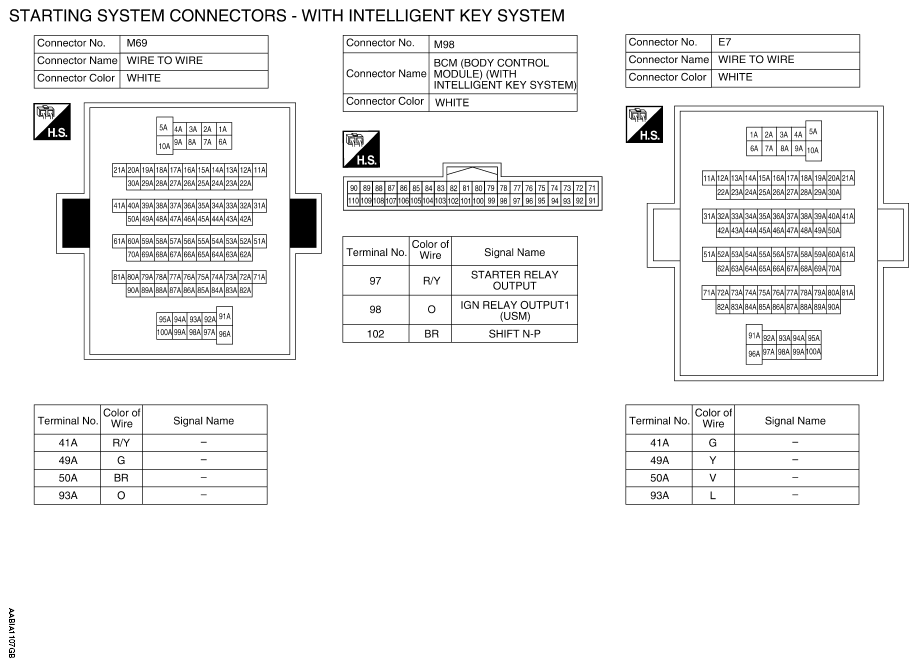

Fig 1: Starting System Connector End View (With Intelligent Key; 1 Of 5)
G09617839Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Starting System Connector End View (With Intelligent Key; 2 Of 5)
G09617840Courtesy of NISSAN NORTH AMERICA, INC.

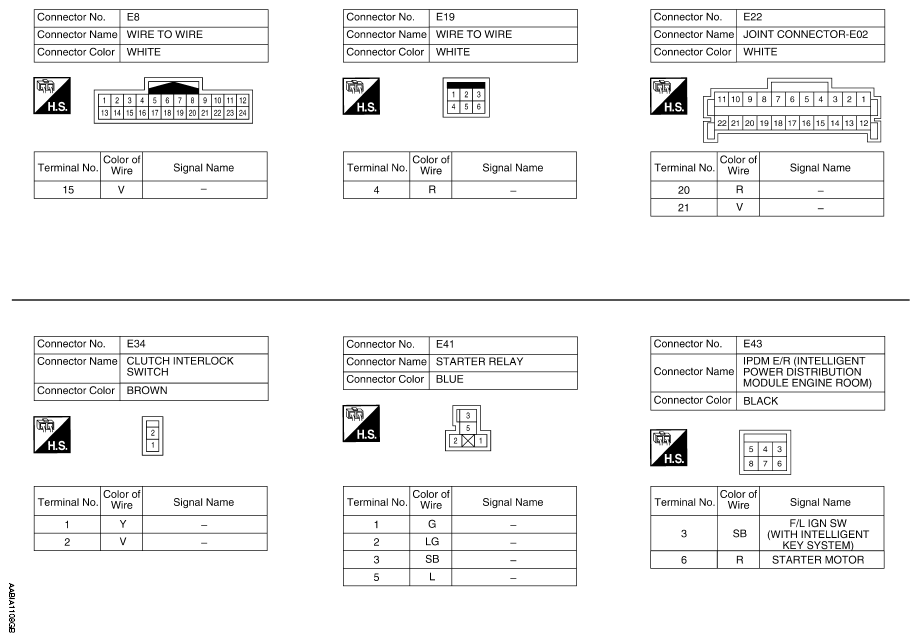

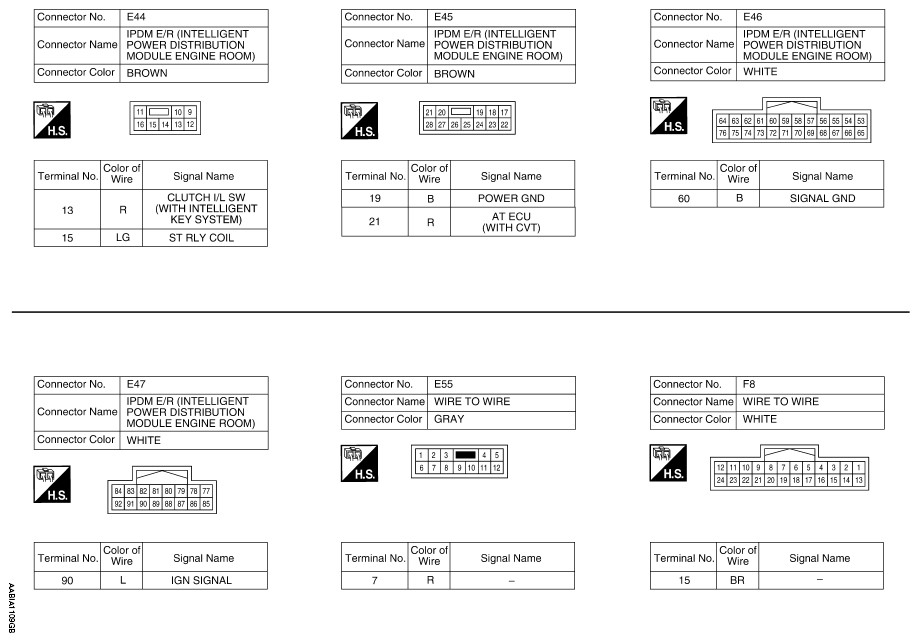

Fig 3: Starting System Connector End View (With Intelligent Key; 3 Of 5)
G09617841Courtesy of NISSAN NORTH AMERICA, INC.

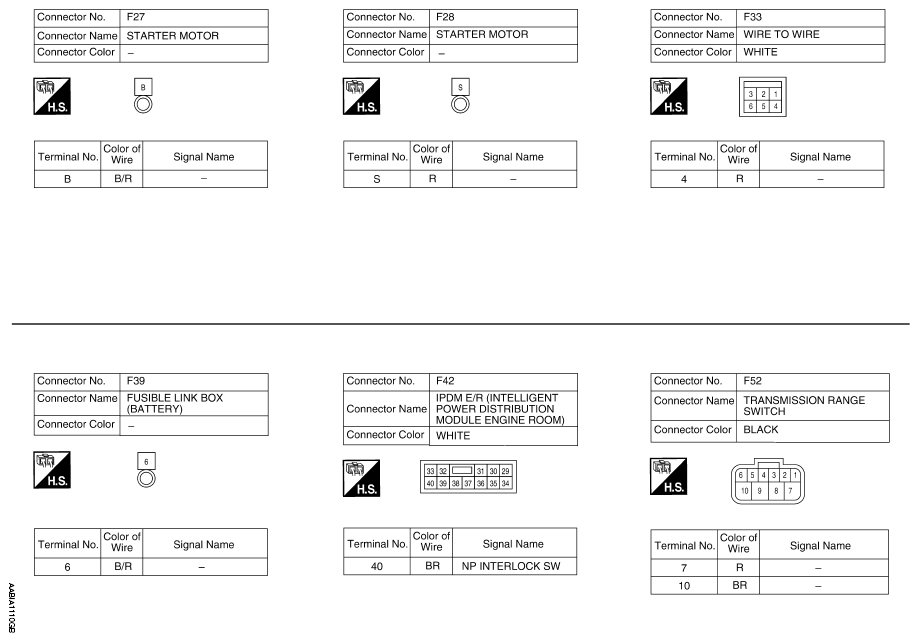

Fig 4: Starting System Connector End View (With Intelligent Key; 4 Of 5)
G09617842Courtesy of NISSAN NORTH AMERICA, INC.

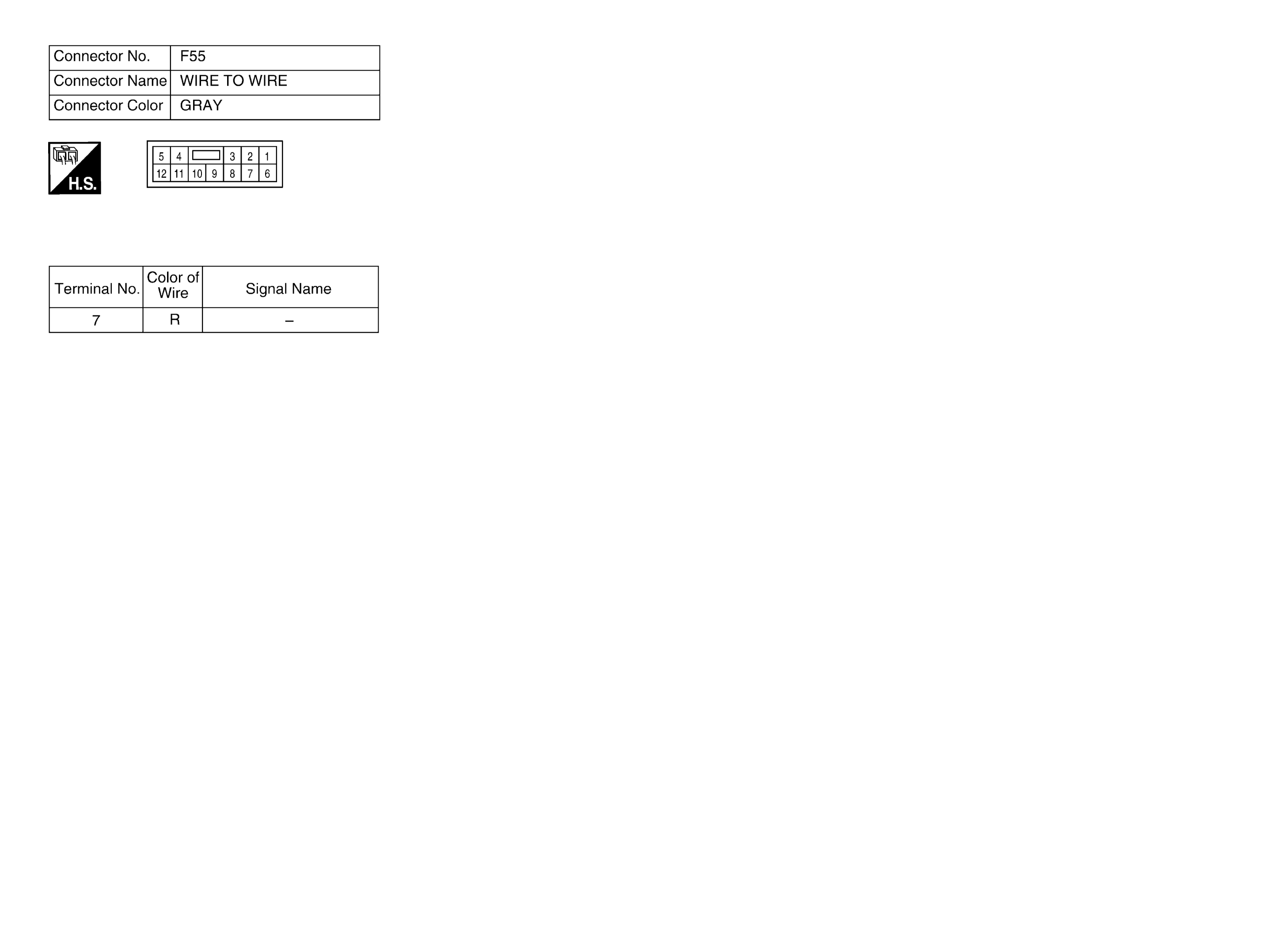

Fig 5: Starting System Connector End View (With Intelligent Key; 5 Of 5)
G09617843Courtesy of NISSAN NORTH AMERICA, INC.

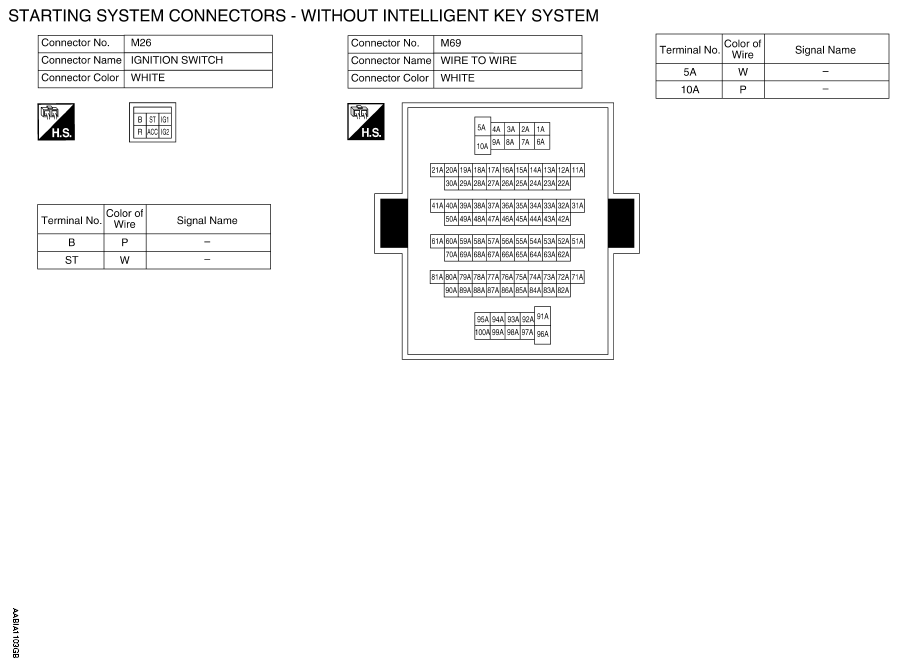

Fig 1: Starting System Connector End View (Without Intelligent Key; 1 Of 4)
G09617845Courtesy of NISSAN NORTH AMERICA, INC.

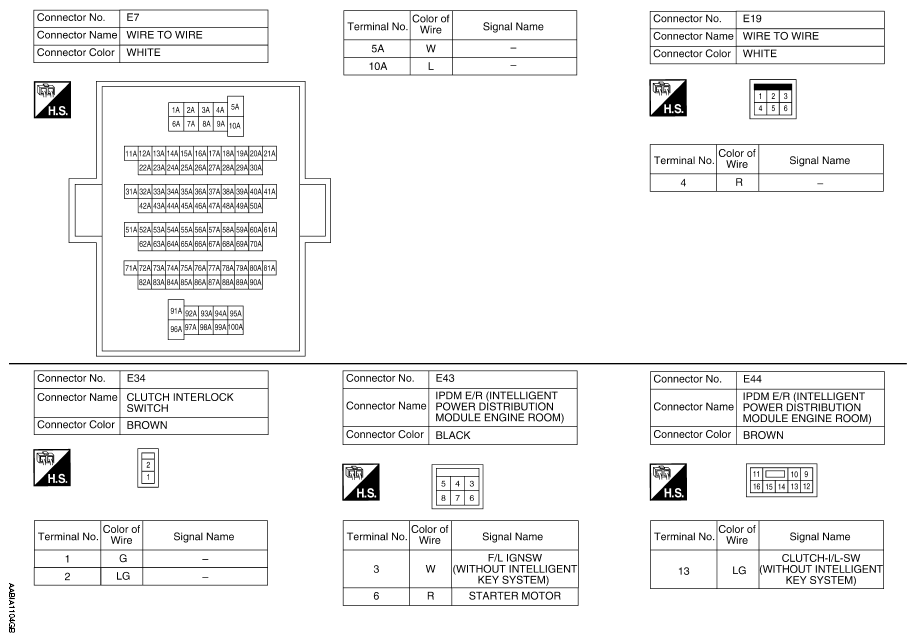

Fig 2: Starting System Connector End View (Without Intelligent Key; 2 Of 4)
G09617846Courtesy of NISSAN NORTH AMERICA, INC.

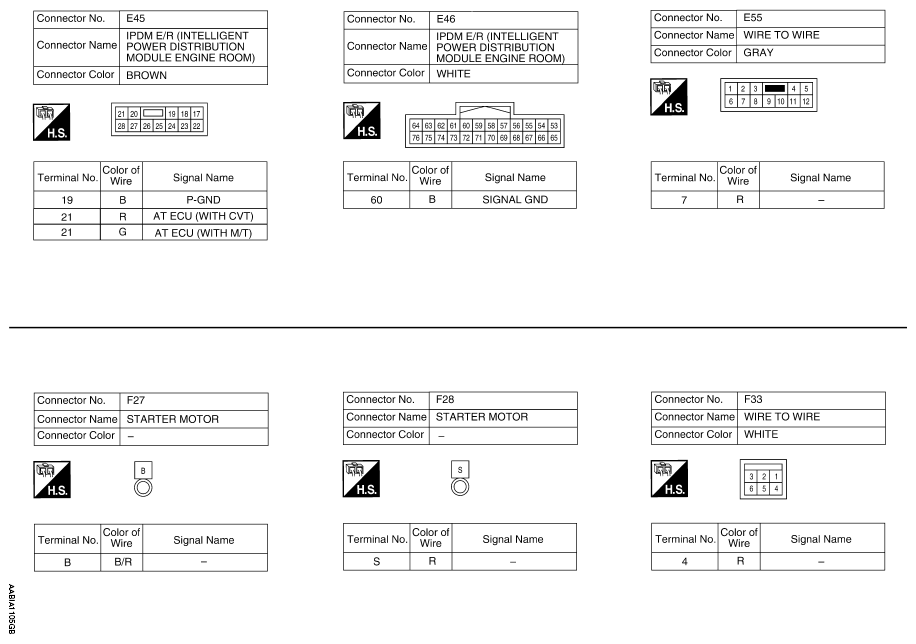

Fig 3: Starting System Connector End View (Without Intelligent Key; 3 Of 4)
G09617847Courtesy of NISSAN NORTH AMERICA, INC.

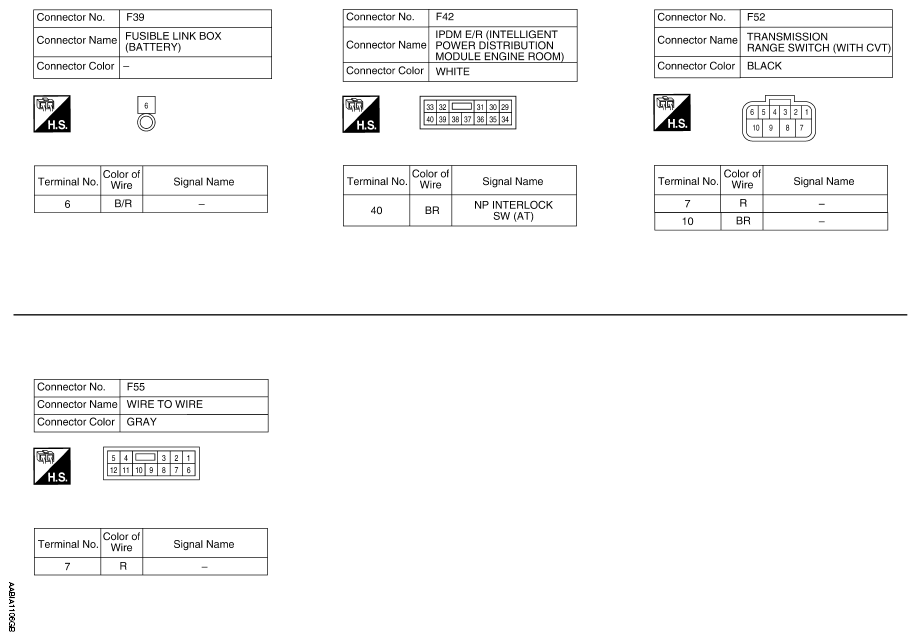

Fig 4: Starting System Connector End View (Without Intelligent Key; 4 Of 4)
G09617848Courtesy of NISSAN NORTH AMERICA, INC.
