Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

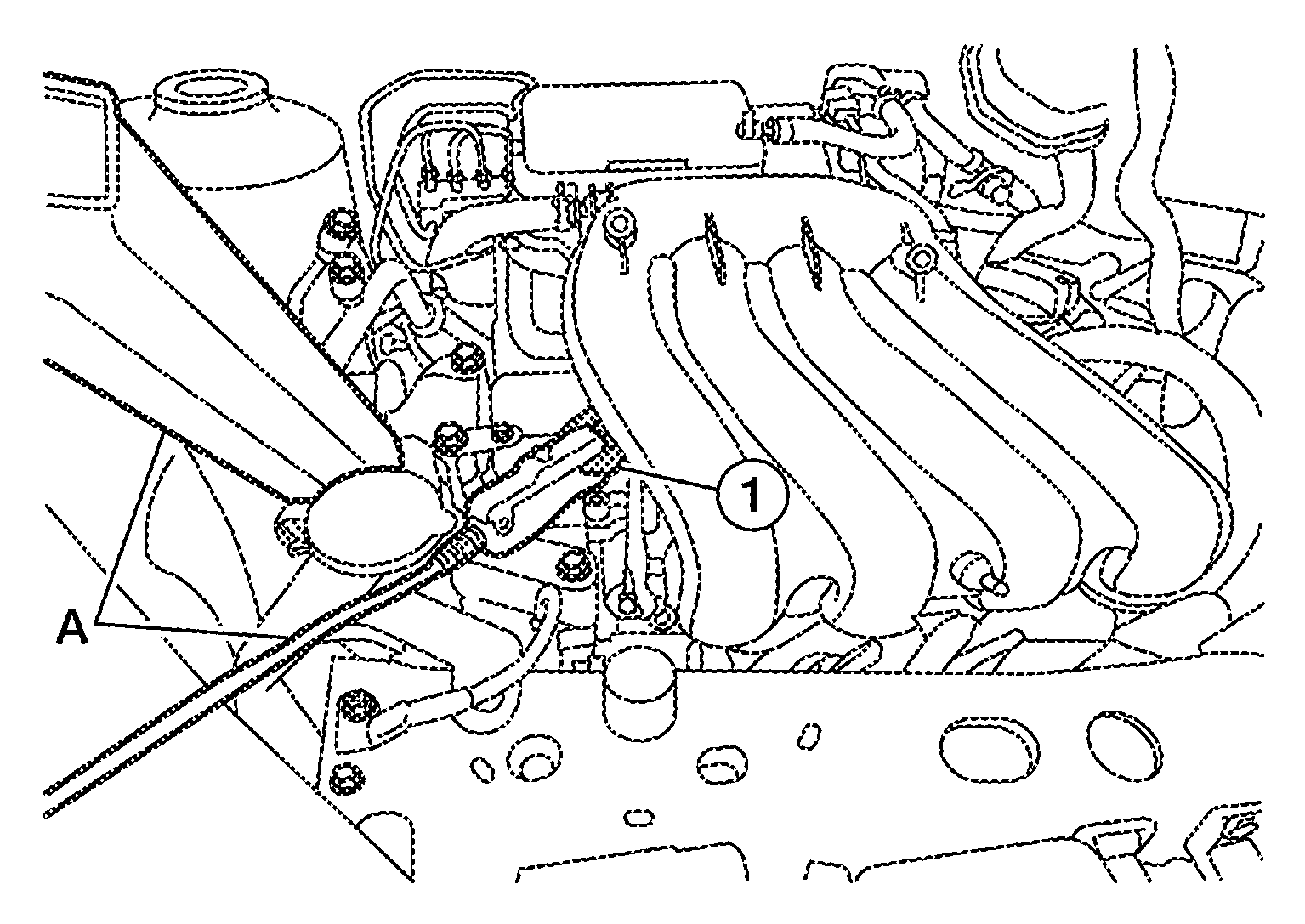

    1. Attach timing light (A) to loop wire (1) as shown in the figure.
      Fig 1: Attaching Timing Light To Loop Wire
      G09617777Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.
      Fig 2: Identifying Timing Indicator
      G06537506Courtesy of NISSAN NORTH AMERICA, INC.

      : INSPECTION END
