Home
>>
Nissan-Datsun
>>
2014
>>
Versa Note S, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Removal And Installation
>>
Oil Pump
>>
Exploded View
Exploded View

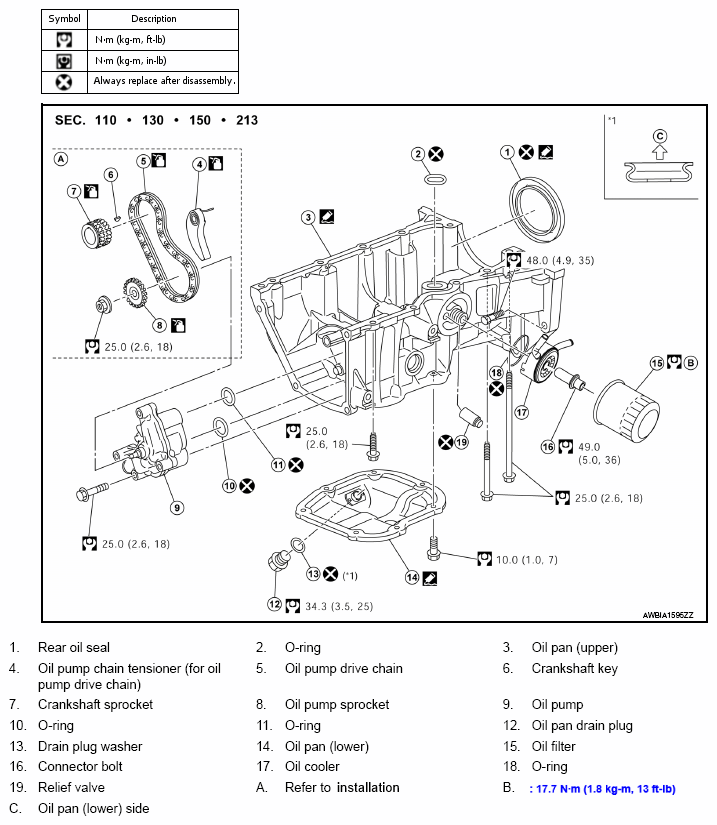

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
