Nissan-Datsun
>>
2014
>>
Versa Note S, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (IPDM/Er) (With I-Key)
>>
System Description
>>
System
>>
Relay Control System
>>
RELAY CONTROL SYSTEM: System Description
>>
System Diagram
System Diagram

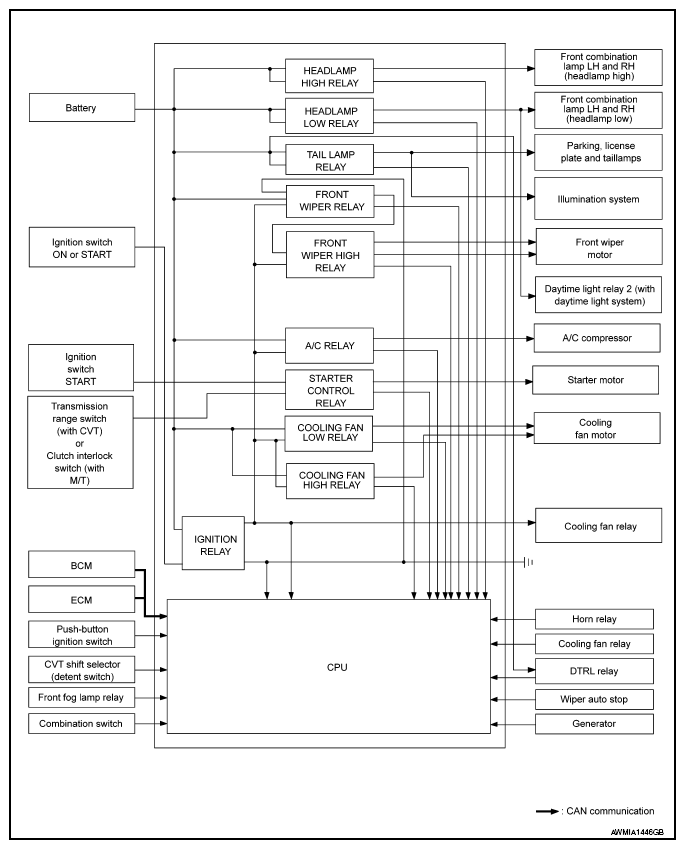

Fig 1: Relay Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
