Exploded View

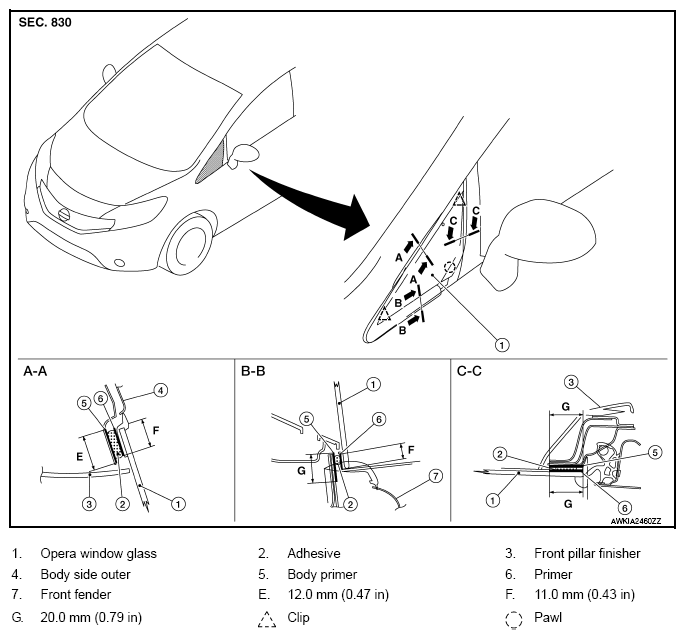

Fig 1: Exploded View Of Opera Window

G09604503

Courtesy of NISSAN NORTH AMERICA, INC.
