Exploded View

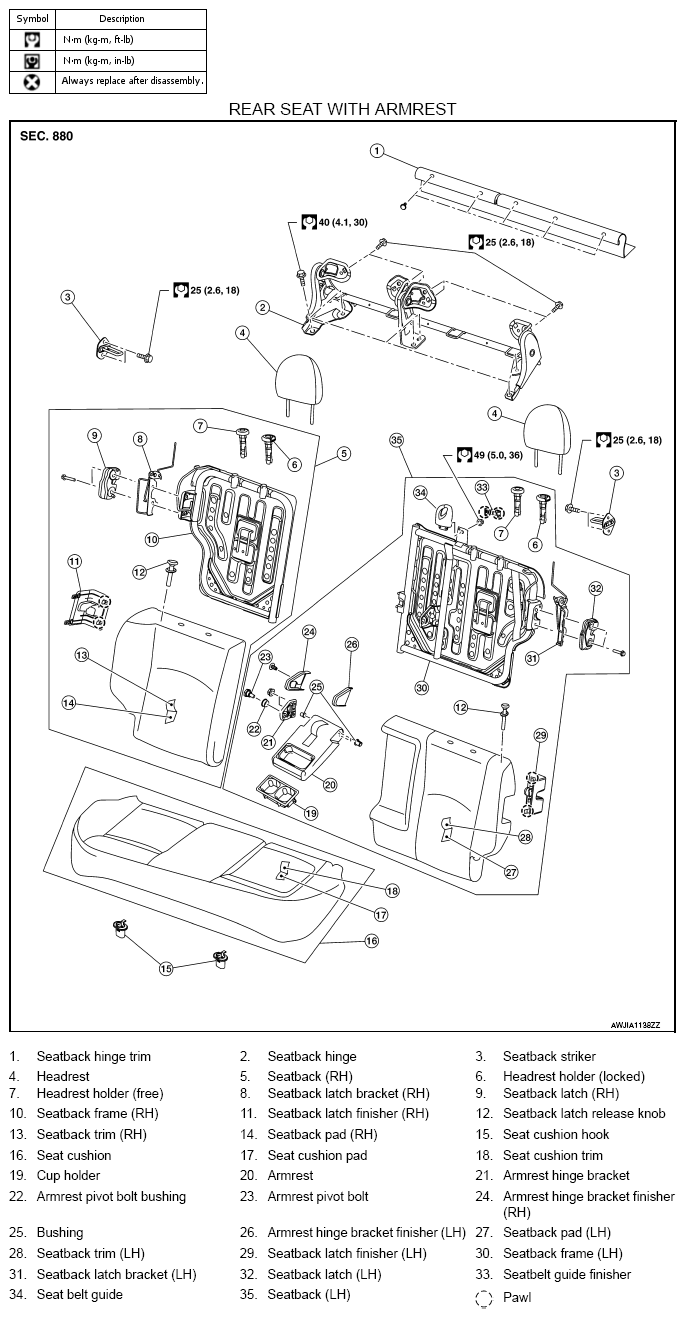

Fig 1: Exploded View Of Rear Seat (With Armrest) With Torque Specifications
G09604100Courtesy of NISSAN NORTH AMERICA, INC.

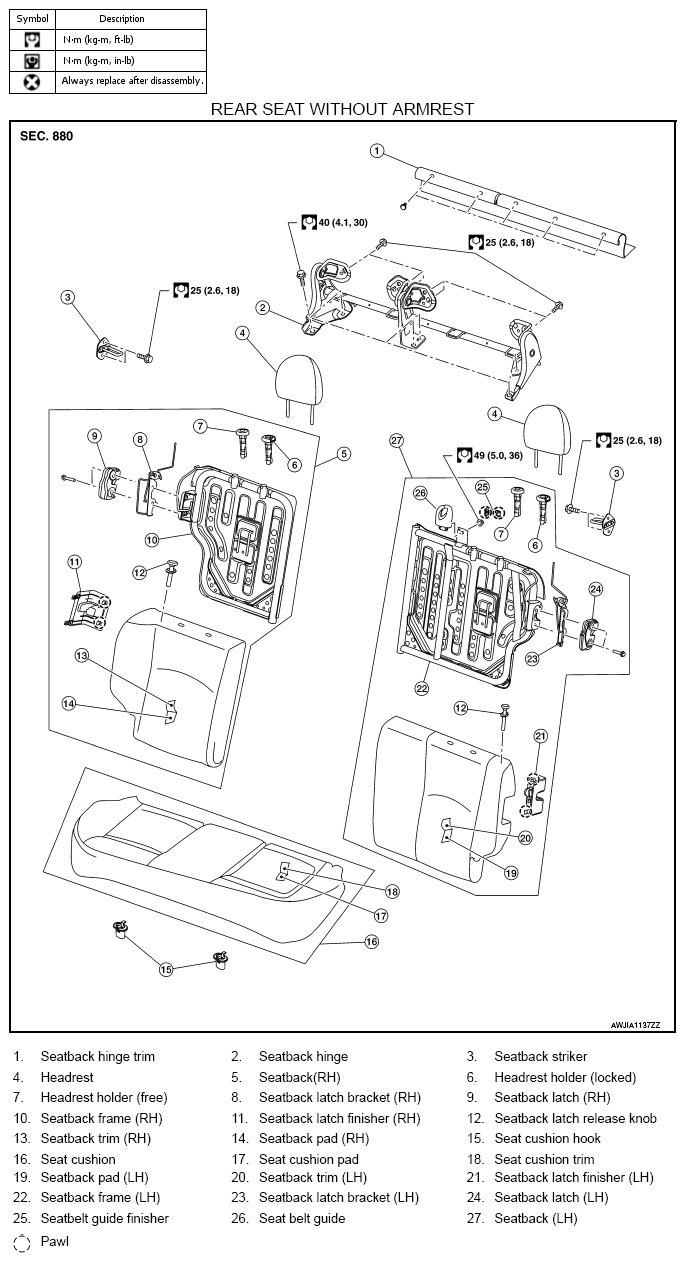

Fig 2: Exploded View Of Rear Seat (Without Armrest) With Torque Specifications
G09604101Courtesy of NISSAN NORTH AMERICA, INC.
