Connector End Views

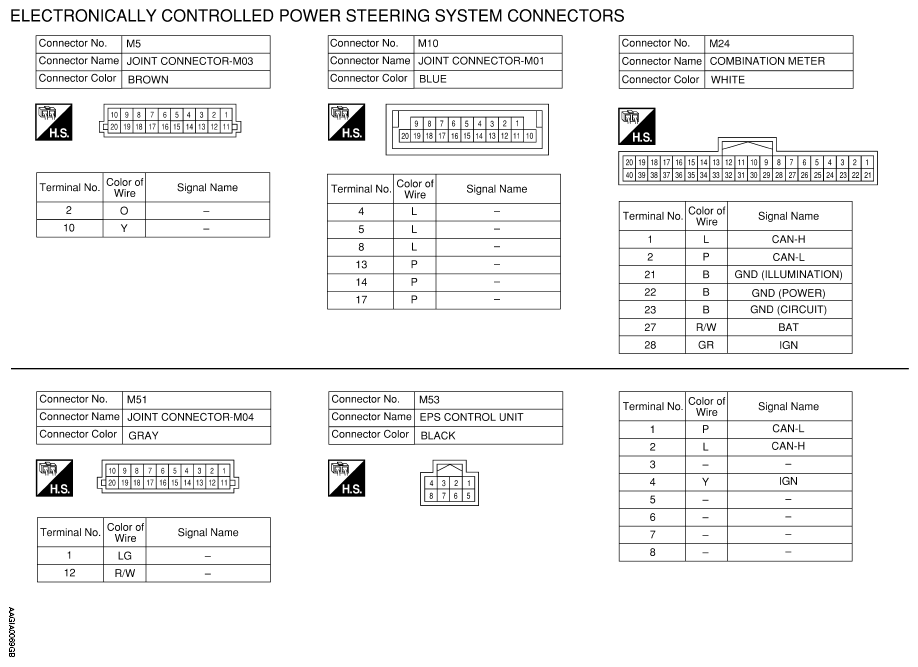

Fig 1: Electronically Controlled Power Steering System Connector End View (1 Of 3)
G09618463Courtesy of NISSAN NORTH AMERICA, INC.

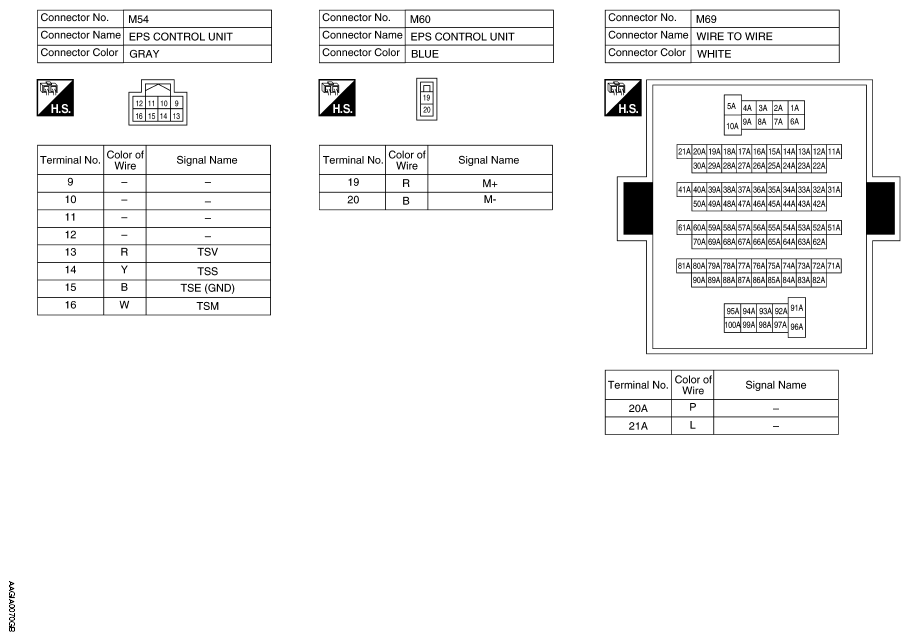

Fig 2: Electronically Controlled Power Steering System Connector End View (2 Of 3)
G09618464Courtesy of NISSAN NORTH AMERICA, INC.

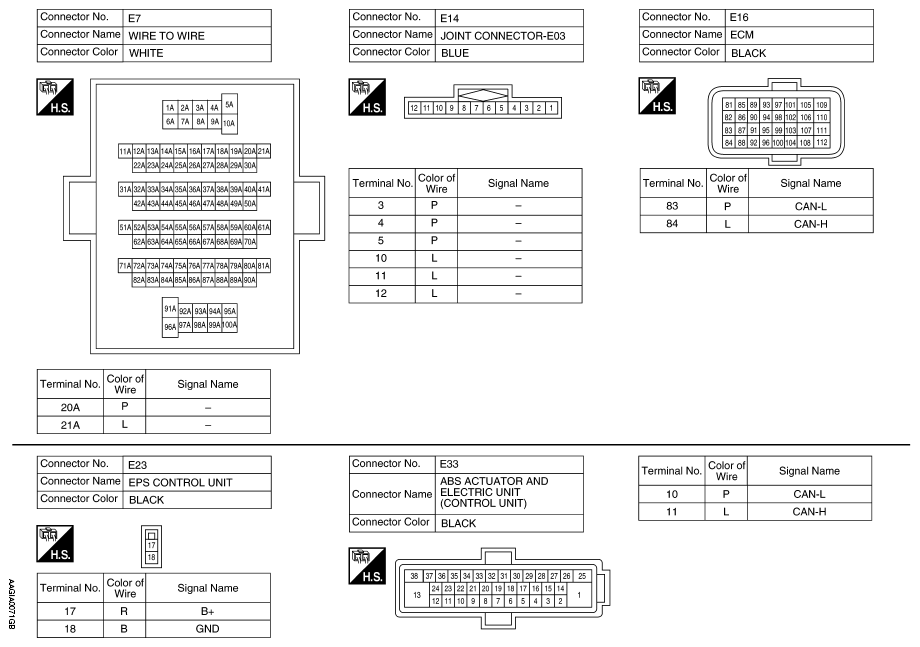

Fig 3: Electronically Controlled Power Steering System Connector End View (3 Of 3)
G09618465Courtesy of NISSAN NORTH AMERICA, INC.
